Crimp 4 gauge wire is a process of compressing a conductor to make electrical contact. This is done by using a tool to compress the wire against an electronic device or another piece of metal. The amount of pressure and type of device used will determine the quality of the connection.
As anyone who has ever worked with 4 gauge wire knows, crimping is an essential part of the process. There are a few different ways to crimp 4 gauge wire, but the most important thing is to ensure that you do it correctly. In this blog post, You will learn in detail how to crimp 4 gauge wire.
Step by Step Processes for How to Crimp 4 Gauge Wire
Step 1: Strip the Insulation
Start by stripping the insulation off of the end of the wire. You’ll need to remove about 3/4 inch of the plastic coating. You can use a wire stripper or a sharp knife to do this. If you’re using a wire stripper, place the tool around the insulation and then squeeze the handle to strip it away. If you’re using a knife, carefully run the blade along the length of the wire to remove the coating.
Step 2: Crimp the Ring Terminal
Next, take the ring terminal and place it over the end of the wire. Then, a pair of pliers squeeze the terminal tightly around the wire. Make sure that the metal tab points away from the wire’s end.
Step 3: Attach the Wire to the Battery Terminal

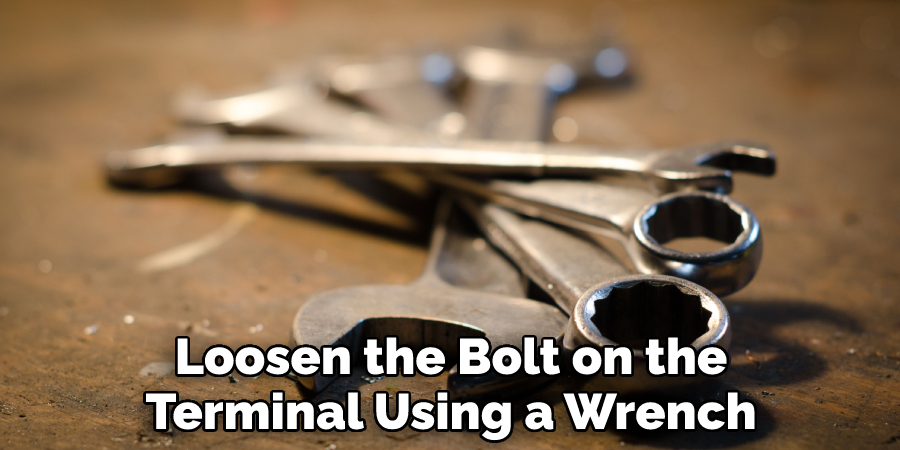

Now, you can attach the wire to the battery terminal. First, loosen the bolt on the terminal using a wrench. Then, slip the ring terminal over the bolt and tighten it back down. Be sure not to overtighten the bolt, or you could damage the wire.
Tips for How to Crimp 4 Gauge Wire
- Always use gloves when working with 4 gauge wire. The sharp edges of the wire can easily cut your skin.
- Make sure that the area you are working in is well-ventilated. The fumes from the burning insulation can be harmful to your health.
- Never leave the 4 gauge wire exposed to the elements. The wire will corrode quickly and can become a safety hazard.
- Always use appropriate tools when working with 4 gauge wire. Using the wrong tool can damage the wire and create a safety hazard.
- Ensure that the clamps you use are rated for 4 gauge wire. Using the wrong clamp can damage the wire and create a safety hazard.
- Always use the proper size fuses when working with 4 gauge wire. Using the wrong size fuse can damage the wire and create a safety hazard.
- Ensure that the switches you are using are rated for 4 gauge wire. Using the wrong switch can damage the wire and create a safety hazard.
- Always use the proper size breakers when working with 4 gauge wire. Using the wrong size breaker can damage the wire and create a safety hazard.
- Never try to repair the 4 gauge wire yourself. Always call a professional to do the job for you.
- Follow all safety guidelines when working with 4 gauge wire. Ignoring the safety guidelines can result in serious injury or death.
What Are the Benefits of Using 4 Gauge Wire Over Other Sizes?
There are a few reasons why you might want to use 4 gauge wire over other sizes. First, it can handle more power than smaller wires. This is important if you’re running high-powered equipment that needs a lot of electricity to operate.
Second, it’s less likely to overheat than smaller wires. This is because the wire’s larger diameter helps dissipate heat more effectively. Finally, it’s also more flexible than larger wires, which makes it easier to work with and route through tight spaces.
If you’re looking for a wire that can handle a lot of power and won’t overheat, a 4 gauge wire is a good option. It’s also more flexible than other sizes, which makes it easier to work with. Consider these benefits when choosing the right size wire for your project.
How Do You Make Sure That You’re Crimping the Wire Correctly?
This is a question we get asked a lot, and it’s important. Crimping the wire incorrectly can lead to electrical problems, and in some cases, it can be dangerous. There are a few things that you can do to make sure that you’re crimping the wire correctly.

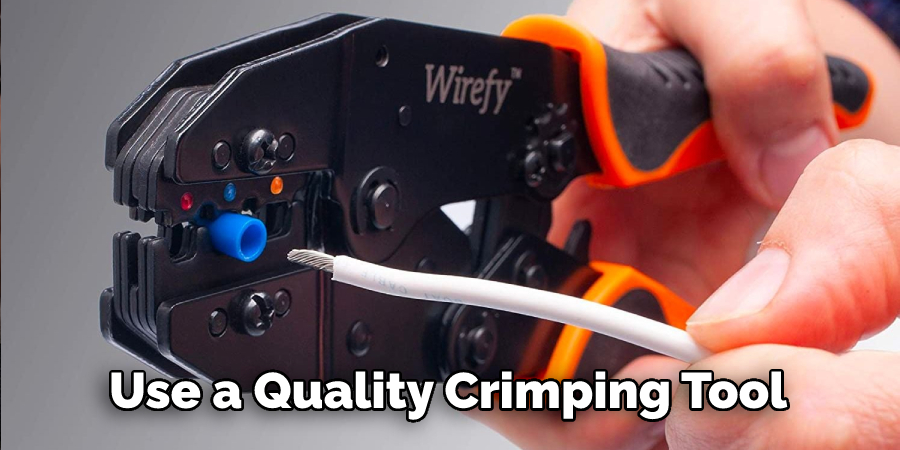

First, use a quality crimping tool. There are a lot of cheap tools on the market, but they won’t provide a good connection. Second, ensure the wires are clean and debris-free before you crimp them. Third, use the correct size die for the wire gauge that you’re working with.
Finally, don’t overtighten the die. Just snug it up until the wires are securely locked in place. If you follow these steps, you should be able to crimp the wire correctly every time.
What Are Some Common Mistakes People Make When Crimping 4 Gauge Wire?
One common mistake is not using the correct size die. Another common mistake is not properly stripping the wire before crimping. Improperly stripping the wire can cause the connection to be less secure, and it can also lead to shorts or other electrical problems. Finally, people sometimes do not apply enough pressure when crimping, leading to less secure connections or electrical problems.
Conclusion
Crimping 4 gauge wire is not as difficult as it may seem. Anyone can do it with the right tools and a little practice. The advantages of crimping 4 gauge wire are that it is very strong and durable and will not come loose over time. The disadvantages of crimping 4 gauge wire are that it is slightly more difficult to work with than other types of wire and is also more expensive.
Coping a 4 gauge wire is a great way to ensure that your electrical connections are strong and lasting. I hope this article has been beneficial for learning how to crimp 4 gauge wire. Make Sure the precautionary measures are followed chronologically.
