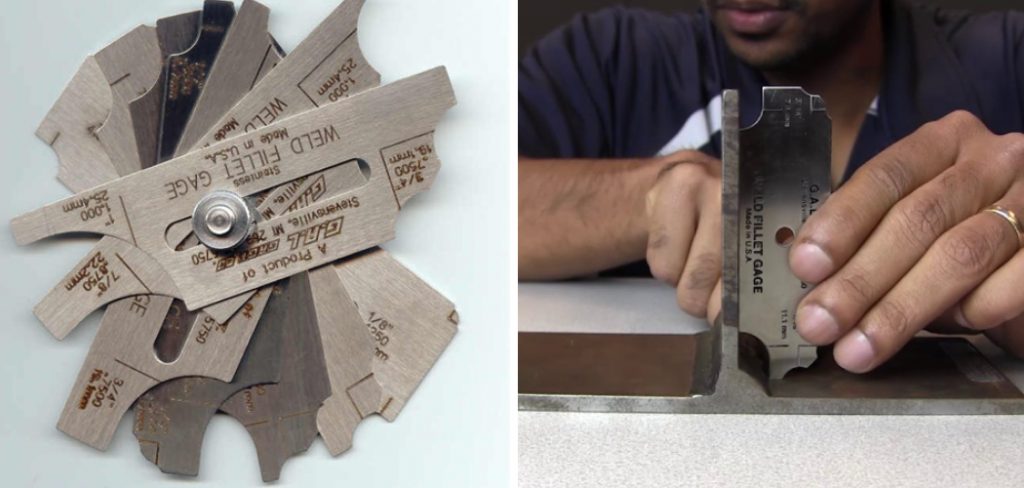

A fillet weld gauge is a measuring tool used by welders to check the size of a fillet weld. It is important to use the correct size gauge when checking the size of a fillet weld, as using the incorrect gauge can result in an inaccurate measurement.
There are two main types of fillet weld gauges: those with prongs and those without prongs. The type of gauge you use will depend on the width of the fillet weld you are measuring.
For example, if you are measuring a wide fillet weld, you must use a gauge with prongs. To use a fillet weld gauge, simply place the tool against the weld’s surface and compare the weld’s size to the markings on the gauge.
It is important to take multiple measurements at different points along the length of the weld, as fillet welds can vary in size. Once you have taken all of your measurements, consult a welding chart to determine the final size of your fillet weld. In this blog post, You will learn in detail how to use a fillet weld gauge.
Step-by-Step Processes for How to Use a Fillet Weld Gauge
Step 1: Determine the Leg Size

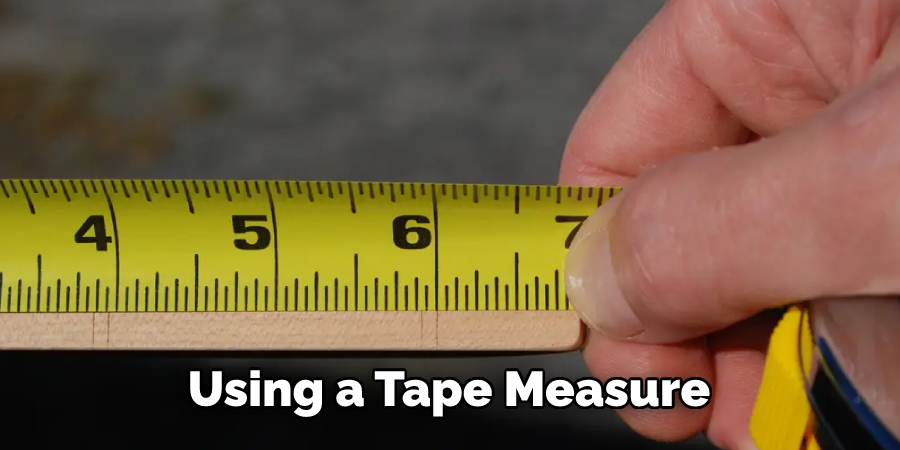

The first step is to determine the leg size. The leg size is the measurement from the weld’s root to the weld’s face. This can be done by using a tape measure or ruler.
Step 2: Select the Appropriate Fillet Weld Gauge

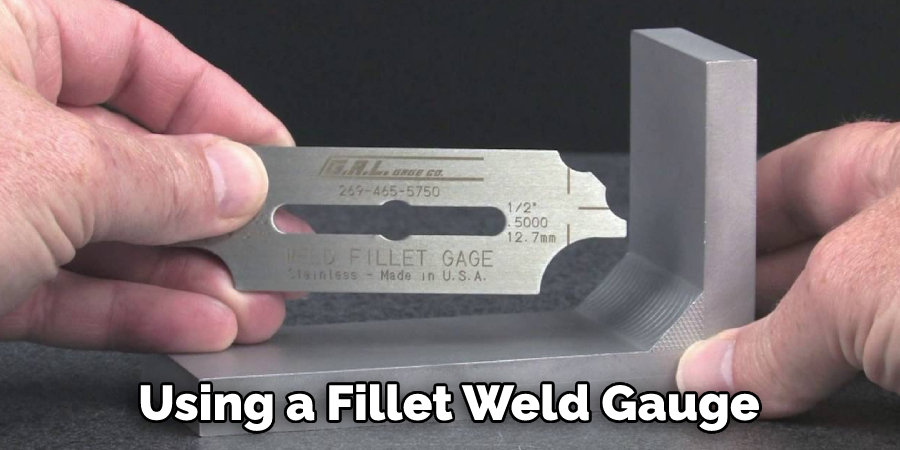

Once you have determined the leg size, you must select the appropriate fillet weld gauge. There are various sizes of fillet weld gauges available on the market. Once you have selected the appropriate fillet weld gauge, you will need to place it at the root of the weld. The root is the point where the two pieces of metal come together.
Step 3: Measure the Thickness of the Weld
Once you have placed the fillet weld gauge at the root of the weld, you will need to measure the thickness of the weld. The thickness is the measurement from the root to the face of the weld. This can be done by using a tape measure or ruler.
Step 4: Compare the Measurement to the Size Chart
Once you have measured the thickness of the weld, you will need to compare it to the size chart on the fillet weld gauge. The size chart is used to determine the welding classification. After you have compared the measurement to the size chart, you will need to select the appropriate welding classification. The welding classification is based on the thickness of the weld.
Step 5: Determine the Length of the Weld
The next step is to determine the length of the weld. The length is the measurement from the root to the end of the weld. This can be done by using a tape measure or ruler. Once you have determined the weld length, you will need to compare it to the size chart on the fillet weld gauge. The size chart is used to determine the welding classification.
Step 6: Select the Appropriate Welding Classification
After you have compared the measurement to the size chart, you will need to select the appropriate welding classification. The welding classification is based on the length of the weld. The final step is to determine the size of the weld. The size is the measurement from the root to the face of the weld. This can be done by using a tape measure or ruler.
Tips for How to Use a Fillet Weld Gauge
- Always wear the proper personal protective equipment when using a fillet weld gauge. This includes eye protection, gloves, and a respirator if needed.
- Inspect the fillet weld gauge before each use to ensure that it is in good condition and free of any damage.
- Be sure to set up your work area in a well-ventilated area to avoid fumes and dust.
- When measuring a fillet weld, always use the longest leg of the gauge.
- Place the fillet weld gauge at the root of the weld and measure from there.
- Always take multiple measurements to ensure accuracy.
- Be sure to clean the fillet weld gauge after each use.
- Store the fillet weld gauge in a safe place when not in use.
- Inspect your work area regularly for any potential hazards.
- Follow all safety rules and regulations when using a fillet weld gauge.

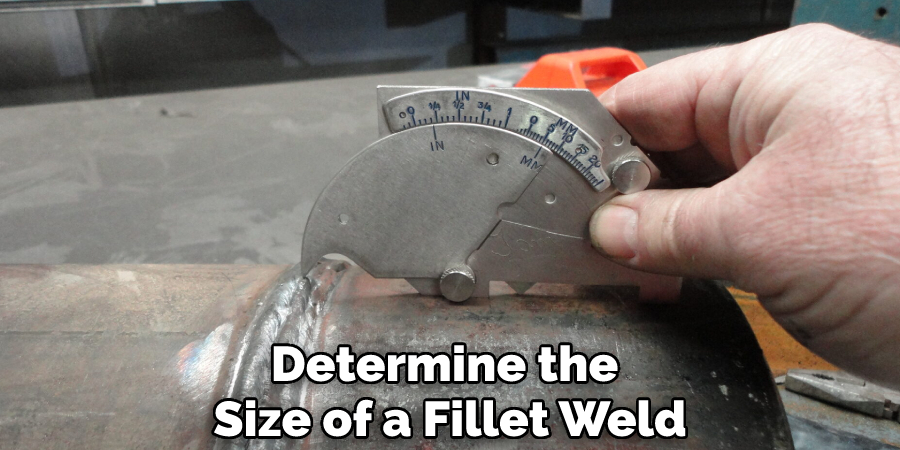

How Do You Determine the Size of a Fillet Weld?
To determine the size of a fillet weld, you will need to use a fillet weld gauge. This tool is used to measure the size of a weld. There are two types of fillet weld gauges: one type is used to measure the leg length, and the other type is used to measure the throat thickness.
The leg length is the distance from the root of the weld to the face of the weld. The throat thickness is the distance from the root of the weld to the point where the two plates meet. To find the size of a fillet weld, you will need to measure both the leg length and throat thickness.
To use a fillet weld gauge, first, identify the type of weld you are measuring. Next, select the appropriate gauge for the measurement you need to take. Place the gauges on either side of the weld, and align them, so they are parallel. Finally, take your measurements and record them.
When using a fillet weld gauge, it is important to ensure that the gauges are properly aligned. If they are not, your measurements will not be accurate. Additionally, make sure that you take multiple measurements and average them together. This will help to ensure that your final measurement is as accurate as possible.
How Do You Ensure That the Weld is Properly Positioned?
The first thing you need to do is find the throat size of the weld that you will be making. The throat size is the distance between the two legs of the weld. Once you have found the throat size, you need to find a fillet weld gauge that matches that size.
Once you have found the right-sized fillet weld gauge, you need to position it so that the legs of the gauge are on either side of the weld. The legs of the gauge should be touching the metal just like the weld will be.

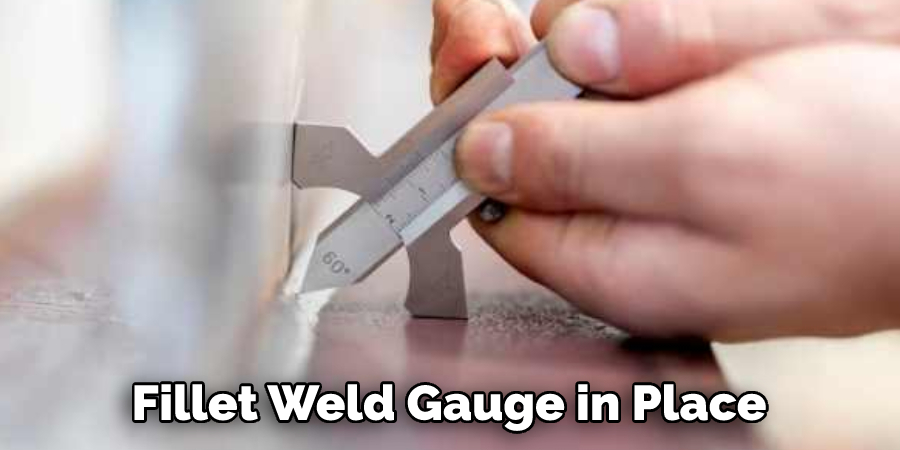

Once you have the fillet weld gauge in place, you can start welding. As you weld, ensure the weld puddle stays within the gauge. If it starts to get too close to the edge of the gauge, it means that the weld is getting too close to the edge of the metal and needs to be adjusted.
Using a fillet weld gauge is the best way to ensure that your welds are properly positioned. Take your time and be precise when using the gauge; your welds will always turn out great.
You Can Check It Out Measure Inch Pounds Without A Torque Wrench
How Do You Avoid Creating Voids or Other Imperfections in the Weld?
To avoid creating voids or other imperfections in the weld, you must use a fillet weld gauge. This tool is designed to help you control the size and shape of the weld so that it meets all the necessary requirements. By using a fillet weld gauge, you can ensure that your weld is strong and will not fail under stress.
Once you have your fillet weld gauge, simply position it so that the arms of the gauge are touching the edges of the metal to be welded. Then, use the fillet weld gauge to trace the outline of the desired weld. Be sure to keep the arms of the gauge parallel to each other so that you create an even weld.
After you have traced the weld outline, remove the fillet weld gauge and begin welding. Be sure to follow the instructions that come with your welding machine so that you do not damage the metal or create a dangerous situation. If you are unsure about how to operate your welding machine, consult a professional before beginning.
You Can Check It Out Use Buttonhole Scissors
How Do You Properly Clean and Store Your Fillet Weld Gauge?
Use a soft cloth dampened with water and mild dish soap to clean your fillet weld gauge. Do not use any type of harsh chemicals or cleaners, as this can damage the surface of the gauge. Once you’ve cleaned the gauge, dry it off with a soft cloth and store it safely away from direct sunlight or heat.
To keep your fillet weld gauge in good condition, it’s important to calibrate it regularly. This ensures that the readings are accurate and that the gauge works properly. If you notice any damage or wear on the gauge, it’s best to replace it rather than try to repair it.
When using a fillet weld gauge, it’s important to follow all safety precautions. Always wear eye protection and gloves, and be sure to keep the gauge clean and in good condition. You’ll ensure accurate readings and safe use by taking proper care of your fillet weld gauge.
Conclusion
A fillet weld gauge is a simple yet essential tool for any welder. It measures the fillet weld size and the type of welding joint most commonly used in construction and fabrication. The gauge consists of two arms that are connected at a 90-degree angle. One arm has a scale that is used to measure the weld size, while the other arm is used to trace the outline of the weld.
By learning how to use this tool correctly, welders can help ensure that their welds are strong and durable. I hope this article has been beneficial in learning how to use a fillet weld gauge. Make Sure the precautionary measures are followed chronologically.
