Tracing coax cables with a multimeter is an important skill for anyone who wants to install and maintain their audio/visual equipment. Tracing coax cables allows you to quickly and accurately identify signal issues or wiring discrepancies without hiring a professional technician.
Tracing coax cables with a multimeter offers many advantages over trace testing with a tone generator. Multimeters allow you to measure both current and voltage, which means you can more accurately identify faults in the cable. In addition, a multimeter is much safer than an electric signal since it does not require any electricity to be sent through the cable. You can find step-by-step instructions on how to trace coax cable with multimeter in this blog article.
Tools You Will Need
- Multimeter
- Coax Cable
- Earphones or Headset
- Electrical Tape
- Wire Cutter/Stripper Tool
- Flashlight (optional)
- Non-Contact Voltage Detector (optional)
- Electrical Scissors
- Screwdriver or Hand Drill (optional)
Step by Step Processes for How to Trace Coax Cable With Multimeter
Step 1: Inspect the Coax Cable
Before you can trace the Coax Cable, inspect the coaxial cable for any visible signs of damage. Check for breaks or connection issues at both ends and repair them if necessary before continuing.
Step 2: Prepare Multimeter
Get a multimeter ready for use by setting it to an ohmmeter mode with a maximum resistance range of at least 1000 ohms per foot. Connect the multimeter to the coaxial cable’s center tap and outer shield with alligator clips or test leads. Make sure that any exposed metal is securely connected.

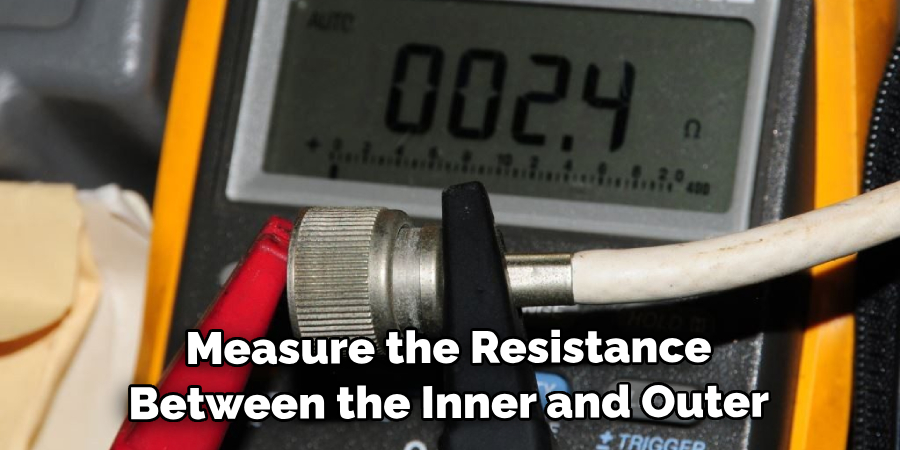

Step 3: Measure the Resistance of the Coax Cable
Using the multimeter, measure the resistance between the inner and outer conductors of the coaxial cable. This will tell you if the connection is good. If it’s too low, there may be a short or defect in the cable; if it’s too high, there could be a break in the wire somewhere.
Step 4: Check for Voltage Drop Along Cable Length
Using the multimeter, check for voltage drops along the length of the cable. If the voltage drops more than a few volts, a connection issue or defect may occur somewhere along the line. Using the multimeter in an ohmmeter mode, test for any current leaks from one side of the cable to the other. If any current is detected, the cable may have a short or defect.
Step 5: Look for Short Circuits
Using the multimeter, look for any short circuits by connecting one side of the cable to the ground and measuring the resistance between each conductor and the ground. If any resistance is detected, this could indicate a short circuit.
Using the multimeter, check for any open circuits by connecting one side of the cable to the ground and measuring the resistance between each conductor and the ground. If no resistance is detected, this could indicate an open circuit.
Step 6: Identify Defective Areas in Cable
Using the results from Steps 5 to 8, you should be able to identify any defective areas in the cable. Use this information to repair or replace any cable sections if necessary. Once repairs have been made, perform final tests using a multimeter to ensure all connections are correct and the cable is working correctly.
With these steps, you can now easily trace your coaxial cable with a multimeter. Remember always to keep safety in mind when dealing with any electrical equipment.
Precautions for How to Trace Coax Cable With Multimeter
- Always wear protective gloves and safety goggles when performing multimeter tests to shield yourself from potential electrical shocks.
- Do not attempt to trace a live cable; always disconnect the power supply before testing.
- Use only insulated tools when tracing or repairing coaxial cables, as non-insulated tools could cause a short circuit.
- Before starting any tests, all exposed metal is properly connected to the multimeter.
- Do not exceed the rated voltage on your multimeter when testing; always check the manufacturer’s instructions for reference.
- Contact a professional electrician for assistance if you encounter any connections or defects that cannot be repaired.
- Make sure to dispose of any defective parts appropriately; consult local regulations for more information.
By following these precautions and steps, you should be able to trace your coaxial cables with a multimeter safely. Remember always to stay safe when dealing with any electrical equipment.
What Are the Common Mistakes People Make When Tracing Cables With a Multimeter?
One of the most common mistakes people make when tracing a cable with a multimeter is not using the correct range. You may need to adjust the settings depending on the cable type.
Additionally, it’s essential to remember that an open circuit should read zero volts, while a short circuit should read full voltage. Failing to check for these readings could result in incorrect tracing.

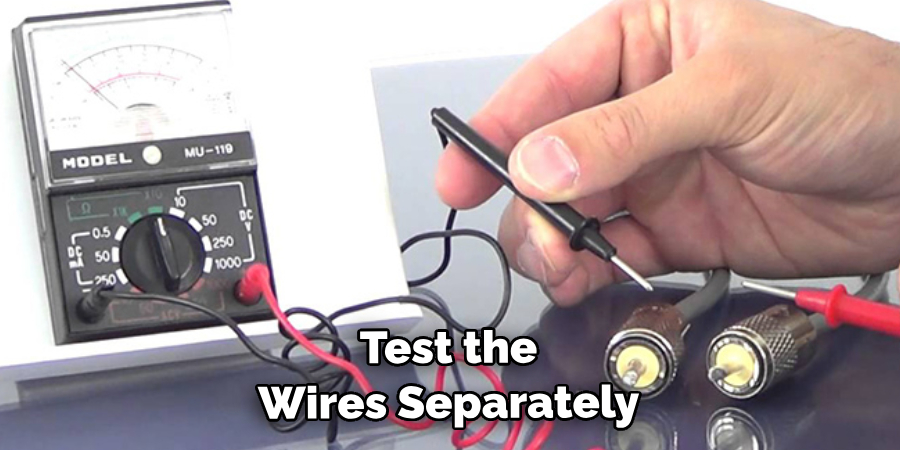

Another common mistake is not properly testing each wire. You should test the wires separately, rather than trying to trace them all at once. This will ensure accurate results when identifying which wire goes where in a multi-wire cable.
Finally, it’s important to remember that a multimeter cannot detect all types of faults in a cable. For example, it cannot detect insulation breakdown or corrosion. Therefore, if you’re experiencing erratic readings when tracing your cable, you should contact an experienced technician for further testing and troubleshooting.
What Are the Benefits of Tracing Coax Cables With a Multimeter?

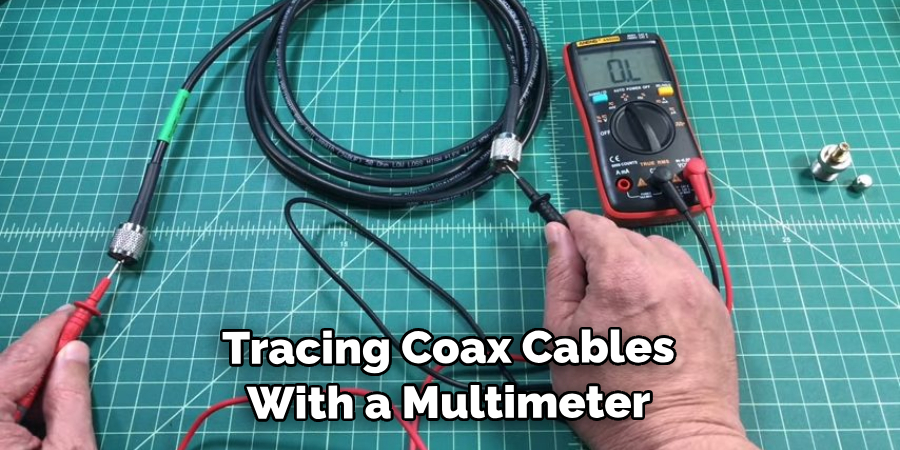

Tracing coax cables with a multimeter is one of the most efficient and cost-effective ways to identify which wire goes where in a multi-wire cable. Not only does it save time, but it also eliminates guesswork. Additionally, using a multimeter allows you to pinpoint any problems or faults in your coax cables quickly and accurately.
This method is beneficial for larger cables that contain numerous wires. With a multimeter, you can quickly identify which wire goes where without manually inspecting each one. Finally, tracing coax cables with a multimeter is relatively easy and doesn’t require special tools or knowledge. As long as you have basic knowledge of electronics and the right equipment, you can successfully trace your cable in no time.
How Can You Tell If Your Cable is Damaged?
If you’re using a multimeter to trace your coax cable, one of the telltale signs that your cable is damaged is if you get erratic readings. This can indicate that the insulation has been compromised or that the wire has broken connections.
In addition to an erratic reading, other common symptoms of a damaged cable include interference and poor signal strength. If you’re experiencing these issues, it’s best to test your cable with a multimeter and inspect the connections for any visible damage.
If any of these signs are present, you’ll likely need to replace your coax cable in order to ensure optimal performance. It’s always best to contact a professional if you suspect that your cable is damaged or not functioning as it should. They can help you identify the problem and provide a solution.
What is the Difference Between an Active and Passive Tracer?
Regarding cable tracing, there are two main types of tracers: active and passive. An active tracer is designed to emit a signal that can be detected by the cable tester in order to determine which wire goes where in a multi-wire cable. This type of tracer is more accurate than a passive one, as it can trace individual wires in a complex cable.
On the other hand, a passive tracer is designed to detect existing signals already present in the cable. It can locate and identify wires based on their unique signal strength, but it won’t be able to pinpoint faults or damaged areas in the cable as accurately as an active tracer. Regarding cable tracing, both active and passive tracers can be useful tools. However, for more accurate tracing results, an active tracer is recommended.
Are There Any Special Techniques for Tracing Coax Cables Accurately?
Yes! The most important aspect of tracing coax cables with a multimeter is ensuring the connections at both ends are properly secured. This ensures that the readings you get from the meter are accurate and reliable. It also helps to have extra supplies, such as long-handled alligator clips and spare wires or cables. You’ll also want to ensure you have a good grounding point for the meter.
Once the connections are secure, it is important to understand how your particular multimeter works and its settings before attempting to trace the cable. Most multimeters allow you to choose between AC or DC measurements, and many have additional features that can help trace coax cables. Different meters also vary in sensitivity and range, so it’s important to know which settings are best for your particular application.
Conclusion
In conclusion, tracing coax cables with a multimeter is a great way to ensure that you can locate, identify, and troubleshoot any problems that may be happening in the network. It’s an easy tool to use, with many different models available. Following the steps outlined in this article, you can easily trace your coax cable with a multimeter and take the guesswork out of diagnosing problems in your network.
Remember that when using a multimeter for tracing coax cable, it is important to be very careful and take precautions against electric shock or any other harm. Reading this post has helped you learn how to trace coax cable with multimeter. Make sure the safety precautions are carried out in the order listed.
