Testing a PTO (power take-off) switch is an important step when troubleshooting issues with your vehicle’s power take-off system. The PTO switch is responsible for controlling the engagement and disengagement of the power take-off, which is used to transfer engine power to other mechanical components such as pumps or generators.
The main advantage of knowing how to test a pto switch with multimeter is that it allows you to troubleshoot and diagnose any issues with the switch. The power take-off (PTO) switch is an important component in vehicles and equipment that use mechanical power from the engine to operate different types of machinery, such as snow plows or farming equipment. You can find step-by-step instructions on how to test pto switch with multimeter in this blog article.
Step-by-step Instructions for How to Test Pto Switch With Multimeter
Step 1: Inspect the PTO switch
The first step in testing a PTO switch with a multimeter is to visually inspect the switch itself. Look for any physical damage such as cracks, corrosion, or loose wires that may be affecting its functionality.
Step 2: Disconnect the Negative Battery Cable

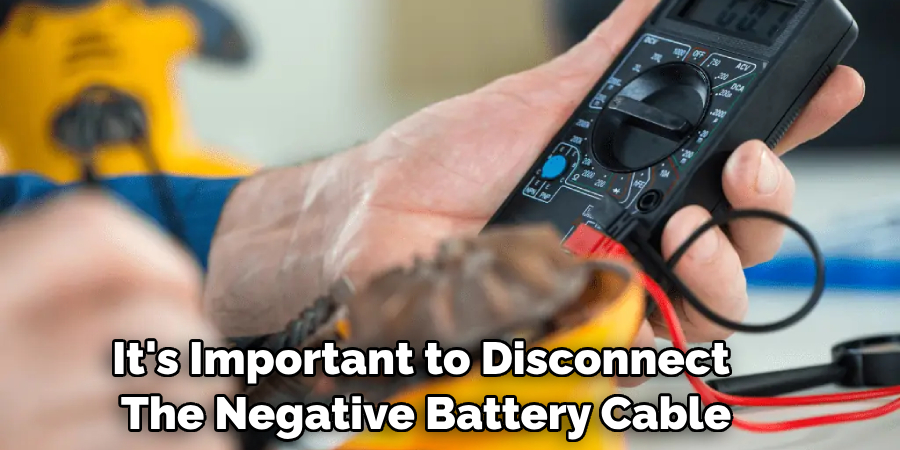

Before working on any electrical components, it’s important to disconnect the negative battery cable to prevent any accidents or damage. Locate the battery and use a wrench to loosen the nut on the negative cable, then remove it from the battery terminal.
Step 3: Locate the PTO Switch

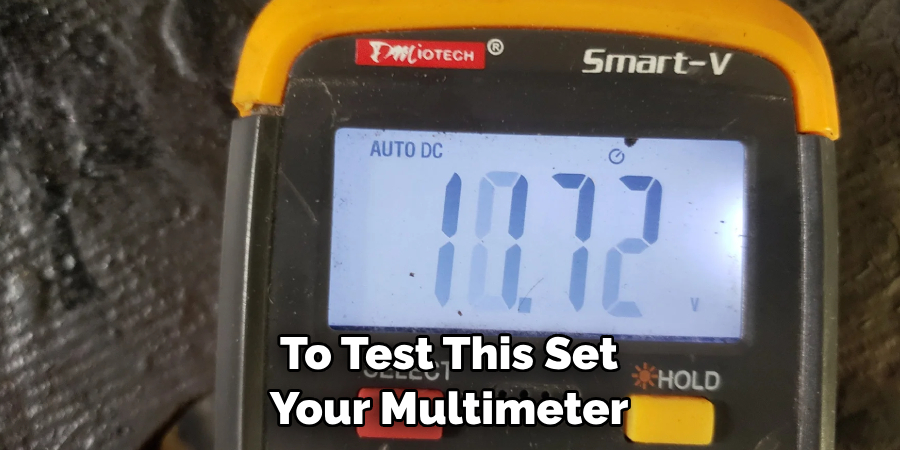

The PTO switch is usually located on or near the dashboard of your vehicle, depending on its make and model. It will typically have a label indicating that it is for controlling the power take-off. For this test, you will need to set your multimeter to the Ohms setting. This measures resistance and is used to check if there is continuity in the circuit.
Step 4: Test for Continuity
With the PTO switch in its OFF position, touch one lead of the multimeter to the PTO switch terminal and the other lead to a ground source. If there is continuity, the multimeter will display a low resistance value.
Step 5: Test for no continuity
Next, turn the PTO switch to its ON position and test for continuity again using the same method as above. If there is no continuity, it means that there is an issue with the switch and it will need to be replaced.
If there is continuity in both the ON and OFF positions, you can also test for voltage. Set the multimeter to DC Volts and touch one lead to a ground source and the other lead to the PTO switch terminal. If there is voltage present, it means that power is reaching the switch.
Step 6: Test the PTO Solenoid

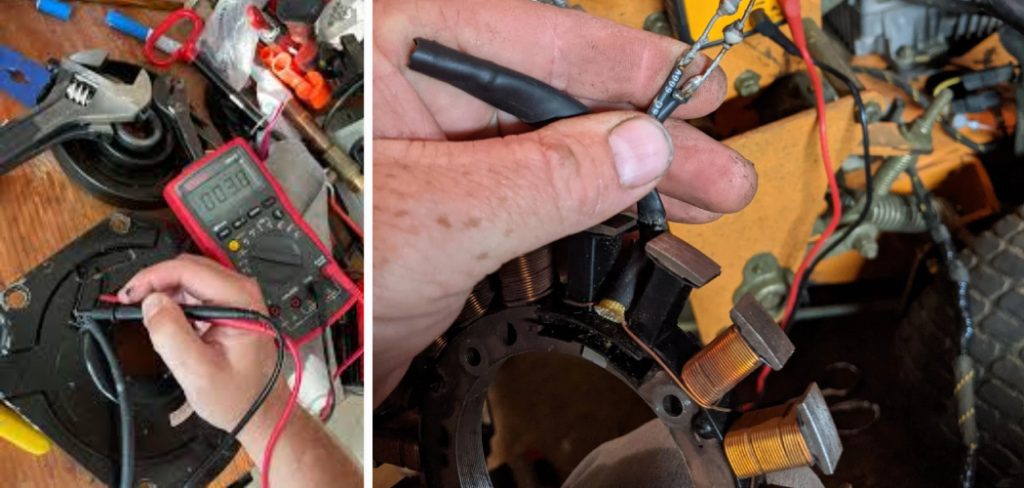

If there is voltage present and continuity in both positions, the issue may be with the PTO solenoid. To test this, set your multimeter to Ohms and touch one lead to each terminal on the solenoid. If there is no continuity, it means that the solenoid is faulty and needs to be replaced.
If all of the above tests show that the PTO switch and solenoid are functioning correctly, the issue may lie in the wiring. Visually inspect all of the wires connected to the switch and solenoid for any damage or loose connections.
Step 7: Reconnect the Negative Battery Cable

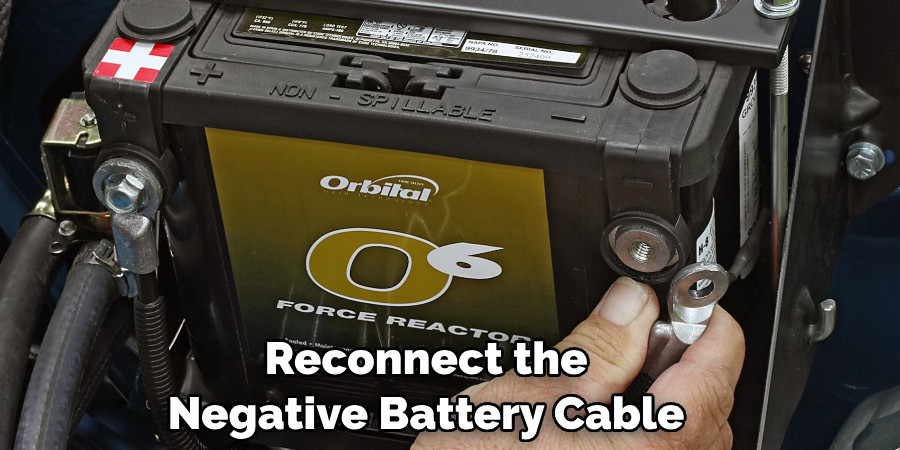

After completing your tests, make sure to reconnect the negative battery cable and tighten the nut securely. This will restore power to your vehicle’s electrical system and allow you to test if the PTO switch is now functioning properly.
By following these step-by-step instructions, you can effectively test your PTO switch with a multimeter and diagnose any issues that may be affecting its functionality. Remember to always use caution when working with electrical components and consult a professional if you are unsure or uncomfortable performing these tests yourself.
Tips for How to Test Pto Switch With Multimeter
- It is important to remember that electricity is dangerous and can pose a serious risk of injury or death if not handled properly. Therefore, it is essential to take necessary precautions while testing the PTO switch with a multimeter.
- Always make sure that you are wearing appropriate personal protective equipment (PPE) such as gloves and safety glasses before starting the testing process.
- Ensure that the multimeter is in good working condition and has the appropriate settings selected for testing voltage or continuity.
- Before connecting any wires to the multimeter, make sure that the power source is turned off to avoid any electric shocks.
- When testing a PTO switch, start with low voltage first and gradually increase it. This will help prevent any potential damage to the PTO switch or multimeter.
- Never touch the metal probes of the multimeter with your bare hands while testing. Always use insulated gloves or an appropriate tool to handle them.
- If you notice any signs of damage on the wires or PTO switch, do not proceed with the testing and seek professional help immediately. Testing damaged equipment can lead to electrical hazards.
What Are Some Common Issues That Can Be Identified by Testing a Pto Switch With a Multimeter?
The power take-off (PTO) switch is an essential component of many machines, responsible for engaging and disengaging the PTO shaft that transfers power from the engine to various attachments. A malfunctioning PTO switch can cause a variety of problems, including failure to engage the PTO or unexpected engagement while the machine is in motion.
One way to troubleshoot issues with the PTO switch is to test it with a multimeter. A multimeter is a versatile tool that can measure voltage, resistance, and continuity, making it useful for diagnosing electrical issues in various systems. To test a PTO switch with a multimeter, follow these steps:
1. Disconnect the Power Source
Before testing any electrical component, it is important to disconnect the power source to prevent any accidents or short circuits. In the case of a PTO switch, this could involve disconnecting the battery or unplugging the machine from its power source.
2. Set Up the Multimeter
Most multimeters have a variety of settings, including voltage (V), resistance (Ω), and continuity (a symbol that looks like a sound wave). For testing a PTO switch, you will need to set the multimeter to measure continuity.
3. Test the Continuity
With the multimeter set to measure continuity, touch one probe (the red or positive probe) to one terminal of the PTO switch and the other probe (the black or negative probe) to another terminal. If there is no reading on the multimeter, it means there is no continuity and the switch is not functioning properly.
4. Test for Voltage
If the PTO switch has a power source (such as a battery), you can also test for voltage using the multimeter. Set the multimeter to measure voltage and touch one probe to a terminal of the PTO switch and the other probe to a ground source (such as the negative terminal of the battery). If there is no voltage reading, it could indicate a problem with the wiring or power supply.
5. Check for Resistance
Another way to test a PTO switch is by measuring its resistance, which can help identify any issues with the switch’s internal components. Set the multimeter to measure resistance and touch one probe to each terminal of the PTO switch. The resistance reading should be close to zero; if it is significantly higher, there may be a problem with the switch.
By testing a PTO switch with a multimeter, you can identify common issues such as faulty wiring, damaged internal components, or a lack of continuity. This information can help you determine whether the PTO switch needs to be repaired or replaced, saving you time and money in the long run.
How Often Should You Test Your Pto Switch With a Multimeter?
The answer may vary depending on your specific equipment and usage, but there are some general guidelines you can follow to ensure your PTO switch is in good working condition. First and foremost, it is recommended to test your PTO switch with a multimeter before each use. This will help identify any potential issues that may have occurred since the last use and allow you to address them before they become major problems. It also serves as a preventive measure to avoid any unexpected breakdowns or malfunctions during operation.
Additionally, it is important to test your PTO switch with a multimeter after any maintenance or repairs have been done on your equipment. This will ensure that the switch is functioning properly and has not been affected by the maintenance work. It is also recommended to do a quick check of the PTO switch after each use, to ensure that it is still in good working condition. Aside from regular testing before and after use, it is also advisable to test your PTO switch with a multimeter at least once a month. This will help catch any potential issues early on and prevent them from becoming more serious problems.
How Can You Troubleshoot Issues With Your Pto Switch if the Multimeter Readings Are Inconclusive?
As with any mechanical component, the PTO (Power Take-Off) switch can experience issues over time. This switch is responsible for engaging and disengaging power from the engine to other auxiliary components such as mowers, snowblowers, and even wood chippers. If you suspect that your PTO switch may be faulty, using a multimeter is a great way to test its functionality. However, what do you do if the readings on the multimeter are inconclusive? In this section, we will explore some troubleshooting steps that you can take to fix your PTO switch.

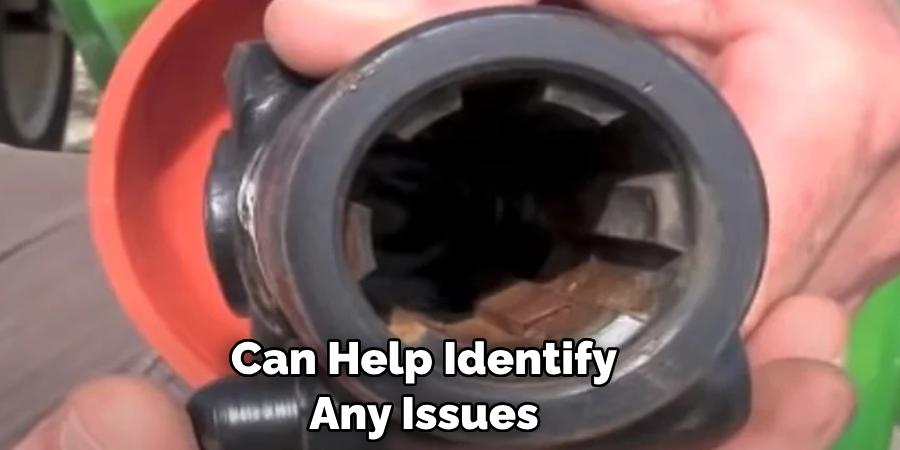

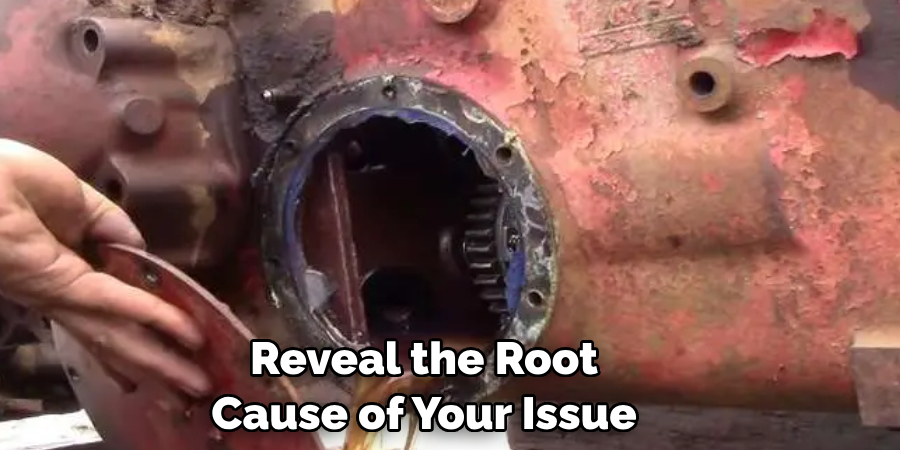

First and foremost, check for any physical defects on the switch itself. Look for any noticeable chipping or damage to the wiring connected to the switch. Sometimes, a simple visual inspection can reveal the root cause of your issue. If you do find any physical defects, it may be wise to replace the switch entirely. If there are no visible damages or defects, then it’s time to test the PTO switch with a multimeter. If you are not familiar with how to use a multimeter specifically for this purpose, check out our previous section on “Testing PTO Switch with Multimeter”.
Conclusion
In conclusion, it is clear that using a multimeter to test a pto switch is an important skill for anyone dealing with electrical systems. It allows you to accurately measure the resistance and continuity of the switch, ensuring that it is functioning properly. By following the steps outlined in this blog post, you can easily test your pto switch and determine if it needs to be replaced or not.
Remember to always prioritize safety when working with electrical systems and to double check your multimeter readings for accuracy. With practice, testing a pto switch will become second nature and you will feel confident in your ability to troubleshoot any issues that may arise. Keep this knowledge in mind the next time you encounter a faulty pto switch and be prepared to tackle the problem head on using your trusty multimeter. I hope this article has been beneficial for learning how to test pto switch with multimeter. Make Sure the precautionary measures are followed chronologically.
