How to Test Injectors with Multimeter

Car owners often overlook the importance of testing their car’s injectors. However, injector malfunction can cause numerous engine problems, including poor fuel efficiency, acceleration difficulties, decreased power output, and so on. Therefore, knowing how to test injectors to check if they are working correctly is crucial. The good news is that it is easy to test injectors with a multimeter. In this post, we will discuss the process of how to test injectors with multimeter comprehensively.

Can You Test Injectors with A Multimeter?

When testing injectors for your vehicle, it’s important to know the right tools and methods to get the job done. One common question that many novice mechanics ask is whether or not they can use a simple multimeter to test their injectors. The answer to this question is both yes and no.

While multimeters can test certain aspects of injectors, such as resistance, they do not provide a complete picture of injector functionality. To truly test your injectors and ensure that they are working as they should, it’s recommended that you use a specialized fuel injector tester. This will provide a more accurate reading of injector performance and help you diagnose any issues with your vehicle’s fuel system.

Why Should You Test Injectors with A Multimeter?

When it comes to maintaining your car, every component must be in excellent condition to ensure optimal performance. One part that often gets overlooked is the fuel injector. Not only does a poorly functioning injector negatively affect your car’s fuel efficiency, but it can also cause serious engine problems.

That’s why it’s important to test injectors with a multimeter. Doing so lets you detect any issues with the injector’s electrical resistance, which can help you identify if it needs replacing or cleaning. Testing injectors with a multimeter is an affordable way to identify potential problems that could cause serious engine damage down the line. By caring for your vehicle’s fuel injectors, you can save on repairs and enjoy a smooth ride.

A Comprehensive Guide on How to Test Injectors with Multimeter

Step 1: Disconnect the Injectors

The first step is disconnecting the fuel injectors from the engine to conduct a test. This step will allow you to test the injectors independently rather than testing them collectively with the rest of the engine. Remove the fuel pump relay or fuse before proceeding to avoid fuel sprays.

Step 2: Set Your Multimeter

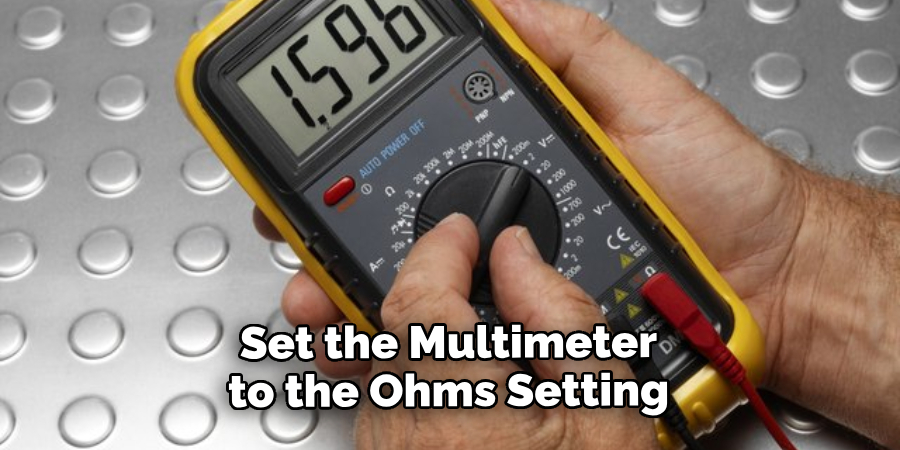

Next, set the multimeter to the ohms setting. If your multimeter has continuity testing, set it to this mode to check the injector’s wiring for continuity. Also, ensure that the multimeter has functioning batteries.

Step 3: Testing Injector Resistance

In this step, you will measure the resistance levels of each injector’s winding. Place the multimeter’s leads into the injector’s terminals to measure their resistance. Then compare the readings with the manufacturer’s specifications. If your readings fall outside of the manufacturer’s range, you may need to replace the injector.

Step 4: Testing Injector Continuity

This step involves checking the injectors’ wiring for continuity. Touch the multimeter leads to each injector’s electrical connectors, keeping the leads a few inches apart. The reading should be close to zero. If the reading presents OL or infinity sign, it indicates an open circuit or damage to the wiring.

Step 5: Verification of the Results

Finally, you need to test the injectors again after reconnecting them to the engine. Do this by running the car and testing the injector’s spray pattern. Ensure you check for any fuel leaking, unusual spray patterns, or risks of fire hazards. If everything checks out ok, your injectors are good to go.

Step 6: Replace or Reinstall the Injectors

If your initial tests show that the injectors are out of tolerance, you must replace them. Make sure to take extra precautions when handling fuel injectors, as they contain pressurized fuel systems, which can be dangerous. If everything checks out ok, reinstall them and put everything back in place.

Step 7: Test the Car Performance

After re-connecting the injectors, start your car and take it out for a spin. Check for any changes in performance, such as engine noise, fuel efficiency, or power output. If you notice any of these issues, take your car immediately to a mechanic to get it checked and tuned up if necessary.

Getting your injectors checked and tested regularly is a great way to maintain the performance of your car. With the help of a multimeter, you can easily check fuel injectors and determine whether they need replacement. Always follow all safety guidelines when handling fuel injectors, and always consult an experienced mechanic if needed.

5 Considerations Things When You Need to Test Injectors with Multimeter

1. Check the Voltage

The first step when testing injectors with a multimeter is to check the voltage. The voltage should be between 12 and 14 volts, depending on your vehicle’s make and model. If the voltage is too low, it could indicate a problem with the battery or alternator. If the voltage is too high, it could indicate an issue with the wiring or a short circuit in one of the components.

2. Test for Resistance

The next step is to test for resistance in each of the injectors. To do this, you must connect one lead of your multimeter to each injector terminal and then measure the resistance value between them. The resistance should be between 5 and 10 ohms for most vehicles. If any of the injectors have a higher or lower resistance than this, they may need to be replaced.

3. Check for Leaks

The third step when testing injectors with a multimeter is to check for leaks in each of them. To do this, you must connect one lead of your multimeter to each injector terminal and then measure the current flowing through them. Any injector that has a higher current flow than normal could indicate a leak and should be replaced as soon as possible.

4. Look For Corrosion

Another important consideration when testing injectors with a multimeter is to look for corrosion on their terminals or other components in their vicinity. Corrosion can cause electrical problems, such as shorts or open circuits, which can negatively affect performance and fuel economy if not addressed promptly.

5. Test Fuel Pressure

Finally, it’s important to test fuel pressure when testing injectors with a multimeter since low fuel pressure can also affect performance negatively if not addressed promptly and cause damage over time due to insufficient lubrication of moving parts in fuel system components such as pumps and regulators. The ideal pressure range should be around 35-45 psi, depending on your vehicle’s make and model, so use an accurate gauge when checking this parameter.

By following these five steps when testing injectors with a multimeter, you can ensure that your vehicle will continue running smoothly and efficiently for years. Always use an accurate and reliable gauge when checking any of the parameters mentioned above to get the most accurate readings possible. If there’s any doubt about what the readings indicate, it’s best to consult a professional mechanic.

5 Benefits of Test Injectors with Multimeter

1. Improved Accuracy

Test injectors with multimeters offer improved accuracy compared to traditional testing methods. This is because the multimeter measures a single device’s current, voltage, and resistance, providing more precise readings than manual tests.

This improved accuracy can be especially beneficial when testing delicate components such as circuit boards or wiring harnesses. Additionally, the ability to measure multiple parameters with a single device makes it easier to diagnose complex electrical problems.

2. Safer Testing

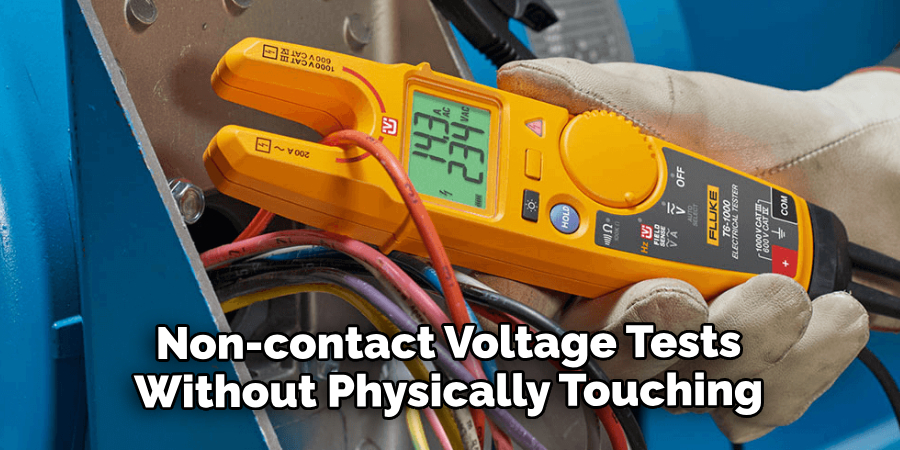

Test injectors with multimeters are also safer than traditional testing methods. This is because they allow users to perform non-contact voltage tests without physically touching any exposed wires or terminals. This eliminates the risk of electric shock and reduces the chances of damaging sensitive components during testing.

3. Increased Efficiency

Using test injectors with multimeters can also increase efficiency by eliminating the need for manual tests. For example, instead of manually measuring each component individually, users can connect a test lead from the multimeter to each component and quickly measure its current, voltage, and resistance in one go. This saves time and effort compared to traditional testing methods and allows users to identify faults in an electrical system quickly.

4. Versatility

Test injectors with multimeters are also highly versatile tools that can be used for a variety of applications, such as troubleshooting automotive wiring systems or testing household appliances for safety compliance standards. Additionally, many modern models feature advanced features such as data logging capabilities or temperature probes, further expanding their range of uses.

5. Cost Savings

Finally, using test injectors with multimeters can save money in the long run by reducing labor costs associated with manual tests and eliminating the need for additional diagnostic equipment, such as oscilloscopes or logic analyzers, which can be expensive to purchase and maintain. In addition, these devices are often more affordable than traditional test equipment due to their compact size and simple design, which helps reduce manufacturing costs.

Overall, test injectors with multimeters offer a wide range of benefits, making them ideal tools for both professional technicians and home mechanics. They are easy to use, highly accurate, and cost-effective, making them invaluable diagnostic tools that can help save time and money when troubleshooting automotive or household electrical systems.

6 Common Mistakes People Make When Trying to Test Injectors with Multimeter

1. Not Setting the Multimeter to the Correct Mode

One of the most common mistakes people make when trying to test injectors with a multimeter is not setting the device to the correct mode. To accurately measure current and resistance, it is important to set the multimeter to either an ohms or milliamps mode. Failing to do so can lead to inaccurate readings and potentially cause damage to the injector.

2. Not Disconnecting Injector Wiring Harness

Before attempting to test an injector with a multimeter, it is important to disconnect the wiring harness from the injector to avoid shorting out any circuits or damaging other components in the vehicle’s electrical system. It is also important to ensure that all power sources are disconnected before starting any testing procedure.

3. Not Testing Each Injector Separately

When testing multiple injectors at once, it is important to test each one individually to get accurate readings. This will help ensure that no faulty injectors are overlooked and that any issues can be identified quickly and easily. It is also important to note that some vehicles may require special adapters when connecting multiple injectors for testing purposes.

4. Not Cleaning Electrical Connections Before Testing

For a multimeter reading to be accurate, all electrical connections must be clean and free of dirt or corrosion before testing begins. If there is any buildup on the contacts, this can interfere with the accuracy of the reading and cause false results. It is, therefore, important that all connections are cleaned thoroughly before testing commences.

5. Not Recording Test Results Accurately

When testing an injector with a multimeter, all test results must be recorded accurately to be useful later on if needed for comparison or troubleshooting purposes. This includes recording both positive and negative readings as well as noting down any fluctuations in voltage or current levels during testing procedures.

6. Not Checking Injector Pulse Widths

The pulse width of an injector refers to how long its solenoid stays open when fuel pressure from the fuel rail or pump assembly is activated for fuel delivery into each cylinder of an engine’s combustion chamber cycle-by-cycle basis during operation.

When using a multimeter for diagnosing issues with an engine’s fuel system, it is important that these pulse widths are checked regularly in order for any problems, such as air leaks or clogged filters, can be identified quickly and easily. This helps ensure that engines are running efficiently and safely at all times.

Conclusion

Testing injectors with a multimeter is an easy process that most people can do with a little knowledge of how to read and interpret multimeter readings. Following this comprehensive guide, you can effectively test your car’s injectors and ensure they function correctly.

Remember that a little maintenance and proactive testing can save you from more profound engine issues down the line. So, regularly test your car’s injectors to avoid costly repairs and breakdowns. Thanks for reading our post about how to test injectors with multimeter.
