How to Test Fuel Pressure Sensor With Multimeter

Testing the fuel pressure sensor is a good place to start if your car isn’t starting, has low performance, or wants to do some routine maintenance. This article will show you how to test fuel pressure sensor with multimeter. We’ll also provide some troubleshooting tips in case you experience problems. So let’s get started!

What Causes Fuel Pressure Sensor Problems

There are a few things that can cause fuel pressure sensor problems. The most common is contamination. This can come from dirt, rust, or even water. If the sensor gets clogged, it won’t be able to read the pressure correctly. Another possibility is that the wiring is damaged. This can happen if the wires are old or frayed.

Additionally, the connector might not be making a good connection. The other possibility is that the sensor itself is faulty. This is relatively rare, but it does happen. Lastly, there could be a problem with the ECU. This is the computer that controls the fuel injectors. If it’s not working properly, it can cause many problems, including fuel pressure sensor issues.

Why Should You Test Fuel Pressure Sensor With Multimeter?

There are a few reasons why you might want to test the fuel pressure sensor with a multimeter. The most common is that you’re having starting problems. If the sensor isn’t reading the pressure correctly, it can cause the car to stall or not start at all. Additionally, you might notice that the car has low performance. This can be due to several things, but a faulty fuel pressure sensor is one possibility.

Another reason to test the fuel pressure sensor is for routine maintenance. It’s a good idea to test all the sensors on your car periodically. This way, you can catch any problems early and avoid major issues down the road. Finally, testing the fuel pressure sensor is a good way to diagnose other problems. Testing the sensor can help you narrow down the possible causes if you’re having trouble with the engine.

Step by Step How to Test Fuel Pressure Sensor With Multimeter

1. Gather the Tools

The first thing you’ll need to do is gather the tools. You’ll need a digital multimeter, a fuel pressure gauge, and a few other supplies. Gather everything you need before you get started. This way, you won’t have to stop in the middle of the test. You can use an analog if you don’t have a digital multimeter. However, it’s not as accurate.

2. Hook Up the Multimeter

Next, you’ll need to hook up the multimeter. This is a relatively simple process. First, set the multimeter to the resistance setting. Then, touch the black lead to the ground terminal on the sensor. Next, touch the red lead to the signal terminal. You should see a reading on the multimeter. If you don’t, check the connections and make sure they’re tight. Avoid touching the leads together. This can damage the multimeter.

3. Test the Sensor

Once the multimeter is hooked, it’s time to test the sensor. First, turn on the engine. Let it idle for a few minutes so that it’s up to operating temperature. Next, turn on the fuel pump. You should hear it running. Finally, take a reading on the multimeter. The reading should be between 0.5 and 4.5 volts. If it’s not, the sensor is likely faulty. Try testing it again to be sure. Avoid letting the engine idle for too long. This can damage the sensor.

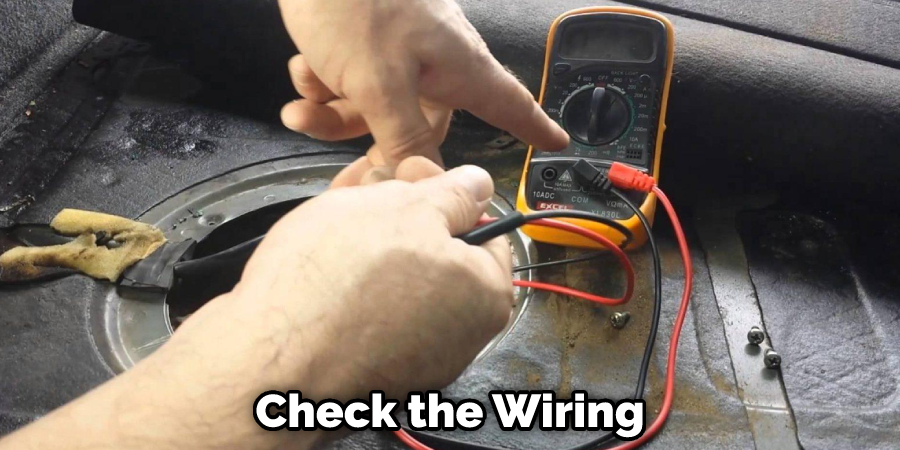

4. Check the Wiring

If the sensor is reading correctly, the next step is to check the wiring. This is done with a multimeter. First, disconnect the sensor from the wiring harness. Then, set your multimeter to the ohms setting and check for continuity between the ground wire and all other wires. If there is continuity, the wiring is good. If there is no continuity, the wiring is bad and will need to be replaced. Avoid testing the wires with the sensor still connected, as this can damage the sensor.

5. Inspect the Connector

If the wiring checks out, the next step is to inspect the connector. This is where the sensor connects to the wiring harness. To do this, you’ll need to remove the connector from the sensor. First, check for any signs of corrosion or damage. If the connector looks damaged, it will need to be replaced. If the connector looks okay, you can move on to testing it. You’ll need to check the sensor’s resistance to test the connector.

To do this, you’ll need to use a multimeter. First, set the multimeter to the ohm setting. Next, probes the multimeter into the two terminals on the connector. The multimeter should register a reading of between 0.5 and 2 ohms. If the reading is outside of this range, the connector will need to be replaced.

6. Check for Contamination

If the connector is good, the next step is to check for contamination. This can be done by checking the continuity between the two terminals of the sensor. If there is no continuity, then the sensor is probably contaminated and needs to be replaced. To check for contamination, you will need to use a multimeter. First, disconnect the sensor from the fuel line.

Then, turn the multimeter to the continuity setting and touch one probe on each of the sensor’s terminals. If the multimeter beeps, then the sensor is probably contaminated and needs to be replaced. If the sensor is not contaminated, the next step is to check the fuel pressure. This can be done with a fuel pressure gauge. You must connect the gauge to the fuel line and turn on the ignition. The gauge should read between 30 and 45 psi. If the pressure is outside of this range, then the sensor needs to be replaced.

7. Test the ECU

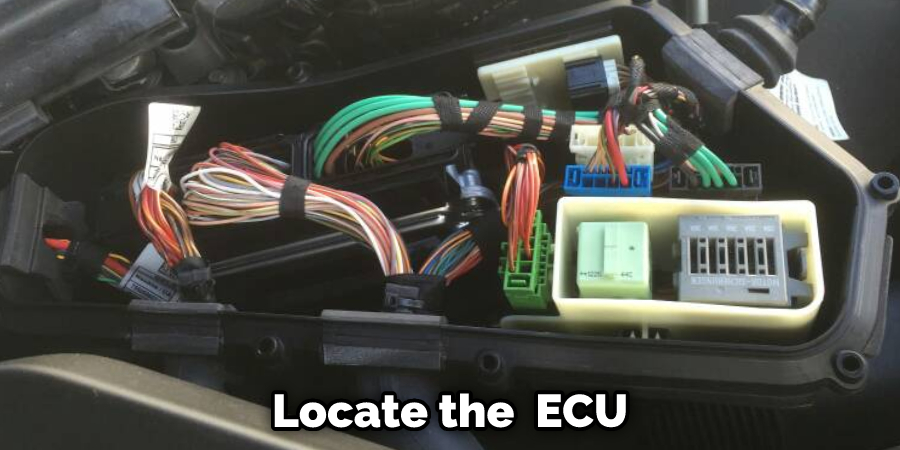

If the fuel pressure is good, the next step is to test the ECU. This can be done with a multimeter. First, disconnect the negative battery cable. Next, locate the ECU and disconnect the connector. Set your multimeter to the ohms setting and check for continuity between the two pins on the ECU. If there is no continuity, replace the ECU. Avoid touching the pins with your fingers, as this can cause an electrical short.

8. Test the Injectors

Another potential problem area is the injectors. You’ll need a multimeter and an injector testing kit to test them. First, remove the fuel rail and disconnect the electrical connector from the injector. Next, attach the positive lead of the multimeter to the terminal on the injector connector and the negative lead to the ground. The reading should be between 12 and 14 volts. If it’s not, the injector is faulty and needs to be replaced.

Tips and Warnings on How to Test Fuel Pressure Sensor With Multimeter

Tips:

1. Always test the fuel pressure sensor with the engine turned off.
2. Do not use a multimeter that does not have an auto-ranging feature.
3. If the multimeter does not have an auto-ranging feature, set it to the 20 VDC range.
4. Be sure to connect the black lead of the multimeter to the negative (-) terminal of the sensor and the red lead to the positive (+) terminal.
5. If you are testing a three-wire sensor, connect the multimeter’s black lead to the sensor’s ground terminal.
6. When testing a four-wire sensor, disconnect the vehicle’s battery before starting the test.

Warnings

1. Do not use a multimeter that does not have an auto-ranging feature.
2. If the multimeter does not have an auto-ranging feature, set it to the 20 VDC range.
3. Be sure to connect the black lead of the multimeter to the negative (-) terminal of the sensor and the red lead to the positive (+) terminal.
4. When testing a four-wire sensor, disconnect the vehicle’s battery before starting the test.
5. If you are unsure of how to use a multimeter, consult an expert properly.
6. Never use a multimeter to test a live circuit. Always disconnect the power source before beginning the test.
7. Never touch the sensor’s terminals with your bare hands. Always use gloves or insulated tools.

Conclusion

So there you have it. These are the steps on how to test fuel pressure sensor with multimeter. By following these steps, you can easily test the fuel pressure sensor and determine if it is working properly or not. If the sensor is not working properly, it must be replaced. We hope that this article has been helpful and informative. Thank you for reading!
