How to Test Condenser Fan Motor

There are several reasons why you should know how to test your condenser fan motor. The first reason is for regular maintenance of your HVAC system. The second reason is to save money on costly repairs or replacements. And the third reason is for safety precautions.

The main  advantage of testing condenser fan motor is the ability to troubleshoot and fix issues on your own. This can save you time and money by avoiding costly repairs or service calls. Another advantage is being able to identify potential problems before they become major issues.

Regularly testing your condenser fan motor can help you catch any malfunctions or wear and tear early on, preventing it from causing more damage to your HVAC system. In this blog post, You will learn in detail how to test condenser fan motor.

Step-by-step Instructions for How to Test Condenser Fan Motor

Step 1: Inspect  the Fan Blade

Inspect the fan blade for any visible damage, such as cracks or missing pieces. If there are any damages, replace the fan blade before testing the motor. Before testing the condenser fan motor, ensure that there is a power supply to it. Use a multimeter to check if there is voltage present at the fan motor’s terminals. If there is no power supply, check the circuit breaker or fuse box for any issues.

Step 2: Disconnect Power

Before beginning any work on electrical components, always disconnect the power to ensure safety. Turn off the circuit breaker or unplug the unit from its power source. Remove the cover of the condenser fan motor by unscrewing the bolts or clips that hold it in place. Carefully set aside the cover, making sure not to damage any of the wiring.

Step 3: Inspect Wiring Connections

Inspect the wiring connections for any signs of damage or loose connections. Tighten any loose connections and replace any damaged wiring before proceeding. Using a multimeter, check the capacitor for any signs of damage or malfunction. If the readings are not within the proper range, replace the capacitor.

Step 4: Test Motor Windings

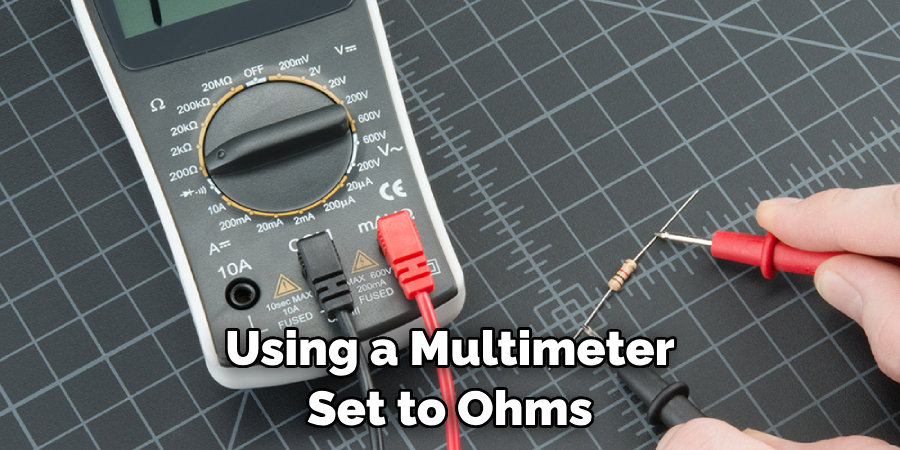

Using a multimeter set to ohms, test the motor windings by placing one probe on the common terminal and the other on either of the speed terminals. The reading should be within the range specified by the manufacturer. Repeat this test for each of the speed terminals.

To ensure proper air flow, it is important to make sure that the fan blade is rotating in the correct direction. Turn on the power supply briefly and observe which direction the fan blade turns. If it is not rotating in the correct direction, switch the position of any two motor leads.

Step 5: Test Motor Start Capacitor (If Applicable)

If your condenser fan motor has a start capacitor, use a multimeter to check its functionality. The readings should quickly increase and then drop back down to zero. If the readings do not follow this pattern, replace the start capacitor.

If your condenser fan motor has a run capacitor, use a multimeter to check its functionality. The readings should be stable and not fluctuate. If the readings are not within the specified range, replace the run capacitor.

Step 6: Reassemble and Test

Once all components have been inspected and any necessary replacements have been made, reassemble the motor cover and reconnect the power supply. Turn on the unit and observe the fan blade to ensure it is running smoothly.

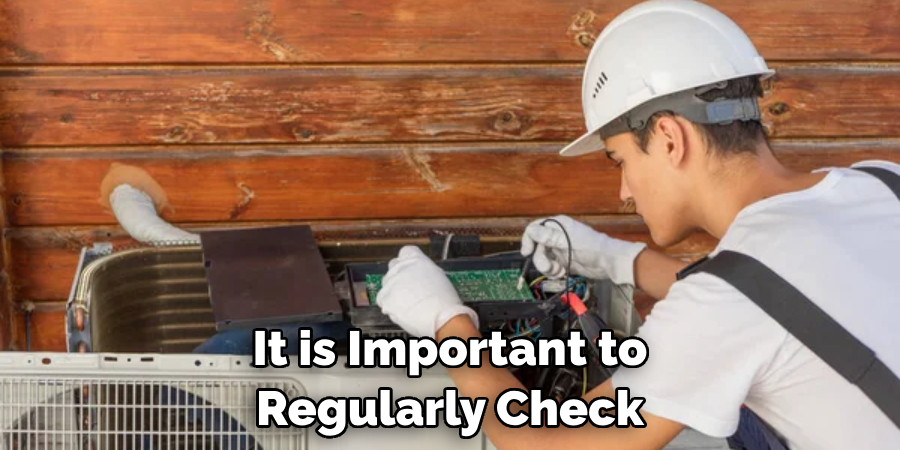

To keep your condenser fan motor in good working condition, it is important to regularly check for any signs of damage or malfunction. This should be part of your routine maintenance checks for your HVAC system. If any issues are found, follow these steps again to properly test and troubleshoot the motor.

By  following these step-by-step instructions, you can easily test your condenser fan motor and ensure its proper functioning. Regular maintenance checks and prompt repairs will help keep your HVAC system running smoothly and efficiently. Remember to always prioritize safety by disconnecting the power before starting any work on electrical components.

Safety Tips for How to Test Condenser Fan Motor

1. Make sure to check the power source before starting any testing on the condenser fan motor. This is a crucial safety tip as you want to avoid getting electrocuted or causing damage to your equipment. Ensure that the power supply is turned off and disconnected before proceeding with any tests.
2. Always wear appropriate protective gear when conducting tests on the condenser fan motor. This includes gloves, safety glasses, and non-conductive footwear. These precautions might seem excessive, but they are essential in ensuring your safety while handling potentially hazardous equipment.
3. Before starting any testing procedures, it is important to thoroughly inspect the condenser fan motor for any signs of damage. Look for frayed wires, loose connections, or any physical damage to the motor. If you notice any issues, do not attempt to test the motor and instead seek professional help.
4. A multimeter is an essential tool for testing the condenser fan motor. It allows you to measure voltage, current, and resistance, giving you accurate readings of the motor’s performance. Make sure to use a multimeter that is suitable for high-voltage applications.
5. It is crucial to follow proper testing procedures when conducting any tests on the condenser fan motor. This includes understanding the wiring diagram, using the correct settings on your multimeter, and following safety precautions. Skipping steps or taking shortcuts can lead to inaccurate results and potentially cause harm.
6. When testing the motor, avoid using excessive force or pressure. The motor should be able to operate smoothly without any added pressure from your tests. Applying too much force can cause damage to the motor and potentially lead to injury.
7. If you are not confident in your abilities or do not have the necessary tools, it is always best to seek professional help. A licensed technician will have the experience and knowledge needed to safely and accurately test the condenser fan motor. Trying to do it yourself could result in further damage or even injury.

By  following these safety tips, you can ensure a safe and successful testing process for your condenser fan motor. Remember to prioritize your safety and that of those around you when working with any type of electrical equipment.

Are There Any Specific Maintenance Tasks That Can Prolong the Lifespan of a Condenser Fan Motor?

There are several maintenance tasks that can prolong the lifespan of a condenser fan motor:

1. Regular Cleaning

One of the most important upkeep tasks for a condenser fan motor is to keep it clean. Dirt, dust, and debris can accumulate on the motor over time and cause it to overheat or work harder than necessary. This can lead to premature wear and tear and shorten its lifespan. Regularly cleaning the motor with a damp cloth or gentle air compressor can help prevent this.

2. Lubrication

Keeping the motor’s moving parts well-lubricated is also crucial for prolonging its lifespan. Over time, the lubricant can break down or dry out, causing the motor to work harder and potentially damage itself. Refer to the manufacturer’s instructions for the appropriate type and amount of lubricant to use.

3. Check Electrical Connections

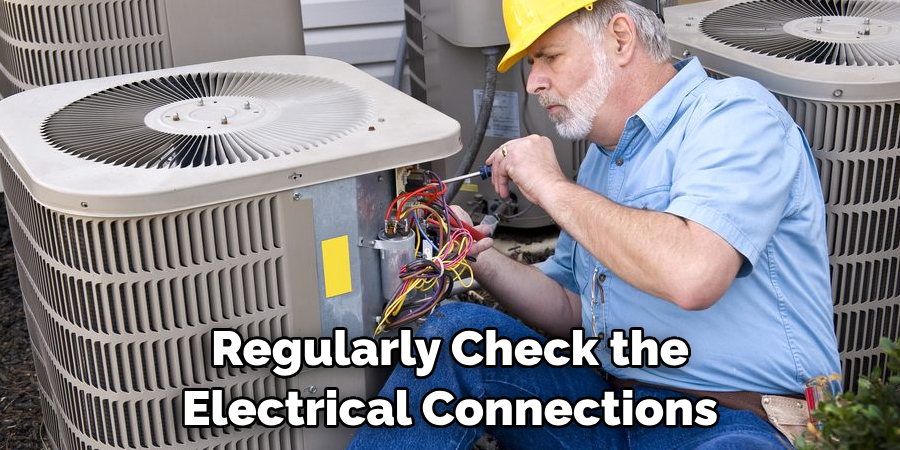

It’s important to regularly check the electrical connections on the motor and make sure they are secure and free from corrosion. Loose or corroded connections can cause the motor to overheat and fail prematurely.

4. HVAC System Maintenance

The condenser fan motor is a critical component of the HVAC system, and therefore, it’s essential to keep the entire system well-maintained. Regularly changing air filters, cleaning condenser coils, and inspecting other components can help prevent strain on the motor and extend its lifespan.

5. Monitor Temperature

The temperature of the motor is a good indicator of its health. If the motor feels excessively hot to the touch, it may be a sign of an underlying issue. It’s important to address any temperature irregularities early on to prevent further damage.

6. Address Any Strange Noises

Unusual noises coming from the motor can also indicate a problem that needs to be addressed. If you hear grinding, squealing, or other abnormal sounds, it’s best to have a professional inspect the motor to avoid potential damage.

7. Schedule Regular Maintenance

While some maintenance tasks can be done by the homeowner, it’s also crucial to schedule regular maintenance with a professional HVAC technician. They can perform a thorough inspection of the motor and other components, identify any issues early on, and take necessary steps to prevent further damage.

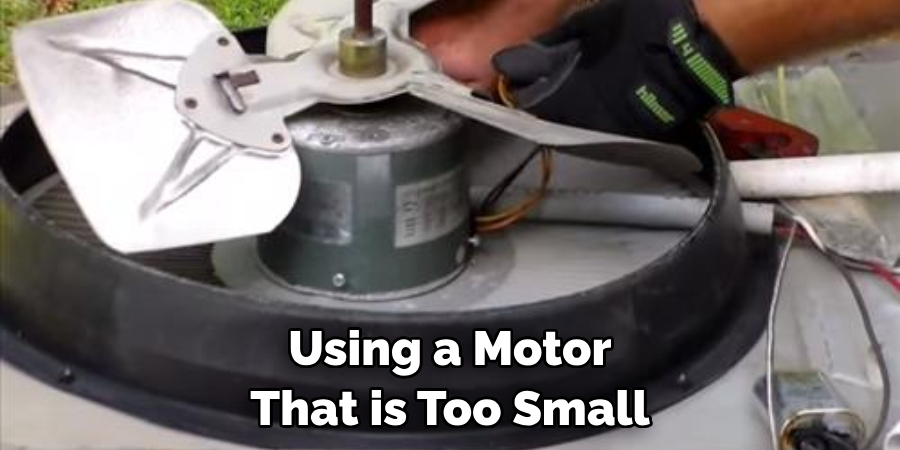

In addition to these specific maintenance tasks for the condenser fan motor, it’s also essential to use the correct size and type of motor for your HVAC system. Using a motor that is too small or not designed for your specific system can put undue strain on the motor and shorten its lifespan. It’s important to consult with a professional when selecting and installing a new condenser fan motor.

Is There a Way to Troubleshoot Any Potential Issues With a Condenser Fan Motor Through Sound or Vibrations?

There are a few ways to troubleshoot potential issues with a condenser fan motor by listening for any unusual sounds or vibrations. One of the main signs of a problem is when you hear grinding, squealing, or scraping noises coming from the motor. This could indicate that the fan blades are hitting something or that there is a lack of lubrication. Another thing to listen for is a buzzing sound.

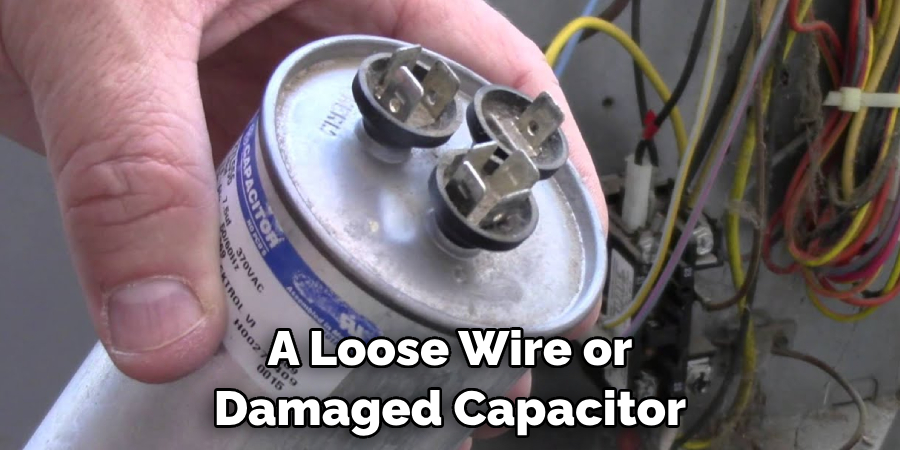

This could mean that there is an electrical issue, such as a loose wire or damaged capacitor. It’s important to address these issues promptly to prevent further damage.

If you notice any of these warning signs, it’s best to call a professional HVAC technician to properly diagnose and fix the issue. Attempting to troubleshoot and repair the condenser fan motor on your own can be dangerous and may cause further damage. Furthermore, regular maintenance is key in preventing potential issues with the condenser fan motor. This includes keeping the motor and surrounding area clean, checking for any loose or damaged parts, and lubricating the motor as needed.

Are There Any DIY Methods for Testing and Troubleshooting a Condenser Fan Motor, or Should You Always Seek Professional Help?

There are certainly some DIY methods for testing and troubleshooting a condenser fan motor, but whether or not you should always seek professional help depends on your level of comfort and experience with electrical components. One common method for testing a condenser fan motor is to use a multimeter to check the voltage at the motor’s terminals.

If there is no voltage present, then the issue may be with the motor’s wiring or a faulty capacitor. In this case, it may be best to call in a professional for assistance. Overall, while there are DIY methods available for testing and troubleshooting a condenser fan motor, it’s important to always prioritize safety and seek professional help if you’re unsure or uncomfortable with the task at hand.

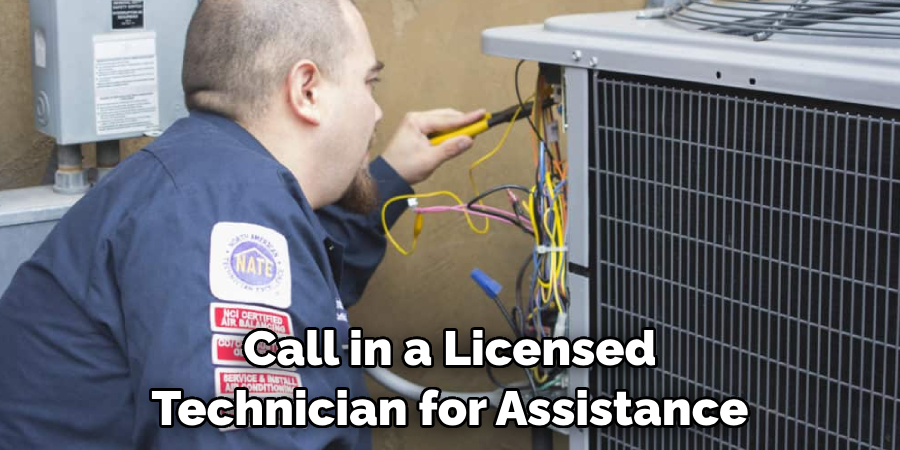

Electrical components can be dangerous if mishandled, so don’t hesitate to call in a licensed technician for assistance. Additionally, regular maintenance and cleaning of your HVAC system can help prevent issues with your condenser fan motor, ultimately saving you time and money in the long run.

Conclusion

The main  disadvantage of testing the condenser fan motor is that it requires technical knowledge and experience in handling electrical components. If not done correctly, it can cause harm to the person performing the test or damage to the motor itself. However, with proper precautions and guidance, this task can be easily completed by anyone.

It is important to follow safety measures such as wearing appropriate protective gear and ensuring the power source is disconnected before starting the test. In conclusion,  the condenser fan motor is an essential component of an HVAC system that plays a crucial role in maintaining proper air circulation and temperature.

It is responsible for removing heat from the refrigerant, preventing the compressor from overheating, and ensuring efficient cooling. To ensure that your condenser fan motor is functioning properly, regular testing and maintenance are necessary. I hope this article has been beneficial for learning how to test condenser fan motor. Make Sure the precautionary measures are followed chronologically.
