Are you trying to figure out how to test blower motor with multimeter? If so, then look no further! With this comprehensive guide, you’ll be able to learn exactly how to use a multimeter to easily test your blower motor for proper functioning. By using simple step-by-step instructions and detailed images, even someone with little experience will have no problem successfully completing this task in no time. So let’s get started on testing your blower motor right away!
Knowing how to properly test your blower motor can save time and effort as well as make sure that every component of the system is running smoothly. This guide will walk you through the steps involved in using a multimeter to test the motor, providing an easy-to-follow process that anyone can do. So grab your meter, get ready for some inspection work, and let’s get started!
Why May You Want to Test Blower Motor With Multimeter?
1 . To Ensure the Blower Motor is Functioning Properly
Testing a blower motor with a multimeter ensures that it is functioning properly. The multimeter allows you to check the current draw, voltage output, and resistance to ensure all components are operating correctly. This will help identify any potential problems before they become more serious and costly issues.
2 . To Ensure the Blower Motor Is Receiving Sufficient Power
It is important to test a blower motor with a multimeter to ensure that it is receiving enough power. If there isn’t sufficient power, then the motor may not be able to run at full capacity and this can cause problems with its performance. Additionally, if the voltage output is too high, then the motor could be overworked and lead to premature failure.
3 . To Identify Potential Problems
Testing a blower motor with a multimeter allows you to identify potential problems before they become more serious. Testing the current draw, voltage output, and resistance can help you diagnose any potential issues that may arise down the line. This will not only save time and money but also help ensure that your blower motor is functioning optimally.
4 . To Diagnose Electrical Issues
If you are experiencing any sort of electrical problems with your blower motor, then it is important to test it with a multimeter in order to diagnose the issue. This will allow you to identify any faulty components or wiring that may be causing the issue. This will help you determine what needs to be fixed and how to go about doing so.
Testing a blower motor with a multimeter is an important step in ensuring its proper functioning and long-term reliability. It allows you to identify potential issues before they become major problems, as well as diagnose any electrical issues that may arise. By taking the time to properly test your blower motor, you can ensure that it is running optimally and won’t need expensive repairs down the line.
How to Test Blower Motor With Multimeter in 6 Easy Steps
Step 1: Gather All The Tools
The very first step is to gather all the tools you are going to need. This includes a multimeter, screwdriver, and some other basic tools such as pliers and wire cutters. Make sure that you have everything ready before starting as it will make the process much smoother.
Step 2: Disconnect Power Source
Before beginning the testing process, it is important to make sure that the power is disconnected from the blower motor. This can be done by turning off the circuit breaker that is supplying power to the motor. It is also a good idea to place a safety label on this circuit, so that no one accidentally turns it back on while you are working.

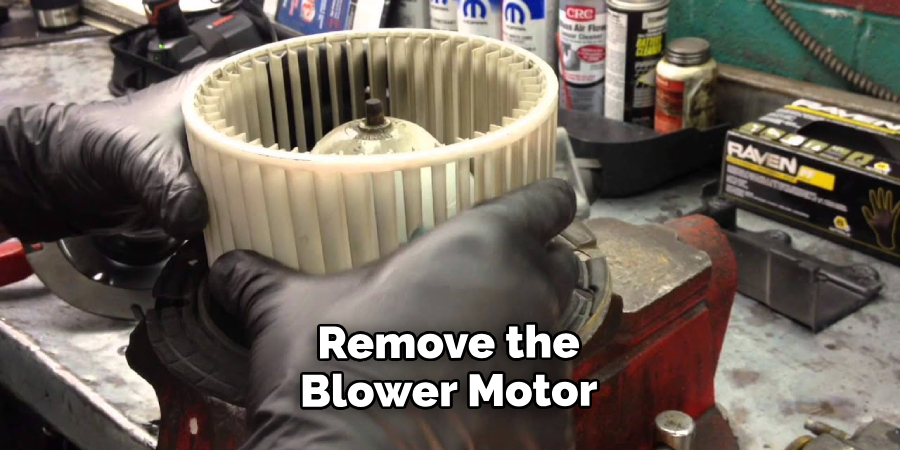

Step 3: Remove the Blower Motor
The next step is to remove the blower motor. This is usually done by unscrewing the screws that are holding it in place and then pulling it out gently. Make sure to keep track of all the wires and connections, as you will need them when reinstalling the motor later on.
Step 4: Set up the Multimeter
Once you have the blower motor removed, it is time to set up your multimeter. Make sure that all the settings are correct and that you know how to read the results on the display. It is important to double-check this before beginning the actual testing process.
Step 5: Test Voltage Output
The first test is to check for voltage output. Connect one lead of the multimeter to the “COM” terminal on the blower motor and then connect the other lead to any one of the terminals that are labeled “V”. This will give you a reading of the voltage output from the blower motor.
Step 6: Test Current Draw
The second test is to check for current draw. This is done by connecting the multimeter between any two terminals that are labeled “I” on the blower motor. Make sure to note down the reading and compare it to the manufacturer’s recommended current draw for this particular motor.
Once you have conducted both tests, you can be assured that your blower motor is functioning properly. If any of the readings seem unusual, then it is best to consult with a professional before attempting to repair the motor yourself.
13 Additional Tips to Test Blower Motor With Multimeter
1 . Make Sure to Meter Test the Motor Under Load
When testing a blower motor with a multimeter, it is important to test it under load. This means you need to turn on the fan in order for your readings to be accurate. If you meter test the motor without having it running, you may not get an accurate reading.

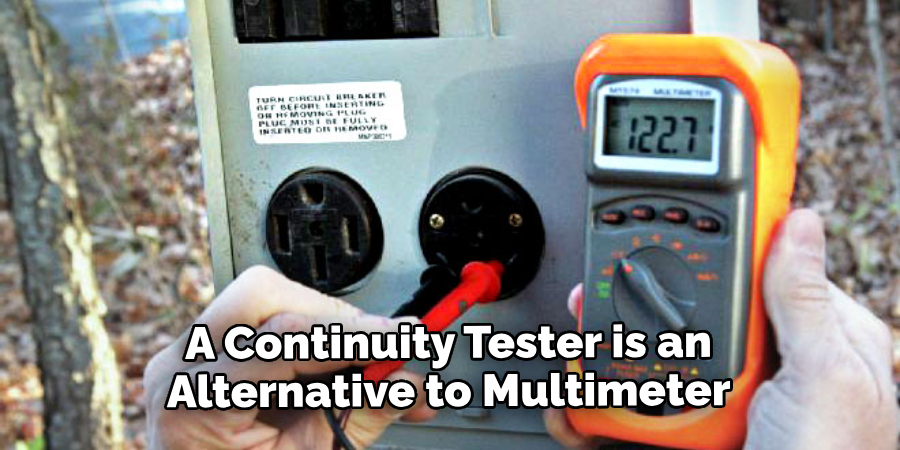

2 . Consider Using a Continuity Tester
A continuity tester is an alternative to multimeter. It can be used to check the connections between wires and other components in the blower motor. When you use a continuity tester, you don’t have to worry about setting up your multimeter correctly or reading the numbers correctly.
3 . Use the Right Ohm Setting
When testing a blower motor with a multimeter, it is important to use the right ohm setting. This will ensure that you get accurate readings while testing the motor.
4 . Check for Voltage Drops When Testing the Motor Under Load
When testing a blower motor under load, you should also make sure to check for any voltage drops. Voltage drops can indicate an electrical problem in the motor and should be addressed as soon as possible.
5 . Don’t Forget to Test the Ground Wire
When testing a blower motor, it is important to also test the ground wire. This will help you make sure that the connection between the ground wire and other components is secure and that the current can flow properly.

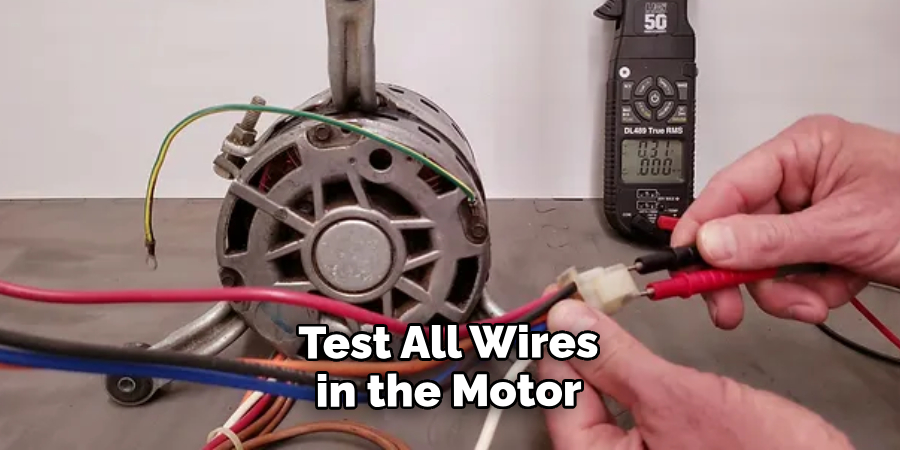

6 . Make Sure to Test All Wires in a Motor
When testing a blower motor, it is important to make sure you test all wires in the motor. This will ensure that all connections are secure and that there are no broken or frayed wires.
7 . Use a Voltmeter
Using a voltmeter can help you get an accurate reading while testing the blower motor. A voltmeter measures the voltage of the motor and will determine if there are any issues with the power supply to the motor.
8 . Use an Amp Meter for AC Motors
If you’re testing an AC blower motor, it is important to use an amp meter. This will help you determine if the motor is drawing too much or not enough current from the power supply. Also, an amp meter will tell you if there are any issues with the motor’s internal components.
9 . Check for Corrosion or Debris on Motor Terminals
When testing a blower motor, it is important to also check for any corrosion or debris on the motor terminals. This can cause poor connections and should be cleaned off before attempting to meter test the motor.
10 . Pay Close Attention to the Results of Each Test
When testing a blower motor with a multimeter, it is important to pay close attention to the results of each test. This will help you troubleshoot any issues that may be present in the motor and make sure it is working properly. Make sure to write down the results of each test for future reference.
11 . Try Testing with an Alternator Meter
If you are having trouble getting accurate readings while testing a blower motor, consider using an alternator meter. An alternator meter is designed specifically for testing electrical motors and can help you get more accurate readings.
12 . Consider Replacing the Motor if Tests Indicate Problems
If your tests indicate that there are problems with the blower motor, it is best to replace it. This will ensure that the motor is working properly and will help you avoid any future issues. Also, replacing the motor will help you save money in the long run as opposed to trying to repair it.
13 . Make Sure to Follow Safety Precautions During Testing
When testing a blower motor with a multimeter, it is important to make sure you follow safety precautions. First and foremost, make sure the power is off before attempting any tests. Also, make sure to wear protective gear such as rubber gloves and safety glasses. Finally, follow the manufacturer’s instructions for testing the motor.
By following these tips, you can ensure that you get accurate results when testing a blower motor with a multimeter. With the right tools and knowledge, you can ensure that your motor is working properly and will last for years. Good luck and happy testing!
Frequently Asked Question
What Precautions Should I Take When Testing a Blower Motor With a Multimeter?
Testing a blower motor with a multimeter can be dangerous if caution isn’t taken. It’s important to take extra precautions when testing any kind of electrical component, and that includes blower motors. Make sure you’re wearing protective equipment like safety glasses and insulated gloves before beginning your test. Additionally, be sure to disconnect the power source before you start.

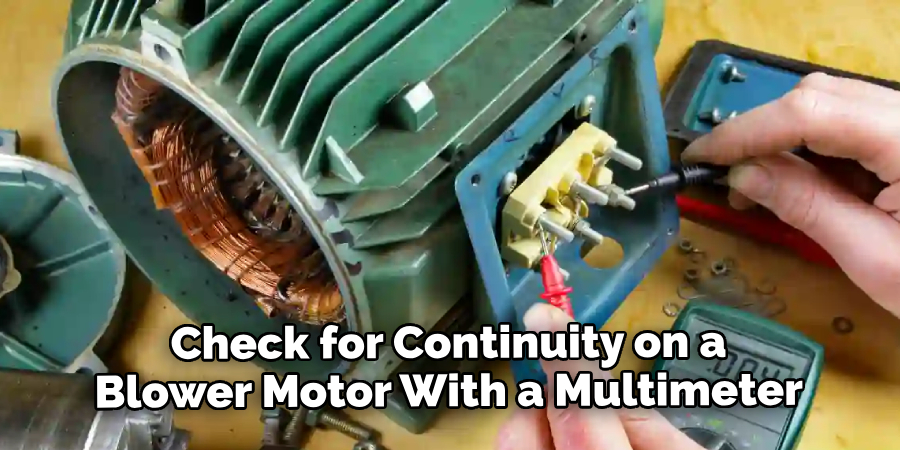

How Can I Check for Continuity on a Blower Motor?
To check for continuity on a blower motor with a multimeter, first, make sure that the power is disconnected from the unit. Then set your multimeter to the ohms setting and place one of the probes onto each end of the motor’s power leads. If there is continuity, you’ll see a reading on the display. If there is no continuity, then the blower motor needs to be replaced.
What Can Cause a Blower Motor to Fail?
There are several potential causes for a blower motor to fail, including faulty wiring connections, worn-out bearings, and overheating. Additionally, a failing blower motor can be caused by the buildup of dust, dirt, or other debris inside the unit. If you suspect any of these causes, it’s recommended that you replace the blower motor as soon as possible.
Can I Test a Blower Motor While It’s Connected to Power?
No – it’s not safe to test a blower motor while it is connected to power. Disconnect the power before beginning your tests or you may risk electrical shock or damage to the unit.
Conclusion
All in all, there are a few simple steps you can take to test your blower motor with a multimeter. Now that you understand the basics of how to test blower motor with multimeter, you’ll be equipped with the right knowledge and tools for when your blower motor goes haywire.
As always, safety first. Make sure to properly disconnect the power before handling any electrical devices or components. If you want to learn more about how to fix and maintain your car on your own, check out our blog for more tips and tricks from our experienced automotive professionals!
