The oxygen sensor, also called the O2 sensor, is an essential part of an internal combustion engine. It helps regulate the fuel-to-air ratio, allowing your vehicle to run smoothly. When the oxygen sensor is faulty, it can cause severe issues with your car’s performance, including increased emissions, reduced mileage, and engine damage. Therefore, it’s vital to test your oxygen sensor regularly to ensure its functionality.
In this blog post, we’ll show you how to test an oxygen sensor with a multimeter and explain why it’s an essential tool for any car owner.
Can You Test an Oxygen Sensor with A Multimeter?
If you’re experiencing issues with your vehicle’s oxygen sensor, you may wonder if you can test it with a multimeter. The good news is that, in many cases, this is possible. A multimeter is a versatile tool that can measure various electrical parameters, including resistance, voltage, and current.
By utilizing these capabilities, you can diagnose potential issues with your oxygen sensor and determine if it needs to be replaced. However, it’s important to note that the precise procedure for testing an oxygen sensor can vary depending on your specific vehicle’s make and model. As such, it’s a good idea to consult your owner’s manual or a reputable repair guide for detailed instructions before attempting any sensor testing.
Why Should You Test an Oxygen Sensor with A Multimeter?
Oxygen sensors are a vital component of any vehicle’s exhaust system. They help regulate the air-fuel mixture to ensure optimal performance and efficiency. Testing an oxygen sensor with a multimeter is crucial for diagnosing potential issues with your vehicle. Not only does it save money on costly repairs, but it also provides peace of mind knowing that your car is running smoothly.
A malfunctioning oxygen sensor can lead to decreased fuel economy, increased emissions, and poor engine performance. With a multimeter, you can quickly and easily test your oxygen sensor to accurately identify any issues and take the necessary steps to keep your car running at its best. So, whether you’re a seasoned mechanic or a DIY enthusiast, testing your oxygen sensor is essential in maintaining your vehicle’s longevity and performance.
How to Test an Oxygen Sensor with A Multimeter: A Comprehensive Guide
1. Identify the Location of Your Oxygen Sensor
Your first step in testing the oxygen sensor is to locate it, which varies depending on your vehicle’s make and model. Generally, it’s located on the exhaust manifold or the exhaust pipe itself, close to the catalytic converter. Once you’ve identified the oxygen sensor, disconnect the electrical wires from it before you begin testing.
2. Check the Resistance
Once you’ve located the oxygen sensor, you must use a multimeter to check its resistance. Set the multimeter to the Ohms setting and touch the leads to the oxygen sensor’s terminals. Depending on your vehicle’s specifications, it should show a resistance between 0.1-1.0 ohms. If the multimeter shows nothing, the sensor is faulty and needs replacing.
3. Check the Voltage
Your oxygen sensor also generates a voltage as it measures the oxygen levels in your exhaust flow. To check the voltage output of an oxygen sensor, you’ll need to switch the multimeter to the DC volts setting and connect the black lead to the oxygen sensor’s ground wire.
Connect the red lead to the oxygen sensor’s signal wire with the engine on and the car in neutral. The voltage reading should show an oscillating pattern between 0.1-1.0 volts. Your oxygen sensor needs replacement if the reading shows a steady voltage or fluctuates irregularly.
4. Check the Response Time
A working oxygen sensor should respond fast to changes in the air-to-fuel ratio. To check the response time, you’ll need to use a voltmeter, then connect the black lead to the oxygen sensor’s ground wire and the red lead to the oxygen sensor’s signal wire.
You’ll then need to start your vehicle and wait for the sensor to warm up before triggering its activity by turning the engine on and off several times. The voltage readings should reflect an immediate change in oxygen levels in the exhaust flow within two seconds. Any delays in the readings indicate a faulty sensor.
5. Check for DTC Codes

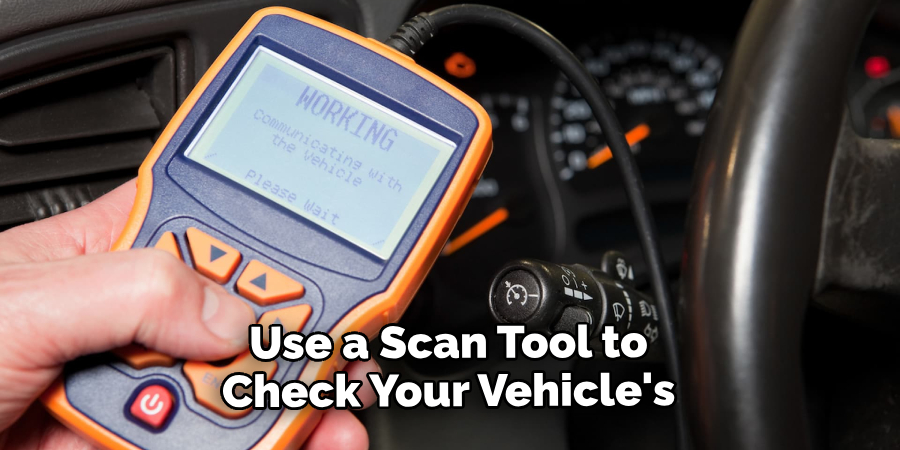

Lastly, you can use a scan tool to check your vehicle’s diagnostic trouble codes (DTCs) to see if any address the oxygen sensor. A faulty oxygen sensor usually triggers P0130 – P0135 and P0150 – P0155 DTC codes. If you find one or more of these codes, it’s likely that your car’s oxygen sensor is faulty and needs replacement.
6. Check the Heater Circuit
Your oxygen sensor also includes a heating element that warms up the sensor to ensure accurate readings. To test if this circuit works, you should set the multimeter to its Ohms setting and touch the leads to the terminals of your vehicle’s oxygen sensor heater circuit. The resistance reading should be between 5-10 ohms. If the reading is open or shorted, your oxygen sensor needs replacing.
7. Look for Damage
Lastly, you should inspect the exterior of the oxygen sensor to see if it has any visible damage, like corrosion or physical cracks, as this can cause false readings and inaccurate measurements. If you find any signs of wear and tear on the sensor, it’s best to replace it immediately.
By following these steps, you should be able to determine whether your car’s oxygen sensor is working and how long it will last before needing a replacement. Remember that a faulty oxygen sensor can cause your car’s engine to run inefficiently and cause significant damage if left unchecked.
Regularly inspect and test your oxygen sensor to ensure a healthy and safe driving experience. Furthermore, it’s always important to consult your vehicle manual as each car model has specific requirements for testing an oxygen sensor.
5 Considerations Things When You Need to Test an Oxygen Sensor with A Multimeter
1. Determine the Type of Oxygen Sensor
Before attempting to test an oxygen sensor with a multimeter, it is important to first determine the type of oxygen sensor that is installed on the vehicle. There are two main types of oxygen sensors, heated and unheated, and each type requires a different testing procedure. Heated oxygen sensors have an electrical connector with four or five wires, while unheated oxygen sensors only have two wires.
2. Gather Necessary Tools and Supplies

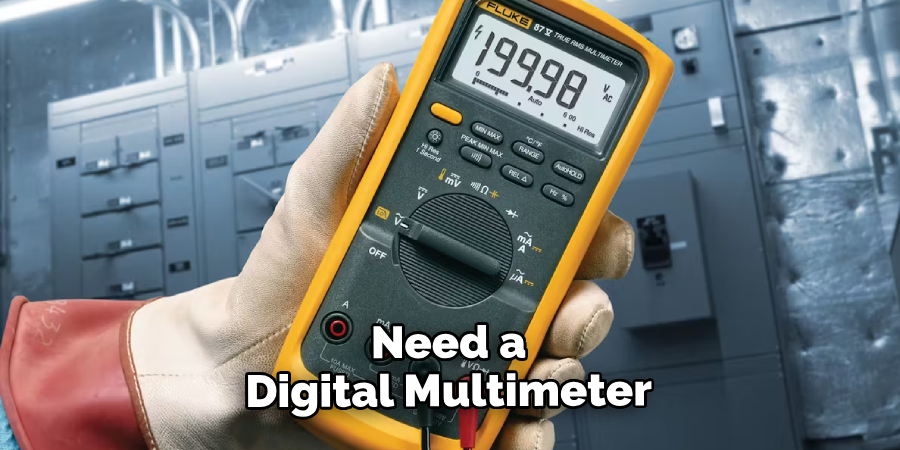

Once you have determined the type of oxygen sensor installed on your vehicle, you must gather the necessary tools and supplies for testing it. For testing a heated oxygen sensor, you will need a digital multimeter, a back probe kit, and an appropriate replacement part if needed. For testing an unheated oxygen sensor, you will need a digital multimeter and an appropriate replacement part.
3. Connect Multimeter to Oxygen Sensor

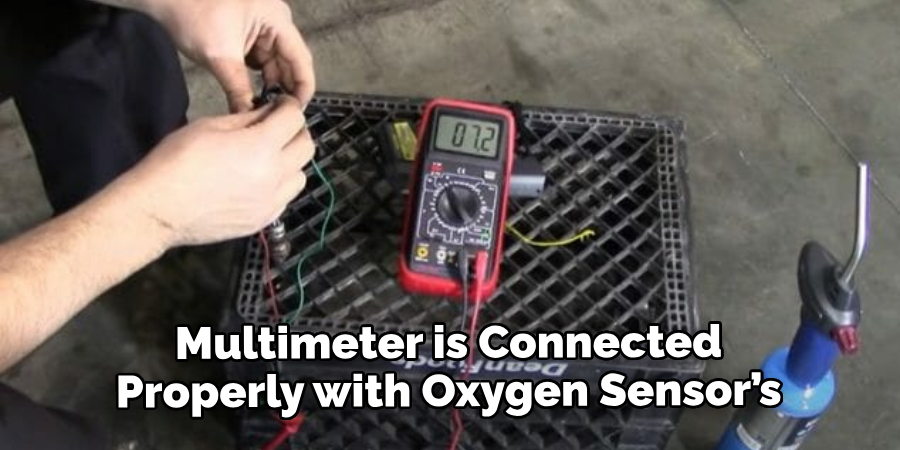

Once you have gathered all the necessary tools and supplies for testing your oxygen sensor, you can begin by connecting your multimeter to the connector on the oxygen sensor. When connecting your multimeter to the connector on the heated oxygen sensor, ensure you do not damage any wires or pins in the process. If any of them are damaged or bent out of shape, they should be replaced before continuing with the test procedure.
4. Test Voltage Outputs at Different RPMs
Once your multimeter is connected properly to your oxygen sensor’s connector, you can test its voltage outputs at different RPMs (revolutions per minute). This will help determine whether or not there is an issue with your vehicle’s fuel-air mixture ratio, which can cause poor engine performance or even damage over time if left unchecked.
To accurately measure voltage output from your oxygen sensor at different RPMs, refer to your vehicle’s service manual for specific instructions, as each makes/model may require different settings when using a digital multimeter.
5. Check Results Against Manufacturer Specifications
After completing all of your tests with your digital multimeter and recording all relevant data, such as voltage output at various RPMs from your vehicle’s engine bay area, compare these results against manufacturer specifications listed in online resources or in printed documents such as service manuals for further accuracy.
Suppose any readings taken during this process are significantly lower than expected. In that case, it may indicate something wrong with your vehicle’s fuel-air mixture ratio or overall fuel delivery system. In this case, further investigation may be required before attempting any repairs.
Benefits of Test an Oxygen Sensor with A Multimeter
Are you experiencing a decrease in gas mileage or an increase in emissions from your vehicle? That could be a sign of a faulty oxygen sensor. Before heading to a mechanic, consider testing the oxygen sensor yourself with a multimeter.
Not only is this an inexpensive method, but it also provides instant feedback on the performance of your sensor. By ensuring that your oxygen sensor is functioning properly, you will not only improve your vehicle’s fuel efficiency and reduce harmful emissions but also save money over time by avoiding costly repairs. Test your oxygen sensor with a multimeter today and experience the benefits for yourself!
Some Common Mistakes People Make When Trying to Test an Oxygen Sensor with A Multimeter
When it comes to testing an oxygen sensor with a multimeter, people tend to make a few common mistakes. One of the most critical errors is not allowing the sensor to warm up sufficiently before running the test. This can result in a faulty reading and an inaccurate problem diagnosis.

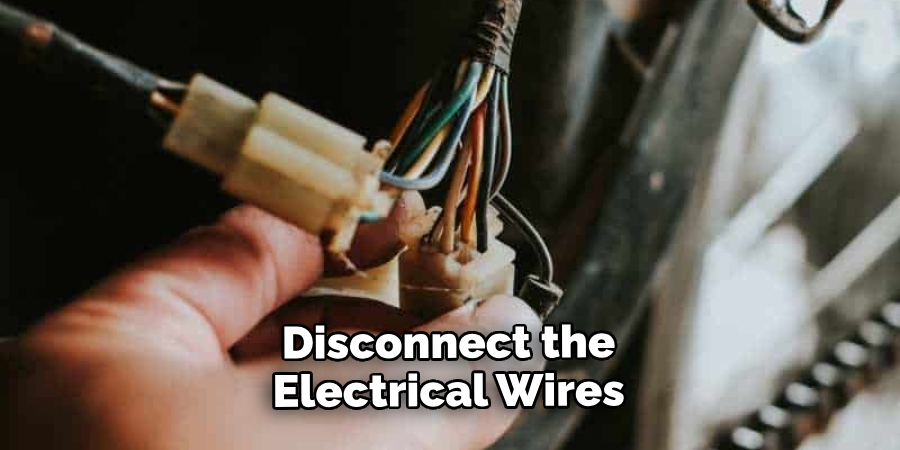

Another mistake is forgetting to disconnect the sensor’s circuit connections, which can interfere with the test results and potentially cause damage to the multimeter. It’s also essential to ensure that the multimeter is set correctly and that you’re using the correct range for the test. By avoiding these common pitfalls, you can ensure that your oxygen sensor test is accurate and helpful in diagnosing any potential issues.
Conclusion
Now that you know how to test an oxygen sensor with a multimeter, you can save yourself time and money by avoiding an unnecessary trip to the car dealership. Regularly testing your oxygen sensor will help keep your car running smoothly and efficiently, reducing harmful emissions and saving you money at the gas pump. Remember, if you’re uncertain about any of the steps or the readings you get, it’s best to consult with a professional mechanic.
