Testing a thermopile on a gas fireplace is an essential maintenance task that ensures the safety and efficiency of your heating system. A thermopile is a crucial component that generates an electrical voltage in response to heat from the pilot light or flame. This voltage signals the gas valve to remain open, allowing the fireplace to function properly. Understanding how to test a thermopile on a gas fireplace, prevent unsafe operating conditions, and prolong the lifespan of the appliance. In this guide, we’ll walk you through the steps necessary to accurately test a thermopile and address any potential issues you may encounter.

What Is a Thermopile?
A thermopile is a type of temperature sensor that consists of multiple thermocouples connected in series or parallel to convert thermal energy into electrical energy. In the context of a gas fireplace, the thermopile plays a vital role by providing a continuous voltage output in response to the heat produced by the pilot light. This output is essential for the safe operation of the fireplace, as it keeps the gas valve open, enabling the flow of gas to the burner.
Thermopiles are designed to be robust and can operate effectively in high-temperature environments, making them an integral component of gas appliances. Understanding the function and importance of a thermopile is crucial for maintaining the overall safety and efficiency of your gas fireplace.
Common Symptoms of a Faulty Thermopile

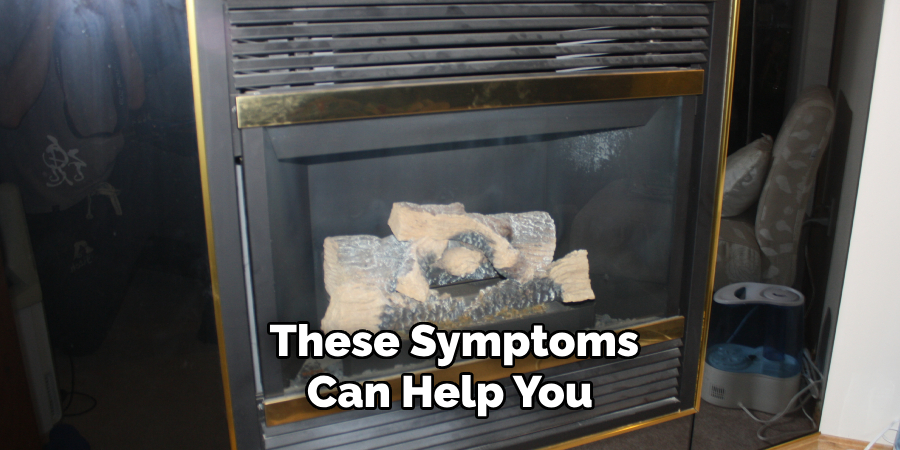

Recognizing the signs of a faulty thermopile can help you maintain the safe operation of your gas fireplace. Some common symptoms include:
- Intermittent Pilot Light: If the pilot light frequently goes out or does not stay lit, it may indicate that the thermopile is not generating adequate voltage to keep the gas valve open.
- Flame Size Issues: A weak or irregular flame can suggest that the thermopile isn’t receiving sufficient heat or is malfunctioning, affecting its ability to signal the gas supply.
- Gas Valve Not Opening: If the gas valve fails to open, preventing the fireplace from igniting, this could be a clear indication that the thermopile is not producing the necessary electrical output.
- Inconsistent Heating: If your fireplace does not heat consistently or performs poorly during operation, this may signal that the thermopile is struggling to function correctly.
- Unusual Noises: Odd sounds, such as clicking or popping from the fireplace mechanism, may indicate a problem with the thermopile or its connection to the gas valve.

Being vigilant about these symptoms can help you identify potential issues with the thermopile early, ensuring that your fireplace continues to operate safely and efficiently.
10 Methods How to Test a Thermopile on a Gas Fireplace
1. Understand the Role of the Thermopile
Before beginning any testing, it’s essential to understand the role of the thermopile. A thermopile is made up of multiple thermocouples connected in series, generating a small voltage when exposed to heat. This voltage is used to keep the gas valve open, allowing gas to flow to the burner. If the thermopile fails, the gas valve may close, preventing the fireplace from functioning. Knowing this helps you understand why testing the thermopile is crucial for diagnosing ignition issues and ensuring the safe operation of your gas fireplace.
2. Ensure Safety Before Testing
Safety is paramount when working with gas appliances. Before testing the thermopile, turn off the gas supply to the fireplace and ensure the area is well-ventilated. Allow the fireplace to cool completely to avoid burns or other injuries. Using a gas detector to check for leaks in the vicinity of the fireplace is also a prudent safety measure. By prioritizing safety, you minimize the risk of accidents and ensure a safe environment for performing maintenance tasks.
3. Visually Inspect the Thermopile
Begin by visually inspecting the thermopile for any signs of physical damage or wear. Look for discoloration, corrosion, or any loose or frayed wires. Ensure that the thermopile is properly positioned and securely mounted near the pilot light. Any visible issues could indicate a malfunction and may be the source of your problems. While a visual inspection alone may not diagnose all issues, it can help identify obvious problems that might require further investigation or immediate replacement.

4. Check the Pilot Light Flame
The pilot light flame is essential for the thermopile to function correctly. Check that the pilot light is burning steadily and that the flame is properly sized. The flame should be blue and should cover the thermopile tip adequately. If the flame is yellow, weak, or flickering, it may not generate enough heat to produce the required voltage. Adjust the pilot light or clean the pilot orifice if necessary to ensure a stable and adequate flame for proper thermopile operation.
5. Measure the Voltage Output of the Thermopile

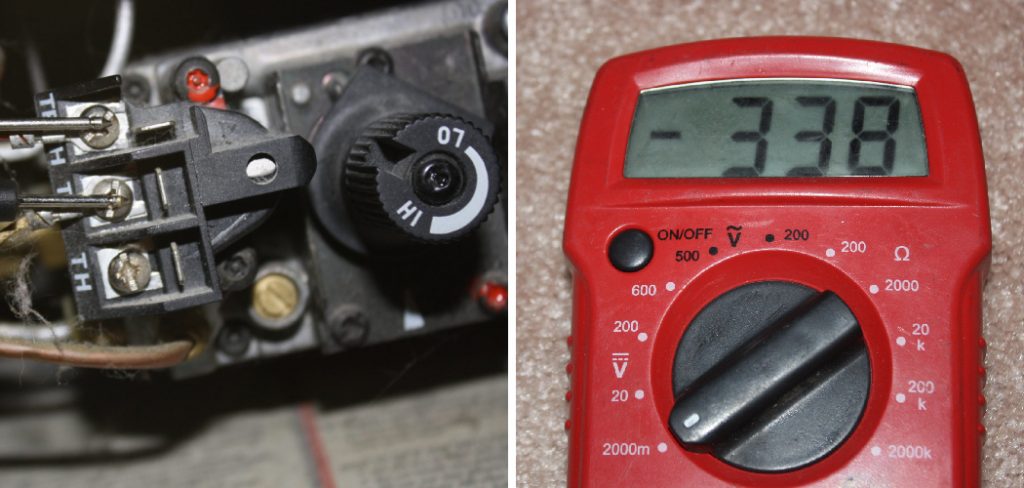

One of the most accurate methods to test a thermopile is to measure its voltage output. To do this, you will need a multimeter. First, turn the gas back on and ignite the pilot light. Set the multimeter to the DC voltage setting and connect the leads to the thermopile terminals. A properly functioning thermopile should generate a voltage between 300 and 750 millivolts, depending on the specific model and manufacturer’s specifications. If the voltage is significantly lower or absent, the thermopile may be faulty and require replacement.
6. Test the Thermopile Resistance
Testing the resistance of the thermopile can also provide valuable information about its condition. Turn off the gas and disconnect the thermopile from the gas valve. Use a multimeter set to the ohms (resistance) setting to measure the resistance between the thermopile terminals. The resistance should typically be very low, often in the range of a few ohms. A high resistance reading may indicate a malfunctioning thermopile. Compare your measurements with the manufacturer’s specifications to determine if the thermopile is operating within the expected range.
7. Check for Electrical Continuity
Testing for electrical continuity helps ensure that the thermopile’s connections are intact and that there are no breaks in the circuit. With the gas turned off and the thermopile disconnected, set your multimeter to the continuity mode. Place the meter’s leads on the thermopile terminals. If the multimeter beeps or shows continuity, the circuit is intact. No continuity could indicate a broken wire or a faulty thermopile that needs replacement. This test is essential for verifying that the thermopile is correctly transmitting its signal to the gas valve.

8. Inspect the Thermopile Connections

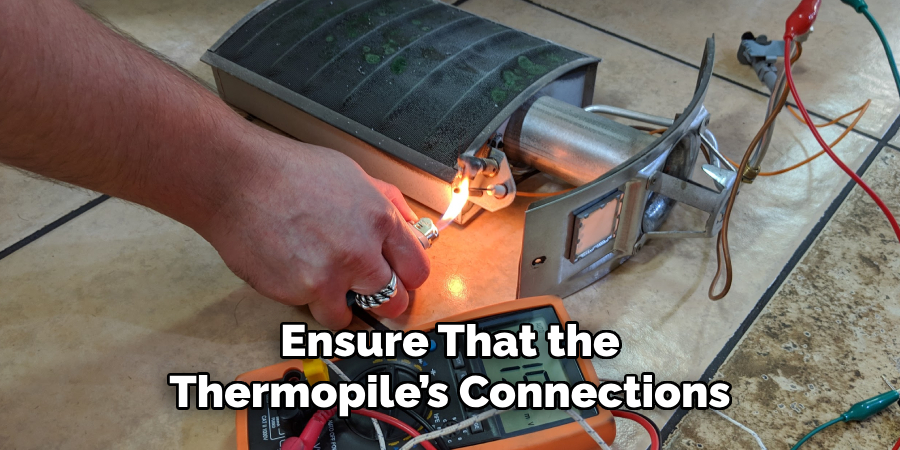

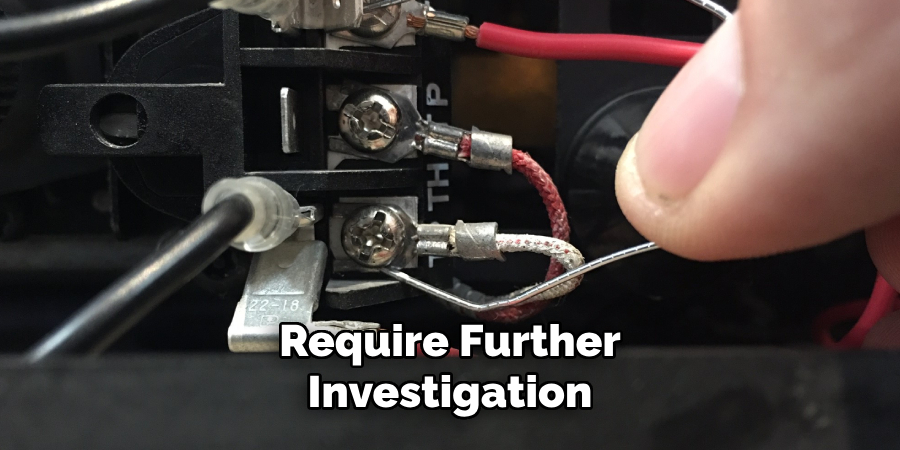

Examine the connections between the thermopile and the gas valve. Ensure that the wires are securely attached and that there is no corrosion or loose connections. Corroded or loose connections can affect the voltage reading and the performance of the thermopile. Clean any corrosion from the connections using electrical contact cleaner and ensure that the wires are properly connected. Secure connections are crucial for the proper functioning of the thermopile and the overall safety of the gas fireplace.
9. Test the Thermopile with a Different Pilot Light
If you suspect the thermopile is faulty but want to rule out issues with the pilot light, you can test the thermopile with a different pilot light. This involves using a known working pilot light assembly and connecting it to your thermopile. If the thermopile produces the correct voltage with the different pilot light, the original pilot light may be the issue. This method helps isolate the problem and determine whether the thermopile or the pilot light is at fault.
10. Consult the Manufacturer’s Specifications
Finally, always refer to the manufacturer’s specifications for your particular thermopile model. The manufacturer’s guidelines will provide specific information on voltage output, resistance, and operational parameters. Comparing your test results with these specifications ensures that you correctly interpret the readings and determine whether the thermopile is functioning properly. If the thermopile is outside the specified range or shows signs of malfunction, follow the manufacturer’s recommendations for replacement or repair.

Things to Consider When Testing a Thermopile

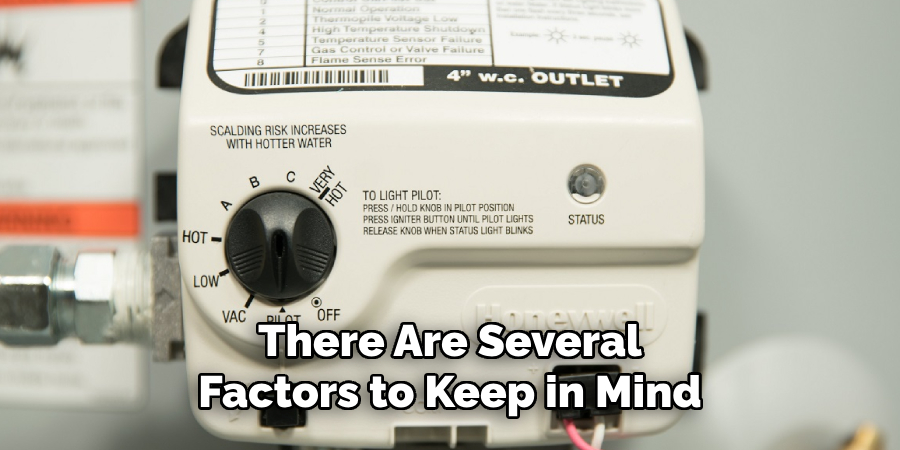

When testing a thermopile, there are several factors to keep in mind to ensure accurate results and safe practices. First, always prioritize safety: make sure the area is well-ventilated, and turn off the gas supply before beginning any testing. It is crucial to have a reliable multimeter, as inaccurate readings can lead to misleading conclusions about the thermopile’s functionality. Additionally, consider the age and maintenance history of the thermopile; older units may be more prone to wear and tear. Lastly, keep in mind the ambient environmental factors, such as temperature and humidity, which can affect the thermopile’s performance during testing.
Conclusion
Testing a thermopile on a gas fireplace involves a combination of visual inspections, voltage measurements, and resistance tests to ensure accurate and safe operation. By understanding the role of the thermopile, ensuring safety, checking pilot light conditions, measuring voltage and resistance, and inspecting connections, you can diagnose and address potential issues effectively. Using these methods helps maintain the functionality of your gas fireplace, ensuring reliable performance and safety. Thanks for reading, and we hope this has given you some inspiration on how to test a thermopile on a gas fireplace!
