Removing a cotter pin may seem like a straightforward task, but it requires proper technique to ensure that the pin is extracted safely and efficiently, without damaging the surrounding components.
Cotter pins are commonly used to secure various mechanical parts and are designed to prevent movement or loosening. In this guide, we will explore the tools needed, step-by-step instructions for how to remove a cotter pin, and tips to facilitate the removal process, making it easier for both beginners and experienced individuals to tackle this mechanical task with confidence.

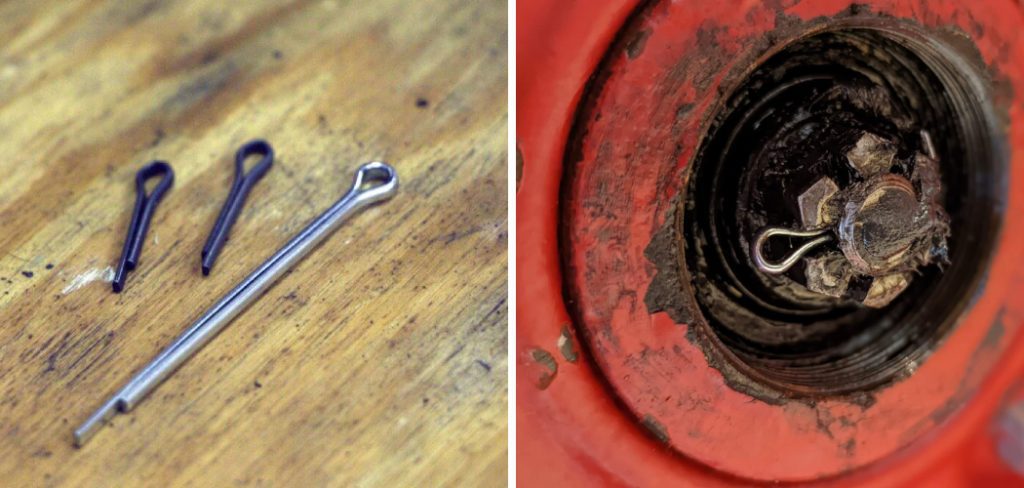

What Is a Cotter Pin?
A cotter pin is a type of fastener typically made from a flexible metal wire, designed to secure two or more components together by preventing movement or loosening. Its unique design features a split end, allowing one end to be inserted through a hole in a fastened component, while the other end is bent to create a secure lock.
Cotter pins are widely used in various applications, including automotive and machinery assembly, due to their simplicity and effectiveness in maintaining structural integrity. Despite their modest appearance, these small components play a crucial role in ensuring safety and functionality in countless devices and systems.
Importance of Proper Cotter Pin Removal
Properly removing a cotter pin is essential to maintain the integrity and functionality of the components it secures.
An improper removal can lead to bending or breaking of the pin, potentially causing damage to the associated parts or creating hazardous situations. Additionally, if the cotter pin is not removed correctly, it may leave remnants that can interfere with the operation of machinery or mechanical systems.
Understanding the importance of correct techniques not only ensures a smooth removal process but also extends the lifespan of both the cotter pin and the components it connects, making it crucial for both safety and efficiency in mechanical maintenance.
10 Methods How to Remove a Cotter Pin

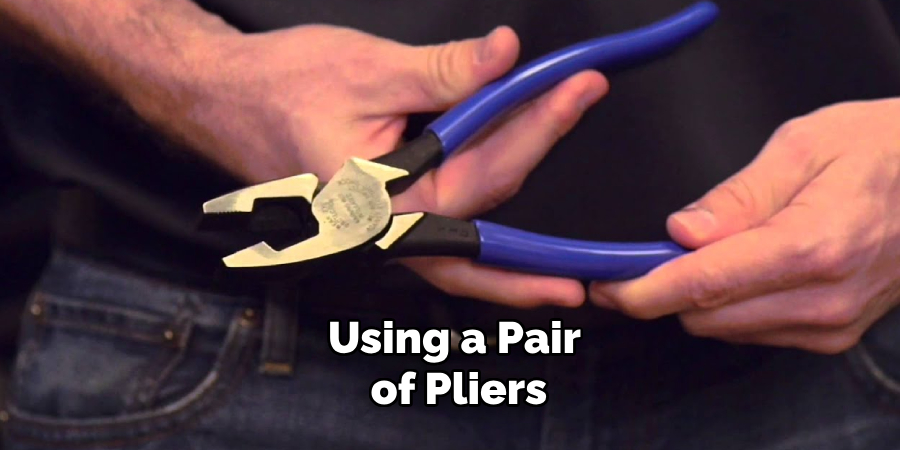

1. Using Pliers for a Direct Pull
One of the most straightforward methods to remove a cotter pin is by using a pair of pliers. Needle-nose pliers are particularly effective due to their narrow tips, which can easily grip the ends of the cotter pin.
To remove the pin, start by straightening the bent ends using the pliers. Once the ends are straight, firmly grasp the looped head or the straight end of the cotter pin with the pliers and pull it out in a straight motion. This method is quick and effective for cotter pins that are not rusted or overly bent. Pliers provide a strong grip, allowing you to remove the pin with minimal effort and without damaging the surrounding components.

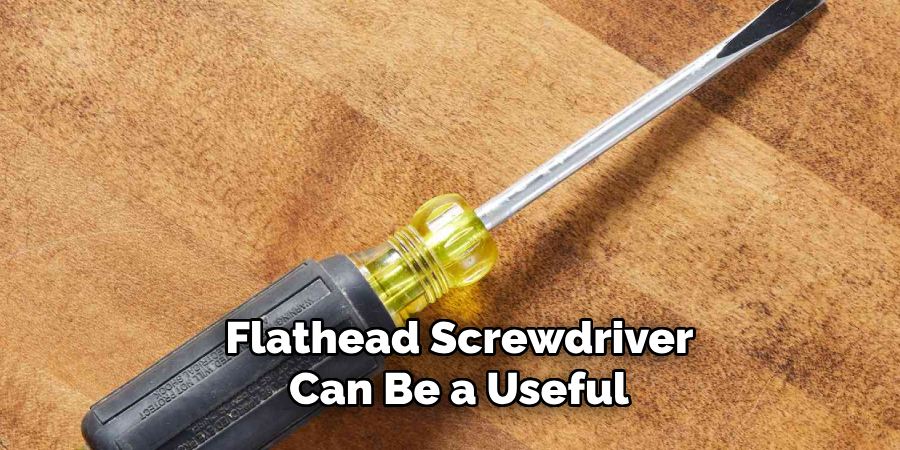

2. Using a Flathead Screwdriver
A flathead screwdriver can be a useful tool for prying out a cotter pin, especially if it’s tightly fitted or difficult to grip with pliers. Begin by inserting the flathead screwdriver between the cotter pin and the hole it’s inserted into.
Carefully twist the screwdriver to create a gap and loosen the pin. Once the pin is loosened, you can either continue to pry it out with the screwdriver or switch to pliers to pull it out completely. This method is particularly effective for removing cotter pins that are flush with the surface or slightly embedded in the material. The flathead screwdriver provides the leverage needed to dislodge the pin without causing damage.
3. Tapping with a Hammer
If the cotter pin is stuck or corroded, gently tapping it with a hammer can help loosen it. Start by straightening the bent ends of the pin with pliers. Then, using a small hammer, lightly tap the looped head of the cotter pin or the straight end, depending on which side is accessible.
The tapping motion helps break any rust or corrosion that may be holding the pin in place. After tapping, use pliers or a flathead screwdriver to pull the pin out. This method is particularly useful for removing old or rusted cotter pins, as the hammer’s vibrations help to free the pin from the hole.
4. Using a Punch Tool
A punch tool is effective for driving out cotter pins that are difficult to remove with just pliers or a screwdriver. To use this method, first straighten the ends of the cotter pin. Then, place the punch tool against the looped head or the straight end of the pin, depending on which side is accessible
. Tap the punch tool with a hammer to drive the cotter pin out of its hole. The punch tool allows you to apply direct force to the pin, making it easier to remove, especially if the pin is stuck due to rust or dirt. This method is particularly useful for larger cotter pins that require more force to remove.

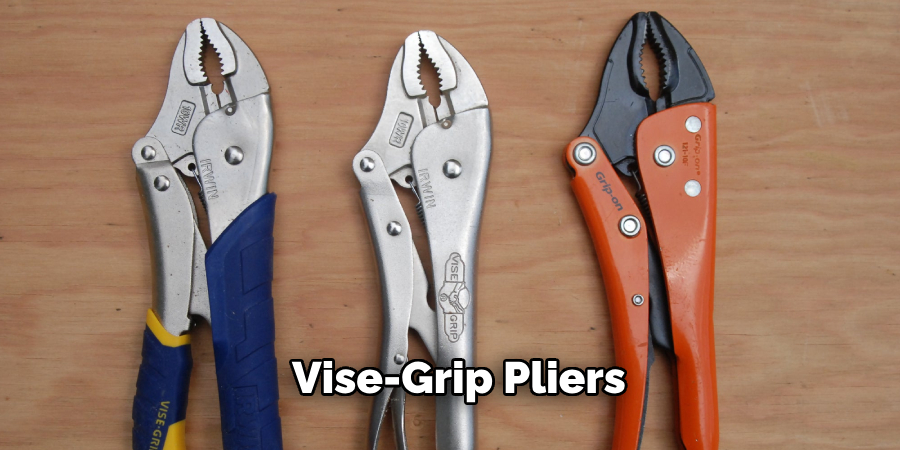

5. Twisting with Vise-Grip Pliers
Vise-grip pliers, also known as locking pliers, can provide extra leverage when removing stubborn cotter pins. Start by straightening the pin’s bent ends with regular pliers or a screwdriver. Then, clamp the vise-grip pliers onto the looped head or the straight end of the cotter pin.
Once the pliers are securely locked onto the pin, twist and pull the pin out in a straight motion. The vise-grip pliers provide a firm hold and allow you to apply more torque, making it easier to remove cotter pins that are stuck or difficult to grip with regular pliers. This method is especially useful for removing cotter pins in tight or hard-to-reach areas.
6. Cutting the Cotter Pin
If the cotter pin is too rusted or damaged to remove intact, cutting it may be the best option. Use a pair of wire cutters or a rotary tool with a cutting wheel to snip the pin close to the hole. After cutting, use pliers to pull out the remaining pieces of the pin. This method is a last resort for cotter pins that cannot be removed by other means, as it destroys the pin in the process. However, cutting is often the most efficient way to deal with heavily corroded or bent cotter pins that are impossible to remove otherwise.
7. Using a Cotter Pin Puller Tool
A cotter pin puller is a specialized tool designed specifically for removing cotter pins. The tool features a hooked end that slides under the looped head of the cotter pin, allowing you to pull it out with ease.
To use the cotter pin puller, first straighten the ends of the pin. Then, insert the hooked end of the tool under the looped head and pull the pin out in a straight motion. The cotter pin puller is particularly useful for removing multiple pins quickly or for dealing with pins in tight spaces. It’s a handy tool to have in your toolkit if you frequently work with cotter pins.
8. Lubricating with Penetrating Oil

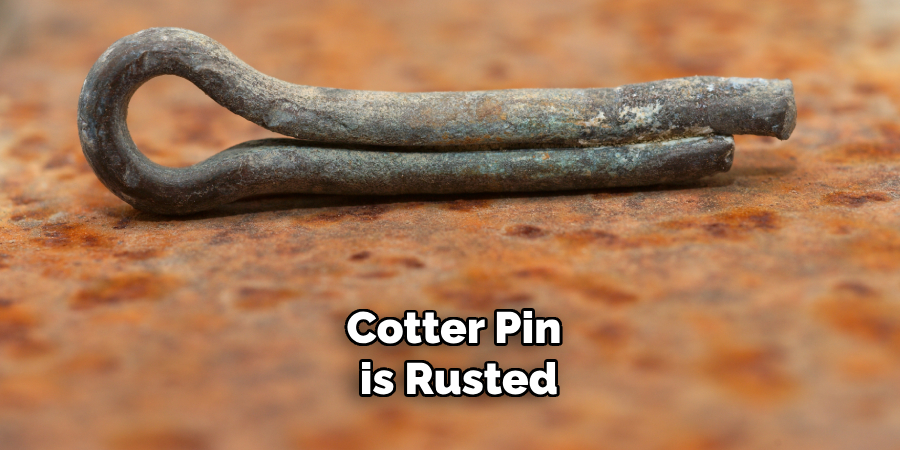

If the cotter pin is rusted or stuck, applying penetrating oil can help loosen it. Spray the oil directly onto the pin and the surrounding area, allowing it to seep into the joint for a few minutes. The oil helps to break down rust and corrosion, making it easier to remove the pin. After the oil has had time to work, use pliers or a cotter pin puller to extract the pin. This method is particularly effective for removing cotter pins that have been exposed to moisture or harsh environments, where rust and corrosion are likely to occur.
9. Heating the Area
For cotter pins that are severely rusted or frozen in place, applying heat can help to loosen them. Use a heat gun or a propane torch to gently heat the area around the pin. The heat causes the metal to expand, breaking the rust bond and making the pin easier to remove.
After heating, use pliers or a cotter pin puller to remove the pin. Be cautious when using this method, as excessive heat can damage the surrounding components or cause injury. This method is best suited for metal parts that can withstand high temperatures without damage.
10. Regular Maintenance to Prevent Rust
Regular maintenance and inspection of cotter pins can help prevent them from becoming difficult to remove in the first place. Periodically check cotter pins for signs of rust, corrosion, or wear, and replace them as needed.
Applying a light coat of lubricant to the pins and their surrounding components can help prevent rust and make future removal easier. Regular maintenance not only prolongs the life of the cotter pins but also ensures that they can be easily removed when necessary, saving time and effort in the long run.
Conclusion
In conclusion, understanding the various methods for removing cotter pins can significantly ease the maintenance of machinery and tools. From using simple hand tools like pliers and screwdrivers to more specialized equipment like cotter pin pullers and punch tools, each technique offers unique advantages depending on the specific situation.
Additionally, proper care and regular maintenance can prevent the challenges associated with rust and corrosion, ensuring that cotter pins remain functional and easily removable. Thanks for reading, and we hope this has given you some inspiration on how to remove a cotter pin!
