How to Measure Torque on a Bolt

Are you a mechanical engineer or someone who works with nuts and bolts on a regular basis? If so, then understanding how to measure torque on a bolt is an essential skill that you must possess.

Measuring torque on a bolt is critical to ensuring the integrity and reliability of various mechanical assemblies. Proper torque application prevents bolt failure, loosening, or excessive stress on connected components. Torque measurement involves applying a precise amount of rotational force to a bolt, typically performed using a torque wrench or similar tool.

Understanding the correct torque specifications for different materials and applications helps maintain optimal performance and safety in engineering projects. This guide will walk you through the methods and tools required for accurately measuring torque on bolts, emphasizing best practices and safety considerations.

What Will You Need?

Before measuring torque on a bolt, there are a few essential items that you will need to have on hand. These include:

• A Torque Wrench: This is the primary tool used for measuring torque on bolts and comes in various types and sizes. Selecting the right kind of torque wrench is crucial based on the bolt size, application, and level of accuracy required.
• A Socket or Hex Key: This is used to securely attach the torque wrench to the bolt head.
• Lubricant: Applying lubricant to the bolt threads and nut interface can help achieve more accurate measurements by reducing friction.
• Safety Equipment: As with any mechanical task, it’s essential to wear appropriate safety gear, such as gloves and eye protection, to prevent accidents.

10 Easy Steps on How to Measure Torque on a Bolt

Step 1. Prepare the Area:

Begin by ensuring that your workspace is clean, organized, and well-lit, which allows for better visibility and reduces the risk of accidents. Remove any clutter that might hinder your ability to work efficiently. Additionally, having all your tools and materials within easy reach is essential to streamline the process.

Confirm that the surfaces you will work on are stable and secure to prevent any movement affecting torque measurements. Before proceeding, verify that the bolt and the surrounding components are free from dirt, debris, and any obstructions that could interfere with your ability to apply torque accurately. Taking the time to prepare your area properly sets the foundation for a successful torque measurement process.

Step 2. Select the Appropriate Torque Value:

Before applying torque, it is crucial to consult the manufacturer’s specifications or engineering guidelines to determine the correct torque value for the specific bolt configuration you are working with. This value is typically expressed in foot pounds (ft-lbs) or Newton meters (N-m). It varies depending on factors such as the bolt’s material, the type of joint, and the application.

Make sure to take note of any additional considerations, such as whether the bolt is lubricated or dry, as this can influence the torque requirements. Once you have identified the correct torque value, write it down or keep it in a visible location to refer to during the measurement process. Selecting the appropriate torque value is essential for ensuring the integrity and functionality of the assembly you are working on.

Step 3. Calibrate the Torque Wrench:

Before use, it’s crucial to check the accuracy of your torque wrench. Over time, these tools can become less precise due to wear and tear or exposure to different temperatures and environments. As a result, calibrating your torque wrench before each use is necessary to ensure reliable measurements. You will need a known weight and an appropriate adapter for your specific torque wrench type to calibrate the tool. Follow the manufacturer’s instructions carefully when performing this task.

Step 4. Attach the Socket or Hex Key:

With your torque wrench calibrated and the appropriate torque value determined, the next step is securely attaching the socket or hex key to the bolt. First, select a socket or hex key that matches the size of the bolt, ensuring a snug fit to prevent slippage during the torque application.

Place the socket onto the bolt head and ensure it is properly seated. If using a hex key, insert it into the bolt head until fully engaged. Once attached, connect the torque wrench to the socket or hex key, ensuring the attachment mechanism is secure.

A secure connection is vital because any play in the system can lead to inaccurate torque readings. Before applying torque, take a moment to double-check your setup to confirm that everything is aligned correctly, as even minor misalignments can affect the precision of your measurements. Properly connecting the tools lays the groundwork for accurate torque application and helps maintain the assembled components’ integrity.

Step 5. Apply the Torque:

With your torque wrench securely attached to the bolt, it’s time to apply the torque. Begin by positioning yourself comfortably to allow good leverage and control of the wrench. Grasp the torque wrench firmly, ensuring your hand is positioned correctly on the handle for optimal grip. Slowly and steadily turn the wrench in the direction specified by the manufacturer, typically clockwise, until you reach the predetermined torque value.

Increasing pressure gradually rather than applying sudden force is important, as this can lead to overshooting the desired torque. Most torque wrenches emit a click or a visual indicator when the set torque is achieved, so pay close attention to this signal. As you reach the target torque, stop applying force immediately to prevent over-tightening, which can damage the bolt or the surrounding components.

Step 6. Recheck the Torque Measurement:

After reaching the specified torque value, it is essential to verify that the measurement is accurate. This can be done by removing the torque wrench and then reattaching it to the bolt in the same manner as before.

Apply the torque again, ensuring you are still in the correct direction and using a consistent technique. If the torque wrench emits a click or other indication before reaching the set value, this confirms that the initial application was accurate. If not, you may need to repeat the torque application process to ensure proper measurement. This step is vital in confirming the assembly’s integrity and avoiding potential issues stemming from improper torque application.

Step 7. Document the Torque Measurement:

Once you have confirmed the accuracy of the torque application, it’s important to document the measurement for future reference. Record the torque value applied, along with the date, time, and any relevant details about the assembly or project. This documentation will be beneficial for maintenance records, troubleshooting, and ensuring compliance with specifications over time.

If working as part of a team, share this information with other members to maintain consistency in the assembly process. Proper record-keeping not only helps in tracking the effectiveness of the torque application but also assists in identifying any potential issues that may arise in the future.

Step 8. Inspect the Assembly:

After documenting the torque measurement, the next step is thoroughly inspecting the assembled components. Check for any visible signs of damage, misalignment, or deformation that may have occurred during the torque application process. Pay special attention to the bolt and surrounding materials, ensuring no excessive strain has been placed on them. A careful inspection helps identify potential issues early on, ensuring the overall integrity and safety of the assembly.

If any discrepancies are found, address them immediately by loosening and re-torquing as necessary, following the previous steps to ensure proper torque is applied. Regular inspections not only enhance the longevity of the assembly but also contribute to a higher level of operational reliability.

Step 9. Finalize the Assembly:

Once you have inspected the assembled components and ensured everything is in order, it’s time to finalize the assembly. This involves securely fastening any additional bolts or components that may be part of the assembly.

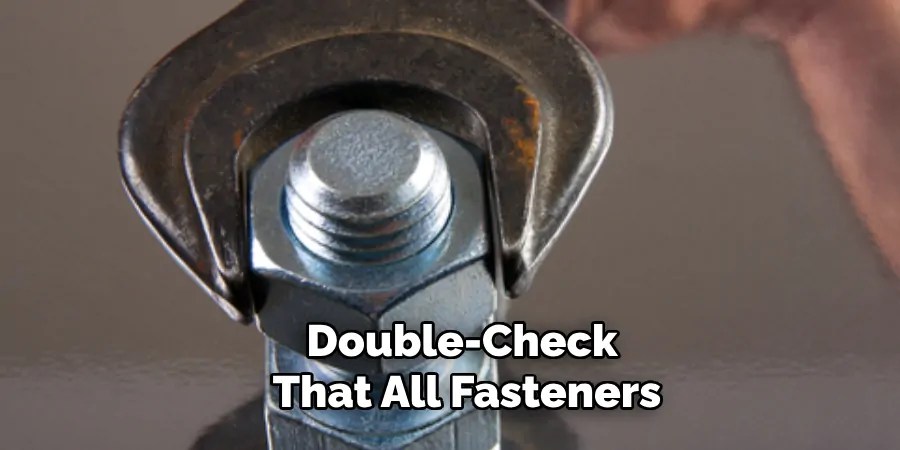

If there are covers, shields, or other protective elements to be installed, do so at this time to ensure that all exposed areas are adequately secured. Double-check that all fasteners are tightened according to the specifications provided by the manufacturer. Lastly, clean the work area and dispose of any waste materials responsibly, ensuring that the parts are free from debris and contamination.

Step 10. Conduct a Functional Test:

After finalizing the assembly, performing a functional test to confirm that everything operates as intended is crucial. This test should involve running the system or equipment to ensure that all components work harmoniously without unusual noises or vibrations. Observe the performance closely, verifying no leaks, excessive movement, or other signs of trouble.

Test any controls, switches, or connected systems to validate their functionality if applicable. This step acts as a quality assurance measure, ensuring that the assembly meets operational standards and is safe for use.

Should any issues arise during the test, it may be necessary to revisit previous steps, such as inspecting components or reapplying torque, to rectify the problems and enhance the assembly’s reliability.

By following these ten steps, you can effectively and accurately apply torque to assemble components, ensuring the integrity and reliability of your work.

Conclusion

Accurately measuring torque on a bolt is essential for ensuring the integrity and safety of any assembled components.

By meticulously following each step of the process on how to measure torque on a bolt—from selecting the appropriate torque wrench and applying the specified torque to rechecking measurements and documenting results—you can achieve reliable and consistent outcomes. Regular inspections and functional testing contribute further to the longevity and performance of the assembly.

Remember, proper torque application not only prevents damage from over-tightening but also enhances the overall operational reliability.

Adhering to these guidelines ensures that your assemblies meet the required specifications and function as intended.
