Measuring nut size can seem daunting, but with the right tools, it’s a breeze. It is important to get the correct nut size. In this blog post, we’ll show you how to measure nut size, as well as provide a few tips to make the process easier.
So whether you’re replacing your lug nuts or just want to know their size for peace of mind, read on for all the information you need!
What Does M10 Mean on a Nut?
The size of nuts is typically expressed as a number and letter combination, such as “M10.” The first part (M) indicates the type of nut, while the second part (10) tells you its size. An M10 nut is 10mm in diameter, with a typical pitch of 1.5mm. This means that for every 1.5mm you turn it clockwise, it will move forward by 10mm.
It’s important to note that nut sizes can vary depending on the type and manufacturer. Always check the specifications of your specific nut to ensure you are using the correct size.
Why is It Important to Know What M10 Means on a Nut?
Well, if you ever need to replace or purchase a new nut, knowing its size will ensure you get the right one. And if you’re working on a project that requires specific measurements, having this knowledge will save you time and frustration.
But perhaps more importantly, using the correct nut size is crucial for safety reasons. A loose or improperly sized nut can lead to equipment failure, causing damage or even injury. So don’t overlook the importance of knowing what M10 means on a nut!
You may also come across other letter and number combinations when it comes to nuts, such as M5, M6, M8, etc. These follow the same principle of indicating size and pitch. For example, an M6 nut is 6mm in diameter with a pitch of 1mm.
Tools Needed to Measure Nut Size
In order to measure nut size accurately, you’ll need to have the right tools on hand. You’ll need the following:
A Metric Ruler or Calipers:
Using a ruler is the easiest way to measure nut size. Simply place the nut on a flat surface and use the ruler to measure its diameter across the center. If you have calipers, they will provide more precise measurements.
Thread Pitch Gauge:
This tool can help you determine the pitch of the threads on your nut. It contains multiple blades with different thread pitches that you can compare to your nut’s threads. This will help ensure you get the right size nut for your needs.
Nut and Bolt Size Checker:
If you’re not sure what size your nut is or if it has been stripped or damaged, a nut and bolt size checker can help. Simply place the nut on the checker until you find the hole where it fits snugly. This will tell you the nut size you need to replace it.
10 Methods How to Measure Nut Size
1. Use a Ruler or Tape Measure:
You can measure the size of many nuts with a ruler or tape measure. To do this, place the nut on a flat surface and then use your measuring device to determine its length and width. If the nut is round, measure the distance across its diameter. Although this method may be the simplest, it may not provide the most accurate results.
It should be noted that if the nut is coated with corrosion, paint or other materials, this method may not work well. You may need to clean the nut first before measuring.
2. Use Calipers:
If accuracy is critical, calipers are an excellent tool for determining nut sizes. Place the nut in the opening of the calipers and close them slowly until they make contact with the nut’s sides; read off the measurements displayed on the digital screen or dial indicator. Try to ensure that the nut is placed squarely in the calipers’ opening to get the most accurate results. Make sure to reset the calipers before measuring each nut due to slight variations in size.
You may need to clean the nut first before measuring if it is coated with corrosion, paint or other materials.
3. Use Standard Gauge Sizes:
Many nuts have standard gauge sizes that correspond to their size range; for example, M8 nuts generally refer to metric 8mm diameter machine screws. These standard gauge sizes can be helpful in identifying the nut size without having to measure each one. Keep in mind, however, that some nuts may be slightly larger or smaller than the standard gauge size.
It’s always a good idea to double-check the size using another method, especially if the nut is an odd size. You can also refer to sizing charts for more information.
4. Use a Thread Gauge:
Thread gauges are designed to measure the thread thickness of a nut and can be used to identify its size. To use, place the nut into the appropriate slot in the gauge and turn it until it fits snugly. The indicated number on the gauge typically corresponds to a standard size or measurement, which you can then use to determine your nut’s size. If the nut is not a standard size, you can use the thread gauge to measure its thickness and then calculate its diameter.
You may need to clean the nut first before measuring if it is coated with corrosion, paint or other materials. It’s also important to note that thread gauges may not work for all types of nuts, such as square or hex nuts.
5. Use a Thread Pitch Gauge:
Thread pitch gauges can be used to identify the number of threads per inch (TPI) for a given nut size. Place the nut into one of the appropriate slots in the gauge and rotate it until it fits snugly; read off the TPI from the indicated number on the gauge. The corresponding thread size can be found by searching online or referring to charts that list standard sizes for specific TPI measurements.
The nut will need to be cleaned first if it is coated with any materials that may affect the accuracy of the TPI measurement.
6. Use a Drill Bit:
If you know that the nut is round, you can use a drill bit to measure its size. Place a drill bit in the center of the nut and then check which size it lines up with; this will tell you the diameter of the nut. If the nut is not perfectly round, use a ruler or tape measure to determine the widest distance between two points on its circumference and then subtract this from the drill bit’s size to get the nut’s diameter. Try to measure from the outer edges of the nut to get the most accurate result.
However, keep in mind that this method may not be very accurate and should only be used as a last resort. You may also need to clean the nut first before measuring.
7. Use Thread Checkers:
Thread checkers are designed to measure thread pitch on nuts and bolts, so they can be used as an alternative way to determine nut sizes. To use one, place your nut into either side of the gauge and press down until it clicks; read off the number indicated by the gauge to get your measurement in millimeters or inches, depending on what type of thread checker you’re using.
Although this method may not be as accurate as measuring with calipers, it should provide a close estimation of the nut’s size. It is important to note that thread checkers only work for nuts with standard threads and may not be suitable for all types of nuts.
8. Use a Bolt and Nut Thread Checker:
This type of thread checker is larger than a standard thread checker and can measure both the inner and outer threads of a nut or bolt. Insert your nut into one side of the gauge and then adjust the other side until it fits snugly; read off the number indicated by the gauge to get your measurement in millimeters or inches. Make sure to note which side you used for the nut and which for the bolt, as this will ensure that your measurement is accurate.
But keep in mind that this method may not work for all types of nuts, especially those with non-standard threads. It is always best to double-check your measurement using another method.
9. Use Digital Calipers:

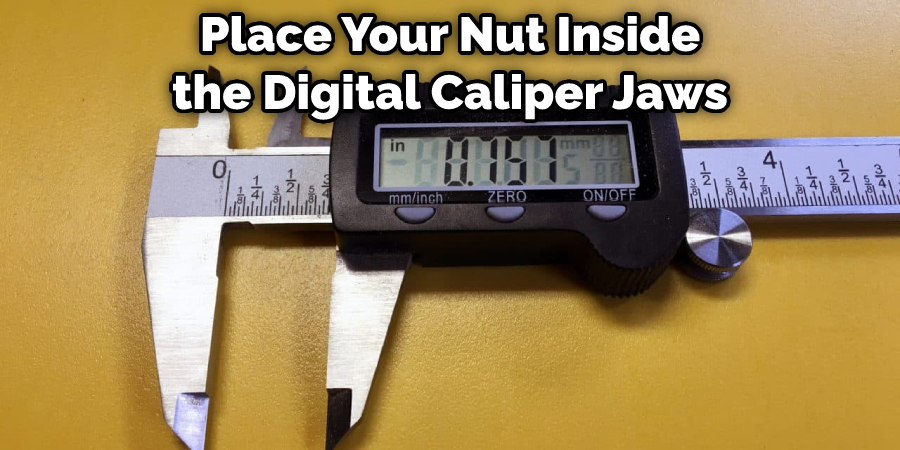

Digital calipers are another tool for measuring nuts that offer exceptional accuracy. To use, place your nut inside the digital caliper jaws and slowly close them until they make contact with each side of the nut; read off the measurements displayed on the digital screen to get the exact size of your nut. Although this method is more time-consuming than others, it’s the most accurate way to measure nuts and should be used if you need precise measurements.
You may need to clean the nut first before measuring if it is coated with corrosion, paint or other materials. And as always, make sure to reset the calipers before measuring each nut for best results. Overall, there are various methods for determining nut sizes, and it’s important to choose the one that best suits you.
10. Use a Screw Gauge:
Finally, screw gauges are a simple and effective way to measure nuts. Place your nut into one side of the gauge and turn it until it fits snugly; read off the number indicated by the gauge or check for an accompanying table that describes each measurement in inches or millimeters. However, note that screw gauges may not be as accurate as other methods, so it’s best to use this tool only if you need a general estimation of the nut’s size.
It’s important to note that different types of nuts may require different methods of measurement, and not all methods may work for every type of nut. It’s always best to double-check your measurements using multiple techniques to ensure accuracy. When in doubt, consult sizing charts or seek professional help to determine the size of your nut. With these methods and resources, you can confidently.
Whether you’re measuring nuts at home or in a professional environment, it’s important to choose the right tool for the job. By following these steps, you can easily determine the size of any nut with accuracy and precision.
Things to Consider When Measuring Nut Size:
1. The Type of Nut:
Different types of nuts require different measurement methods. For example, walnuts are often measured by the number of halves per pound, while almonds may be measured by weight or volume.
It’s important to understand the type of nut you’re measuring and choose the appropriate method for obtaining accurate results.
2. The Size of the Measuring Tool:
It is important to use an appropriate measuring tool for each nut type in order to get accurate results. A ruler may not be suitable for measuring very small nuts like pine nuts, and a kitchen scale might be too big for measuring tiny pistachios.
It’s important to choose a measuring tool that is appropriate for the size of the nut you are trying to measure. You may need to use different tools for different size ranges.
3. The Shape of the Nut:

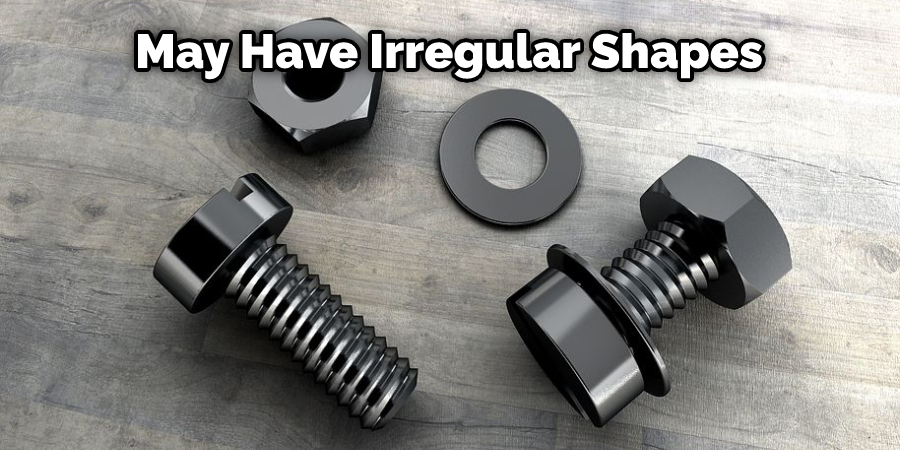

Some nuts, such as hazelnuts, may have irregular shapes that affect the accuracy of measurement if they are not taken into consideration when being measured.
4. The Desired Accuracy:
If a precise measurement is required, it may be necessary to measure each nut individually rather than using bulk measurements.
5. The Method of Storage:
The way in which the nuts are stored can affect their size and shape, and this should be taken into account when measuring them. For instance, if they are being kept in a sealed container, they may shrink due to dehydration over time.
6. Existing Standards:
It is important to adhere to existing standards for measuring nut sizes where possible, such as the United States Department of Agriculture (USDA) grading standards for walnuts or almonds. This will help ensure consistent results across different batches of nuts that need to be measured.
7. Quality Control Protocols:
Quality control protocols should be put in place to ensure that the measurement method is consistent and accurate across all batches of nuts. This will help to prevent any inaccuracies, which could lead to costly errors down the line.
8. Safety:
It is important to take necessary safety precautions when measuring nut sizes, such as wearing gloves or using a protective barrier between the hands and the nuts being measured. This can help to reduce contact with any potential allergens present on the surface of the nuts.
You Can Check It Out Repair Chainsaw Rust
Frequently Asked Questions:
Q: Can I Use a Ruler to Measure the Size of Any Nut?
A: While a ruler may work for some larger nuts, it is not recommended as an accurate measurement method for smaller or irregular-shaped nuts. You may need to use specialized tools, such as calipers or thread checkers, for more precise measurements. It is always best to choose the appropriate tool for each specific nut size and shape.
Q: Can I Use a Kitchen Scale to Measure Nuts?
A: Kitchen scales are suitable for measuring larger quantities of nuts by weight, but they may not be accurate enough for measuring individual nuts. Additionally, some smaller nuts may not register on a kitchen scale due to their size. It is best to use a measuring tool specifically designed for nuts, such as calipers, thread checkers, or screw gauges.
Q: Is There a Standard Measurement Unit for Nut Sizes?
A: The USDA uses sizing standards for certain types of nuts in the United States, but there is no universal standard measurement unit for all types of nuts. It is important to determine the appropriate unit of measurement for each specific nut type and to adhere to any existing standards, such as USDA grading standards. Overall, it is best to use consistent units of measurement within your own processes for accurate and reliable results.
Q: Are There Any Safety Precautions I Should Take When Measuring Nuts?
A: It is important to consider any potential allergens present on the surface of the nuts and take necessary precautions, such as wearing gloves or using a protective barrier between your hands and the nuts being measured. Additionally, it is important to follow safety protocols when working with any measuring tools, such as calipers or screw gauges, to prevent injury. Always prioritize safety when handling nuts and measuring their sizes.
Conclusion:
Measuring the size of a nut is not as easy as it may seem. There are many different methods that can be used, and each has its own advantages and disadvantages. The best way to choose a method is to experiment with different ones and see which gives the most accurate results.
Whichever method you choose, make sure you follow the instructions on how to measure nut size carefully to get the most accurate measurement possible.
