How to Measure E Clips

E clips, also known as snap rings or retaining rings, are essential components in various mechanical assemblies. They serve the purpose of retaining other components on shafts or in housings, ensuring a secure fit within equipment.

Accurately measuring E clips is crucial for selecting the right size for your project, as improper fit can lead to mechanical failures or inefficient operation. In this section, we will discuss the key steps and techniques for how to measure e clips effectively, ensuring that you have the correct specifications for your needs.

What Are E Clips?

E clips are metal fasteners shaped like the letter “E” and are used to hold components in place on shafts or within housings. They are designed to fit into a groove, providing a secure grip and preventing axial movement of the parts they retain.

E clips come in various sizes and materials, including steel, stainless steel, and plastic, allowing for versatility in different applications. Commonly found in machinery, automotive components, and electronic devices, they are often preferred for their ease of installation and removal, making them a practical choice for both professional and DIY projects.

10 Methods How to Measure E Clips

1. Using a Caliper to Measure the Shaft Diameter

The most straightforward method for measuring an E-clip is by determining the diameter of the shaft it’s meant to fit. A caliper is an ideal tool for this purpose due to its precision and ease of use. To begin, gently open the jaws of the caliper and position them around the shaft where the E-clip will be placed. Carefully close the jaws until they make contact with the shaft, ensuring that the caliper is perpendicular to the axis of the shaft to avoid skewed measurements. Read the measurement on the caliper display or scale, which will give you the shaft diameter.

This measurement is crucial because E-clips are typically sized based on the shaft diameter they are meant to fit. For example, if the shaft measures 5mm, you would generally look for an E-clip designed for a 5mm shaft. This method provides a direct and accurate measurement that is essential for selecting the correct E-clip size.

2. Measuring the Groove Diameter with a Caliper

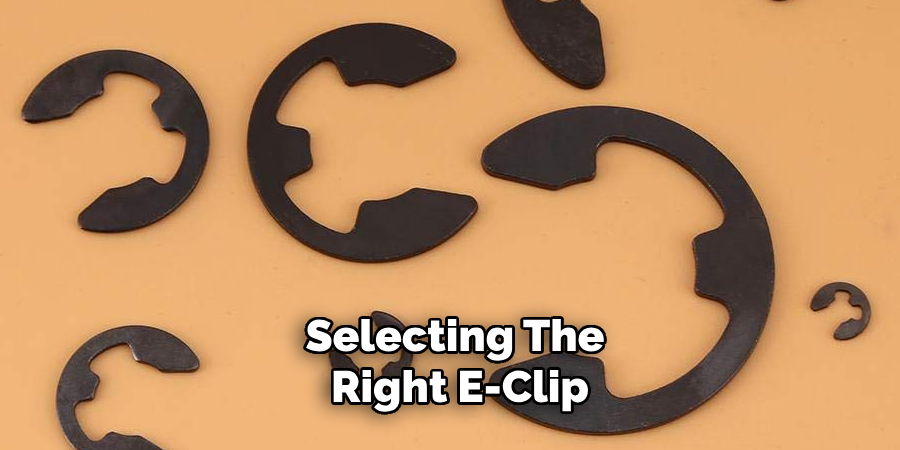

Another critical measurement for selecting the right E-clip is the diameter of the groove on the shaft where the E-clip will sit. The groove diameter determines the inner diameter of the E-clip that will fit securely in place. To measure this, use a caliper to carefully position its jaws into the groove on the shaft.

Ensure the caliper is aligned correctly within the groove to avoid misreading the measurement. Gently close the jaws until they contact the sides of the groove, then take the reading from the caliper’s display or scale. This measurement will help you confirm that the selected E-clip will snap into place within the groove without being too loose or too tight. Accurate groove measurement ensures that the E-clip will perform its function effectively, preventing components from slipping or moving along the shaft.

3. Using a Micrometer for Precise Measurement

For applications requiring high precision, a micrometer can be used to measure the shaft or groove diameter.

A micrometer offers even greater accuracy than a caliper, making it ideal for situations where precise measurements are critical. To measure the shaft diameter with a micrometer, place the shaft between the spindle and anvil of the micrometer. Slowly turn the thimble until the spindle contacts the shaft, applying consistent pressure without over-tightening.

Read the measurement from the micrometer’s scale, which provides a highly accurate reading in either millimeters or inches, depending on the micrometer’s design. This method is particularly useful in precision engineering or when dealing with very small E-clips, where even slight deviations in measurement can affect performance.

4. Measuring the E-Clip Itself with a Caliper

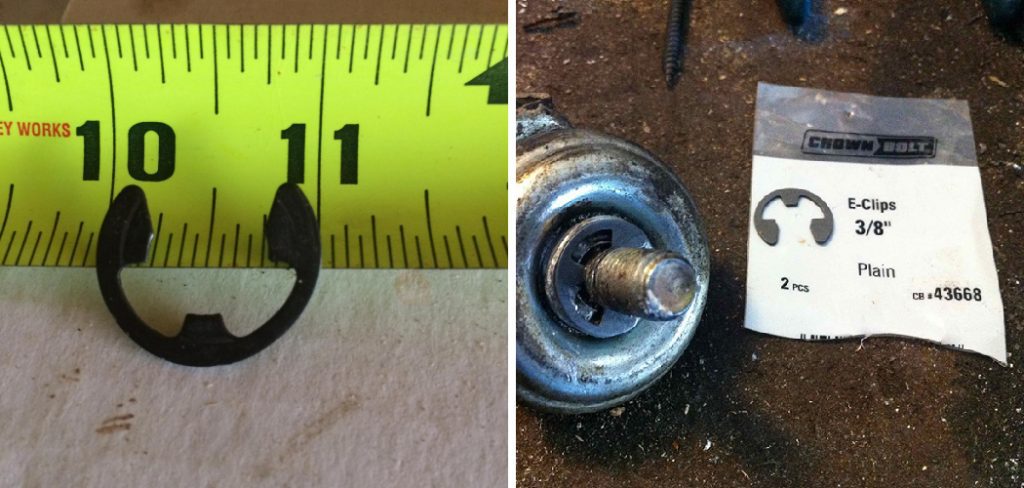

If you have an existing E-clip and need to measure it to find a replacement, you can measure the clip directly using a caliper. Start by measuring the external diameter of the E-clip by positioning the caliper’s jaws on the outer edges of the clip.

Record this measurement, as it represents the outer diameter of the clip when installed. Next, measure the internal diameter by positioning the jaws inside the clip’s opening. This measurement gives you the minimum shaft size that the E-clip can secure. Finally, measure the thickness of the E-clip by closing the caliper’s jaws on the clip’s cross-section.

5. Using a Digital Caliper for Enhanced Precision

A digital caliper can enhance the precision of your measurements when working with E-clips. Unlike a standard caliper, a digital caliper provides an electronic readout, eliminating the possibility of human error when reading the scale.

To measure the shaft or groove diameter with a digital caliper, follow the same steps as with a traditional caliper: open the jaws, position them around the shaft or within the groove, and close them gently until they make contact.

The digital display will provide a precise measurement, often down to the hundredths of a millimeter or thousandths of an inch. This enhanced precision is particularly beneficial in applications where the E-clip’s fit is critical to the performance and safety of the assembly.

6. Using a Template or Gauge

Templates or gauges designed specifically for measuring E-clips can be a quick and efficient method, especially in situations where multiple E-clips of different sizes need to be measured or sorted. These tools typically consist of a series of cutouts or slots corresponding to different E-clip sizes.

To use a template or gauge, simply place the E-clip into the corresponding slot until you find the one that fits snugly. The slot that matches the E-clip’s dimensions will indicate its size. This method is particularly useful in manufacturing or repair settings where speed and efficiency are important, as it allows for rapid measurement and identification of E-clip sizes without the need for calipers or micrometers.

7. Using a Ruler or Measuring Tape

While not as precise as a caliper or micrometer, a ruler or measuring tape can be used to obtain a rough measurement of an E-clip or the corresponding shaft and groove. This method is useful in situations where precision is not critical, or when other tools are not available.

To measure the shaft diameter, simply wrap the measuring tape around the shaft and read the measurement, or lay the shaft across the ruler and measure its width. For the groove diameter, use the ruler to measure the width of the groove directly. Similarly, you can measure the E-clip itself by laying it flat on the ruler and measuring its external and internal diameters. While this method provides only an approximate measurement, it can be sufficient for selecting an E-clip when exact precision is not required.

8. Comparing with a Known E-Clip

If you have a known E-clip of the correct size, you can use it as a reference to measure other clips or shafts. This comparative method involves placing the known E-clip alongside the one you wish to measure or against the shaft and groove where it will be installed. By visually comparing the sizes, you can determine whether the unknown clip is the same size as the reference clip.

This method is particularly useful in situations where precision tools are unavailable, or when you need to quickly verify that a replacement E-clip matches the original. While this method relies on visual comparison and may not provide precise measurements, it can be effective for ensuring that the new E-clip is close enough in size to function correctly in its intended application.

9. Using a Vernier Caliper for Detailed Measurements

A Vernier caliper is a type of caliper that includes a Vernier scale for increased precision, allowing you to read measurements more accurately than with a standard caliper. To measure the shaft or groove diameter with a Vernier caliper, follow the same procedure as with a traditional caliper, but use the Vernier scale to obtain a more precise reading.

The Vernier scale allows you to measure down to fractions of a millimeter or inch, making it ideal for applications where precise measurements are critical. This method is particularly useful when working with very small E-clips or in situations where even a slight deviation in size could affect the performance of the assembly.

10. Using a Depth Gauge for Groove Measurement

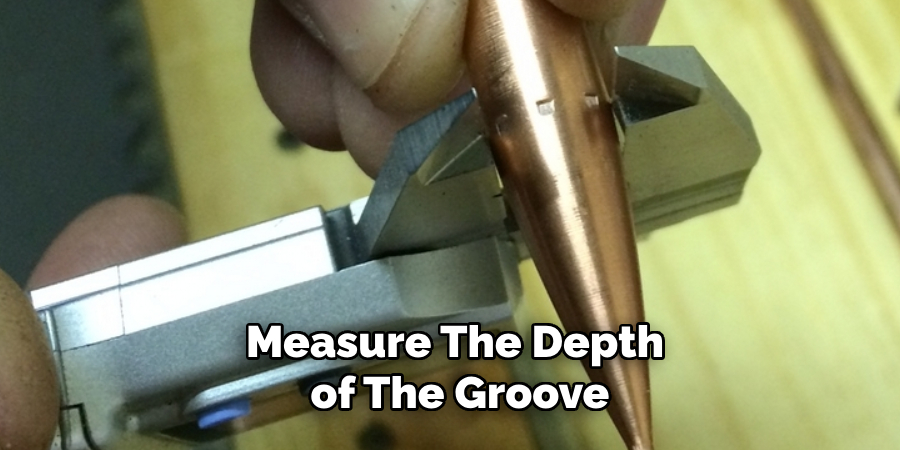

A depth gauge, often found on calipers or as a standalone tool, can be used to measure the depth of the groove where the E-clip will be installed. This measurement is important because it ensures that the E-clip will sit flush within the groove, preventing it from protruding or being too loose.

To use a depth gauge, position the tool’s measuring rod into the groove, then extend the rod until it touches the bottom of the groove. Read the measurement on the gauge to determine the groove depth.

Conclusion

In conclusion, accurately measuring E-clips is essential for ensuring proper fit and function in various applications. Whether you choose to use calipers, templates, rulers, or comparative methods, each technique offers its own advantages depending on the precision required for the task at hand.

Understanding these measurement methods not only aids in selecting the appropriate E-clip size but also enhances the overall performance and reliability of the assembly it is used in. Thanks for reading, and we hope this has given you some inspiration on how to measure e clips!
