How to Machine Alumina Ceramic

Written By

Enrique

/

Are you curious about the process of machining alumina ceramic? This material is known for its high strength and chemical resistance, making it a popular choice in various aerospace, automotive, and medical industries.

How to Machine Alumina Ceramic

How to machine alumina ceramic presents unique challenges and requires specific techniques due to the material’s hardness and brittleness. Alumina, known for its excellent wear resistance, high strength, and thermal stability, is widely used in various industries, including aerospace, medical, and electronics. Proper machining methods enhance the performance of alumina components and ensure precise dimensions and surface finishes.

In this guide, we will explore essential tools, techniques, and best practices for successfully machining alumina ceramic, providing insights catering to novice and experienced machinists. Let’s dive in!

What Will You Need?

Before you can start machining alumina ceramic, having the right tools and equipment is essential. These include:

  • High-speed cutting (HSC) machines or CNC milling machines
  • Diamond-coated cutting tools
  • Lubricants such as water-soluble oils or coolants.

Additionally, having a stable and rigid workholding system is crucial to avoid any movement of the material during machining, as this may result in inaccurate cuts.

10 Easy Steps on How to Machine Alumina Ceramic

Step 1: Prepare the Workspace

Creating an efficient workspace is fundamental for successfully machining alumina ceramic. Begin by ensuring that your work area is clean and free of debris, as any contaminants can affect both the machining process and the quality of the final piece. It’s essential to have a well-lit environment to see your work and the tools you’re using clearly. Additionally, organize all necessary tools within arm’s reach to maximize efficiency and minimize downtime.

Secure Your Cnc Milling Machine

Next, secure your CNC milling machine or high-speed cutting machine on a stable, vibration-free surface. Any movement from the base can negatively impact the accuracy of your cuts. Moreover, check the calibration of your machines regularly to ensure they are set up correctly for precise machining.

Finally, consider implementing safety measures such as goggles and gloves to protect yourself from dust and debris when machining the brittle alumina ceramic. This preparation will set the foundation for a successful machining operation and help in achieving the desired outcome right from the start.

Step 2: Select the Appropriate Cutting Tools

Choosing the proper cutting tools is crucial when machining alumina ceramic, given its hardness and brittleness. Diamond-coated cutting tools are highly recommended for this material due to their superior hardness and wear resistance. These tools can effectively handle the intricate tasks of machining alumina while maintaining sharpness over extended periods.

Additionally, consider the geometry of the cutting tool, as tools with a positive rake angle can enhance cutting efficiency and reduce the risk of chipping. It’s imperative to verify that your tools are compatible with your machining equipment to ensure optimal performance and prevent any potential issues during the machining process.

Step 3: Establish the Correct Speed and Feed Rates

Setting the appropriate speed and feed rates is essential for effectively machining alumina ceramic. Typically, a slower cutting speed is recommended to prevent excessive heat buildup, which can lead to cracking or chipping of the brittle material. Start by consulting your diamond-coated cutting tool specifications for optimal speed ranges, usually measured in revolutions per minute (RPM).

For feed rates, aim for a more conservative approach; a lower feed rate allows for better control and reduces the likelihood of tool wear and part damage. Conducting trial runs can help you fine-tune these parameters for your specific setup, ensuring you achieve the desired balance between efficiency and quality in your machined components.

Step 4: Implement Proper Cooling Techniques

Cooling Techniques Are Vital

Cooling techniques are vital when machining alumina ceramic to prevent overheating and ensure tool longevity. Utilizing water-soluble oils or coolants can help dissipate heat during the machining process. Apply the coolant generously at the cutting interface to maintain a stable temperature. Additionally, consider using a mist cooling system, which disperses a fine coolant mist, minimizing thermal shock while improving chip removal. Regularly monitor the temperature of both the cutting tool and the workpiece to ensure they remain within acceptable limits.

Step 5: Monitor the Machining Process

Vigilantly monitoring the machining process is crucial to achieving optimal results when working with alumina ceramic. Watch for signs of tool wear, such as changes in cutting sound or vibrations indicating a need for tool replacement. Observe the quality of the machined surface to identify any defects or inconsistencies early on. Continuous assessment allows you to make adjustments to cutting speeds, feed rates, or cooling methods as necessary to avoid compromising the integrity of the material.

Step 6: Make Precision Cuts

Precision is key in machining alumina ceramic cuts. Based on the tooling and machine setup, use the appropriate machining strategies, such as climb milling or conventional milling. Ensure that the cuts are made incrementally and that excessive depths are avoided at once to minimize the risk of chipping. Keeping a steady hand and focusing on the work will help achieve the desired dimensions and finish.

Step 7: Inspect Machined Parts

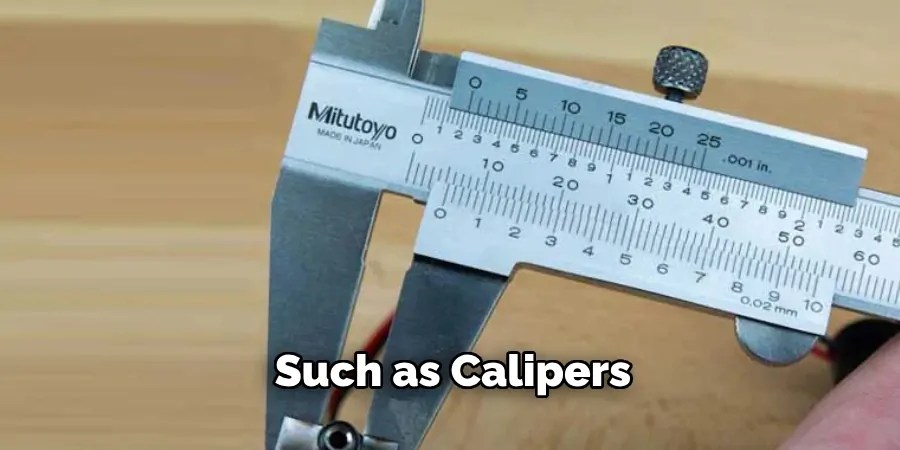

Such as Calipers

Once machining is completed, inspecting the machined parts thoroughly is critical. Use precision measuring tools such as calipers and micrometers to check dimensions against your specifications. Additionally, examine the surface finish for any irregularities or defects requiring further attention. Implement any necessary refinements or adjustments before proceeding to the final steps to ensure the components meet quality standards.

Step 8: Clean the Work Area

Cleaning up the workspace following machining is essential for both safety and efficiency. Remove debris, chips, and coolant residue to prevent slipping hazards and maintain a tidy environment for future projects. It’s also essential to clean the cutting tools and machinery after use to prolong their lifespan and ensure they remain in optimal working condition. Dispose of waste materials by local regulations to minimize environmental impact.

Step 9: Store Tools and Materials Properly

Proper storage of tools and materials used in machining alumina ceramic contributes to their longevity and readiness for future projects. Store diamond-coated cutting tools in protective cases or on racks to prevent dulling or damage. Keep alumina ceramics in their designated containers, ensuring they are labeled and organized. A structured storage system saves time and reduces the risk of misplacing essential components.

Step 10: Review and Optimize the Process

After completing the machining project, take the time to review the entire process. Identify any challenges encountered and note successful techniques that worked well for future reference.

Gathering feedback from team members or conducting a performance analysis can provide valuable insights for process optimization. Continuous improvement will enhance efficiency and quality in subsequent machining operations of alumina ceramic.

By following these steps and implementing best practices, you can effectively machine alumina ceramic, producing precise components with minimal risk of damage or failure.

5 Things You Should Avoid

Avoid Utilizing Tools
  1. Using Incorrect Tooling: Avoid utilizing tools not specifically designed for machining ceramic materials. Standard steel tools can quickly become dull and lead to poor machining outcomes. Always opt for diamond-coated or other suitable cutting tools.
  2. Overheating the Material: Avoid high cutting speeds and insufficient cooling, as these can generate excessive heat, leading to cracking or chipping of the alumina ceramic. Always monitor temperatures and use appropriate cooling methods.
  3. Skipping the Inspection Process: Pay attention to inspecting your machined parts after the operation. Failing to check for defects or dimensional inaccuracies can result in costly errors or rework later.
  4. Inadequate Workholding: Avoid poor clamping techniques that can lead to vibrations during machining. Ensure the workpiece is securely held to maintain stability and prevent movement that could compromise precision.
  5. Ignoring Safety Measures: Pay attention to safety protocols. Always wear appropriate personal protective equipment (PPE) and follow established safety procedures to protect yourself when handling tools and materials.

Avoiding these common mistakes can significantly improve your success rate when machining alumina ceramic.

Can You Drill Alumina Ceramic?

Yes, it is possible to drill alumina ceramic. However, specialized tools and techniques are required to avoid damaging the material. Diamond-coated or carbide-tipped drills are optimal for drilling alumina ceramic, as they can withstand the high heat generated during the process. Using a slow speed and generous amounts of coolant while drilling is crucial to prevent cracking or chipping. Careful monitoring and frequent breaks also help maintain stable temperatures and prolong tool life.

Overall, drilling alumina ceramic requires precision, patience, and appropriate tools and techniques to achieve successful results. If done correctly, you can create precise holes in the material without compromising its integrity.

Conclusion

How to machine alumina ceramic presents unique challenges that require careful consideration and planning.

You can achieve high-quality results by understanding the specific properties of alumina and employing the right tools and techniques. Emphasizing precision, regular inspection, and adherence to best practices will minimize defects and enhance the longevity of the materials and the machinery used. Staying informed about advancements in machining technology and continuously reviewing your processes will allow for ongoing improvement and efficiency in future projects.

Ultimately, with the right approach, machining alumina ceramic can produce durable, accurately finished components that meet stringent quality standards.
