Are you looking for a robust and reliable way to anchor materials into concrete, brick, or block walls? Look no further than wedge anchors! Wedge anchors are one of the most commonly used concrete anchors, known for their strength and stability.
How to install a wedge anchor is a straightforward process that provides a secure fastening solution for various construction and home improvement projects. These anchors are particularly useful for securing items to concrete, such as machinery, railings, or fixtures, ensuring stability and safety.
This guide will walk you through the essential steps to effectively install a wedge anchor, from selecting the appropriate size and type to ensuring proper placement and tightening for maximum hold. Whether you’re a DIY enthusiast or a seasoned professional, mastering the installation of wedge anchors will enhance the reliability of your structures and installations.
What Will You Need?
Before we dive into the installation process, let’s review the materials and tools you will need to install a wedge anchor:
- Wedge anchors (ensure they are suitable for the type of base material you are anchoring into)
- Hammer drill
- Drill bit (appropriate size for your wedge anchor and base material)
- Vacuum or compressed air tool (optional but recommended for dust removal)
- Masonry brush
- Safety gear (gloves, safety glasses, ear protection)
- Wrench or socket set
Once you have gathered all the necessary materials and tools, you can begin the installation process.
10 Easy Steps on How to Install a Wedge Anchor
Step 1: Choose the Right Location

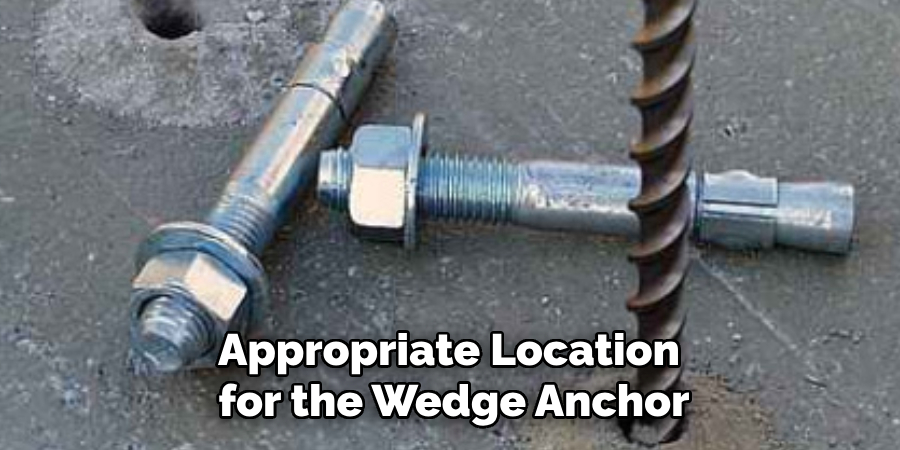

Begin by selecting the appropriate location for the wedge anchor. Ensure the area is free of any obstructions and debris that could interfere with the installation process. Mark the exact position where you want to secure the anchor, aligning it correctly with any fixtures or machinery it will support.
Step 2: Drill the Hole
Once you have marked the location, it’s time to drill the hole for the wedge anchor. Use your hammer drill with the appropriate drill bit size to create a hole in the concrete or masonry material. Make sure to drill to the correct depth; the hole should be slightly more profound than the length of the wedge anchor to allow for any debris at the bottom. As you drill, maintain a steady pressure and angle to ensure a clean hole. After drilling, use a masonry brush or a vacuum to remove any dust or debris from the hole, as this will help achieve a better hold for the anchor.
Step 3: Insert the Wedge Anchor
With the hole prepared, inserting the wedge anchor is next. Take your selected wedge anchor and carefully place it into the drilled hole, ensuring it is aligned with the markings you made earlier. Make sure the entire length of the anchor is inserted into the hole. It’s essential that the anchor is not crooked or misaligned, as this could compromise its holding strength. Depending on the type of wedge anchor you are using, you might need to lightly tap the anchor into place with a hammer, but be cautious not to damage the anchor or the surrounding concrete. Ensure the anchor is flush against the surface.
Step 4: Tighten the Anchor

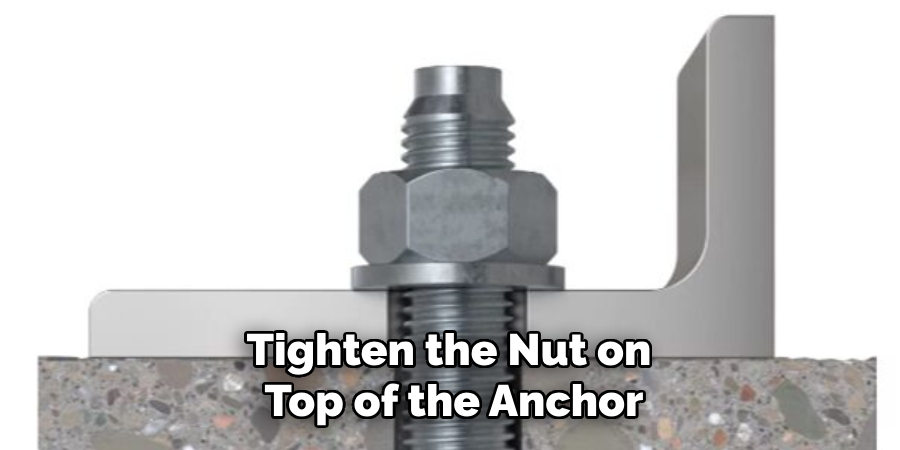

Once the wedge anchor is properly seated in the hole, use the wrench or socket set to tighten the nut on top of the anchor. As you turn the nut, the wedge at the bottom of the anchor will expand against the sides of the hole, creating a secure grip within the concrete. It is crucial to apply even pressure while tightening to avoid over-torquing, which could lead to anchor failure. You should feel resistance as the anchor sets, indicating a snug fit.
Step 5: Check for Secure Fit
After tightening the anchor, verifying that it has been installed securely is essential. Give the anchor a slight tug or shake to ensure it does not move or shift. There should be no noticeable wobble or looseness; if the anchor feels unstable, you may need to re-evaluate the installation. This step is crucial for securing the structure or fixture’s safety and integrity. Remove the anchor and repeat the installation steps, ensuring proper alignment and tightening throughout the process.
Step 6: Seal the Installation (Optional)
If desired, apply a sealant around the top of the wedge anchor after installation. This step is beneficial for outdoor applications or in areas exposed to moisture. Using a suitable waterproof sealant helps protect the anchor from environmental factors that could lead to corrosion or deterioration over time. Apply the sealant carefully around the base of the anchor, ensuring it fills any gaps between the anchor and the surrounding material, then smooth it out for a clean finish. Allow the sealant to cure fully per the manufacturer’s instructions before subjecting the anchor to any loads.
Step 7: Inspect the Anchor

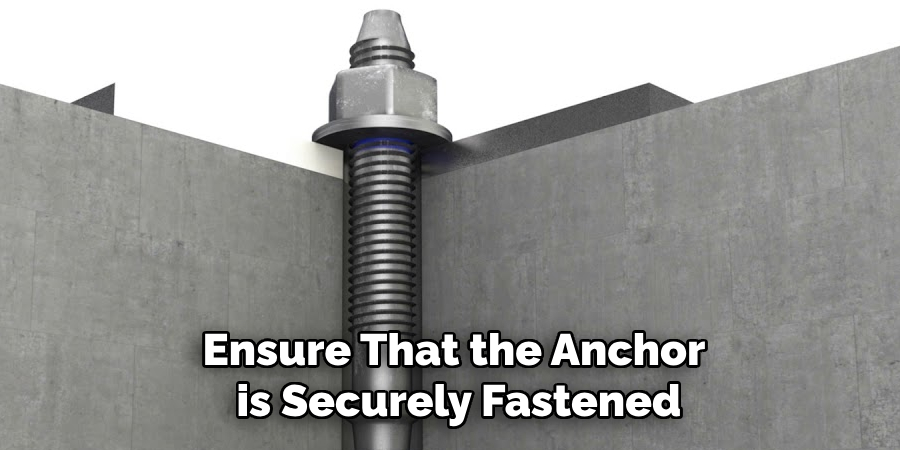

After the installation and sealing process, it’s essential to conduct a thorough inspection of the wedge anchor. Check for any visible signs of damage or misalignment. Ensure that the anchor is securely fastened and that the sealant, if applied, is adequately cured. It’s also advisable to review the surrounding area for any potential wear or deterioration that could affect the anchor’s performance over time. Regular inspections are vital in ensuring your installation’s long-term stability and safety, particularly in high-traffic or load-bearing applications.
Step 8: Load Testing the Anchor
Once you have installed and inspected the wedge anchor, it’s wise to perform a load test to ensure its effectiveness. This involves applying a gradual load to the anchored fixture or structure to confirm that the anchor can support the intended weight without any signs of slipping or failure. Start with a light load and gradually increase it while monitoring the anchor closely for any movement or instability. If the anchor holds firm under the expected load, it indicates a successful installation. However, if there are any issues, it may be necessary to revisit the installation steps or consider using a larger or different type of anchor.
Step 9: Finalize the Installation
After conducting the load test, it’s time to finalize the installation. Remove any temporary supports or fixtures that may have been used during the load testing process. Ensure that the area around the anchor is clean and free of debris. If applicable, install any additional components or fixtures the wedge anchor intends to support, confirming that they are aligned and secured correctly. Double-check that all nuts and bolts are tightened according to specifications, ensuring the overall stability of the installation. Finally, document the installation process, including any observations or adjustments made during the procedure, for future reference.
Step 10: Maintenance and Monitoring

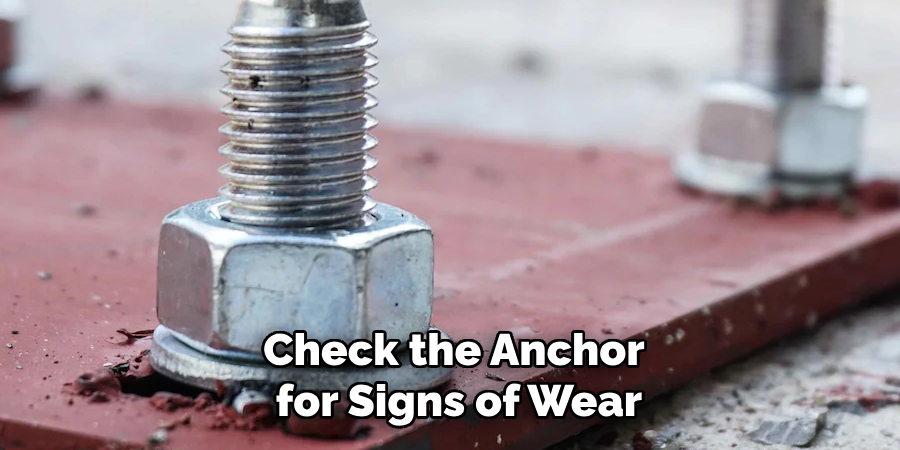

The last step is establishing a regular maintenance and monitoring schedule for the installed anchor. Periodically check the anchor for signs of wear, corrosion, or any movement, especially in high-stress or outdoor environments. It is advisable to inspect the anchor at least once a year or more frequently in areas subjected to severe weather or heavy loads. Keeping a log of these inspections can help track the anchor’s performance over time, making it easier to identify potential issues before they become critical.
By following these steps and conducting regular maintenance, you can ensure a successful wedge anchor installation that will provide long-lasting stability and support for your structure or fixture.
5 Precautions You Should Take
- Select the Right Size and Type: Ensure that the wedge anchor you choose is appropriate for the load requirements and the substrate’s material. Using the wrong size can lead to either failure under load or unnecessary difficulty during installation.
- Check for Obstructions: Before drilling, inspect the installation area for any hidden utilities, rebar, or other obstructions that may interfere with the anchor’s placement. Use a stud finder or metal detector to avoid damaging anything beneath the surface.
- Use Proper Personal Protective Equipment (PPE): Wear appropriate safety gear, gloves, goggles, and a dust mask while handling tools and working with concrete. This will help protect you from injury and provide additional safety during installation.
- Follow Manufacturer’s Instructions: Always adhere to the specific installation guidelines provided by the wedge anchor manufacturer. Each type of anchor may have different requirements for hole depth, diameter, and installation techniques critical to its performance.
- Avoid Over-Tightening: When tightening the anchor, apply steady and even pressure to avoid over-torquing, which can damage or fail the anchor. It’s important to monitor the anchor during tightening to ensure a secure fit without compromising structural integrity.
Conclusion
In conclusion, how to install a wedge anchor is crucial for ensuring the stability and safety of your structures or fixtures.
By following the outlined steps—from selecting the right size anchor and preparing the installation area to conducting thorough inspections and maintenance—you can significantly reduce the risk of failure under load. Remember that attention to detail at each stage of the installation process, including adhering to manufacturer guidelines and monitoring the anchor over time, contributes to the anchor’s long-lasting performance.
With proper technique and regular maintenance, a wedge anchor can provide reliable support for various applications, granting peace of mind for residential and commercial projects.
