Have you ever started drilling a screw hole only to have the screw head sink below the surface? It’s a frustrating situation that leaves your project looking sloppy. Countersinking helps prevent that by creating a conical depression in the hole that the screw head can sit flush within. However, drilling a proper countersink hole takes some practice to get it just right.
In this blog post, I’ll describe the basic steps and techniques for drilling accurate countersink holes using standard woodworking tools. Whether you’re assembling furniture, putting together outdoor projects, or installing hardware, taking the time to countersink your screw holes will make a big difference in the finished look and feel of your work. Let’s start with some tips on how to drill a countersink hole for success.
Necessary Items
Before we jump into the steps, let’s gather all the necessary items for drilling a countersink hole:
- Power drill with adjustable clutch
- Drill bits: a standard twist bit and a countersink bit
- Screws
- Workpiece (wood, metal, etc.)
- Clamps (optional)
10 Steps on How to Drill a Countersink Hole
Step 1: Choose the Correct Bits
The first step to drilling a countersink hole is choosing the right tools. You will need both a standard twist bit and a countersink bit. The standard twist bit will create the central hole for your screw, while the countersink bit will create the conical depression around it.
Step 2: Set Your Drill Clutch
Setting your drill clutch is an important step that often gets overlooked. The grip is a mechanism on the back of the drill that controls the torque or power used when drilling. By adjusting the clutch setting, you can control how deep your screw will sink into the material.
Step 3: Mark Your Hole Location
Using a pencil or marker, mark where you want your countersink hole to be. This will help guide your drilling and ensure accuracy. If you are drilling multiple fixes, making a template or using a jig to ensure consistent hole placement may be helpful.
Step 4: Secure Your Workpiece
Consider securing your workpiece with clamps before drilling if it is small and easily movable. This will prevent the piece from shifting while you’re working. If you’re working with a larger or heavier part, you may need to use a vise or have someone hold it in place for you.
Step 5: Drill the Main Hole
Using the standard twist bit, drill the central hole where you marked on your workpiece. Start slowly and apply steady pressure to avoid slipping or splintering the material. It’s essential to use the correct size bit for your screw to ensure a secure fit.
Step 6: Switch to the Countersink Bit
Once the central hole is drilled, switch out the standard twist bit for the countersink bit. Ensure the countersink bit is aligned correctly and set at a 90-degree angle to the workpiece. You can use a square or angle gauge to ensure accuracy.
Step 7: Adjust the Depth Stop on Your Drill
Most countersink bits come with an adjustable depth stop. This will determine how deep the conical depression will be. Experiment with different settings on scrap material to find the right depth for your project.
Step 8: Slowly Drill into the Hole
Start drilling with the countersink bit, keeping it straight and at a 90-degree angle. Apply light pressure and gradually increase speed as needed. Go slow to avoid any mistakes or damage to your workpiece.
Step 9: Test the Fit
Once the countersink hole is drilled, test the fit of your screw. The screw head should sit flush with the depression. If it doesn’t, you may need to adjust the depth stop or try again with a different clutch setting.
Step 10: Repeat for Multiple Holes
If you have multiple holes to drill, repeat the process until they are all completed. Remember to take your time and double-check each spot before moving on to the next one.
Drilling a countersink hole may seem simple, but it takes patience and practice to get it right. By following these ten steps and using the correct tools, you can achieve clean and professional-looking screw holes in your woodworking projects. So next time you’re working on a project that calls for screws, don’t forget to take the extra step of drilling a countersink hole for a polished and finished look.
8 Things to Avoid When Drilling Countersink Holes
Now that we’ve covered the steps for drilling a countersink hole let’s also discuss some common mistakes to avoid:
1. Using the Wrong Size Drill Bits
Using the wrong size drill bits can lead to a sloppy and unprofessional look. Make sure to use the correct size bit for your screw. If you need more clarification, test on a scrap piece of material first.
2. Forgetting to Set the Clutch
Forgetting to set the clutch can result in your screw sinking too deeply or not enough into the material. Take the time to adjust the grip for each hole to ensure consistency.
3. Not Marking Hole Locations
Marking your hole locations can lead to accurate and misaligned holes. Always take a moment to mark where you want your countersink hole to be before drilling.
4. Skipping the Main Hole
Skipping the central hole and only using the countersink bit will result in uneven and unstable screw placement. Make sure to start with a standard twist bit as the central hole for your screw.
5. Using Excessive Force
Using too much force when drilling can cause the bit to slip, resulting in damaged material and an inaccurate hole. Instead, apply steady and controlled pressure.
6. Neglecting to Test the Fit
Not testing the fit of your screw in the countersink hole before moving on can lead to issues down the line. Always double-check the fit before continuing.
7. Rushing Through the Process
Countersink hole drilling requires precision and attention to detail. Take your time with the process, or you may have uneven or crooked holes. Take your time and be patient.
8. Not Practicing on Scrap Material
If you’re new to drilling countersink holes, practicing scrap material before working on your actual project is always a good idea. This will help you understand the process and avoid any mistakes or mishaps.
6 Additional Tips for Drilling Countersink

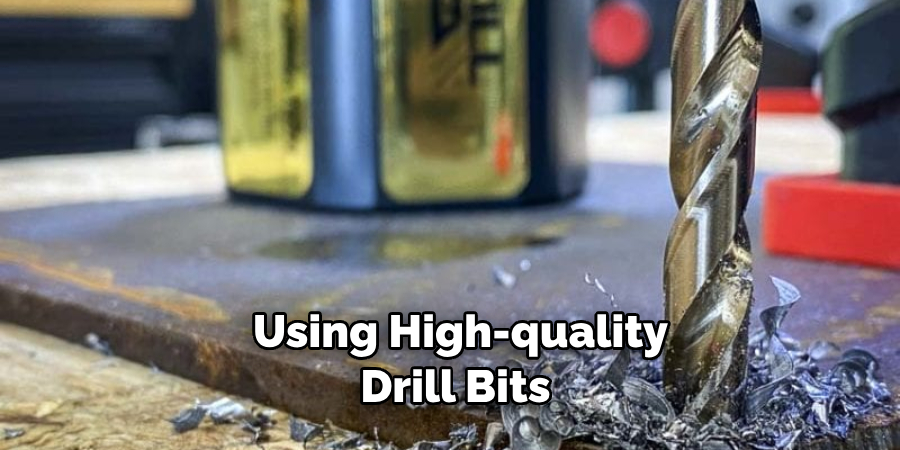

1. Invest in High-quality Drill Bits
Using high-quality drill bits will not only make the drilling process smoother, but it will also produce better results. Invest in good quality bits for a more professional finish.
2. Consider Using a Drill Press
While drilling countersink holes can be done with a handheld drill, a drill press can provide more stability and accuracy. It also allows for more effortless depth adjustment.
3. Use Support Blocks for Thin Material
Use support blocks under the workpiece to prevent splintering or damage if working with thin or delicate material.
4. Keep Your Drill Bits Sharp
Drill bits can become dull over time, resulting in less precise holes. Regularly sharpen or replace your drill bits for the best results.
5. Avoid Overheating the Drill Bit
Applying too much pressure or drilling at high speeds can cause the drill bit to overheat, leading to a shorter lifespan. Take breaks when needed and let the bit cool down before continuing.
6. Clean Up Any Debris
After drilling your countersink holes, clean up any debris or wood shavings left behind. This will prevent them from getting in the way of your next spot and keep your workspace tidy.
Frequently Asked Questions on Countersink Hole Drilling
Do I Need to Use a Countersink Bit, or Can I Use a Regular Twist Bit?
While you can technically use a regular twist bit for countersink holes, using a specialized one will give you a cleaner and more precise result.
Can I Drill a Countersink Hole Without a Depth Stop?
Yes, you can manually adjust the depth of your countersink hole by carefully controlling the pressure and speed of your drill. However, using a depth stop provides more accuracy and consistency.
How Deep Should I Make My Countersink Hole?
The depth of your countersink hole will depend on the length of your screw and the material you’re working with. As a general rule, aim for at least half the size of your screw.
Can I Use a Handheld Drill for Countersink Holes?
While using a handheld drill is possible, it’s recommended to use a drill press if available for better accuracy and control. However, a handheld drill can also produce good results with the proper technique and tools.
Conclusion
Drilling countersink holes may seem like a small detail in woodworking, but it can make all the difference in achieving a professional and polished look. By following these tips on how to drill a countersink hole and avoiding common mistakes, you can master the art of countersink hole drilling and elevate your woodworking projects.
Remember always to be patient, practice on scrap material first, and invest in good quality tools for the best results. So next time you’re working on a project that calls for screws, don’t forget to take the extra step of drilling a countersink hole before moving on to the next one.
