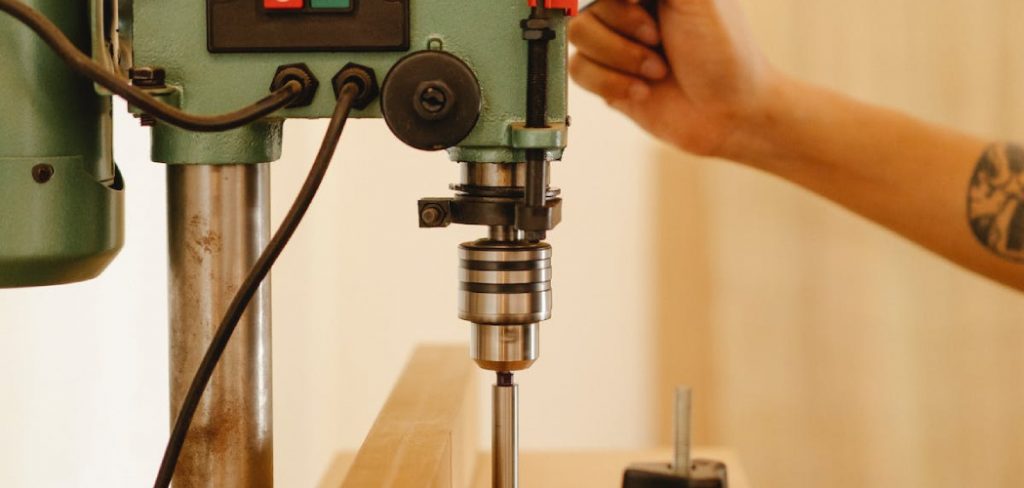

Do you need to bore a cylinder and don’t know where to start? Using a drill press is an effective way of machining precision holes in steel, wood, or other materials.
If you’re new to this kind of work, no worries – our step-by-step guide on how to bore a cylinder with a drill press will help you understand the process so that by the end of it you’ll be able to produce nicely rounded cylinders every time. With just a few simple tools such as clamps and center punches, anyone can easily master this technique for precise drilling operations!
Tools and Materials You Will Need to Bore a Cylinder With a Drill Press
- Drill Press
- Clamps
- Center Punch
- Drilling Bits (for metal and wood)
- Steel Ruler or Measuring Tape

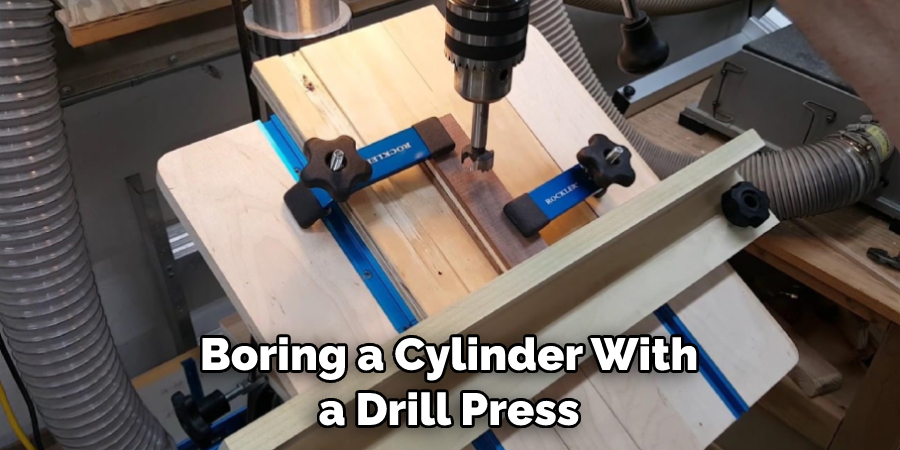

Step by Step Guidelines on How to Bore a Cylinder With a Drill Press
Step 1: Measure and Mark the Desired Bore Point
To determine where you will need to drill, use a steel ruler or measuring tape to measure from the edge of the piece and mark your bore point. Make sure the spot is centered and level with reference points on the top and bottom of the material. Measuring twice will ensure accuracy.

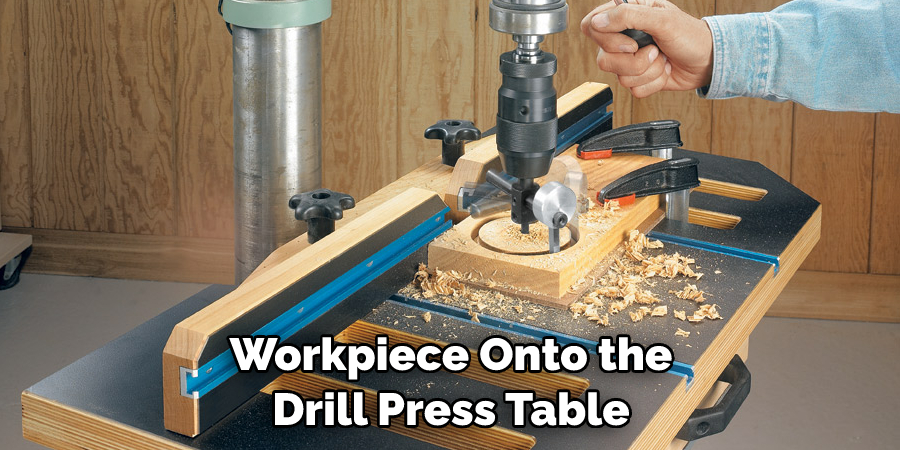

Step 2: Secure the Workpiece to the Drill Press Table
Securely clamp your workpiece onto the drill press table, making sure that all clamps are tightened. If you’re drilling through metal or another hard material, use a center punch to indent the bore point so that it won’t slip whilst drilling.
Step 3: Select the Appropriate Drilling Bit for Your Material Type
Choose the right size bit appropriate to your material type, whether it’s metal or wood. Make sure the bit is securely attached to the drill press and that its speed is set properly so that you don’t risk overheating or dulling the bit. Selecting the appropriate bit is important as it can make or break the precision of your hole.
Step 4: Make Sure the Drill Bit is Centered at the Bore Point
Before you begin drilling, make sure that the drill bit is centered directly over the bore point. If not, adjust it until it is properly aligned. This will ensure a clean and precise hole in your workpiece. This will also help you avoid any misaligned drilling and reduce the risk of damaging your workpiece.
Step 5: Begin Drilling Slowly and Carefully
Once you’ve double-checked all of your measurements, begin drilling slowly. This is especially important for hard materials like metal and other tough surfaces as too much pressure can cause the bit to overheat or slip out of alignment. Keep a steady hand whilst drilling to ensure that the bit doesn’t wander away from your bore point.
Step 6: Remove the Drill Bit and Check Your Results
Once you have finished drilling, carefully remove the drill bit and check your work. If everything looks good and the hole is centered and of a consistent shape, then you’ve done a successful job in how to bore a cylinder with a drill press.
With these steps, you now know how to use a drill press to quickly and accurately bore cylinders in steel or wood. Follow the instructions carefully and you’ll be producing precision holes in no time! Happy drilling!
Additional Tips and Tricks to Bore a Cylinder With a Drill Press
1. Mark the area to be bored with a pencil and ruler, and then use a center punch to create an indentation for your drill bit. This will prevent it from slipping when drilling into the material.
2. Securely clamp the workpiece to the drill press table using a vise or clamps. Make sure it is stable and that the area to be bored is in line with the drill bit.

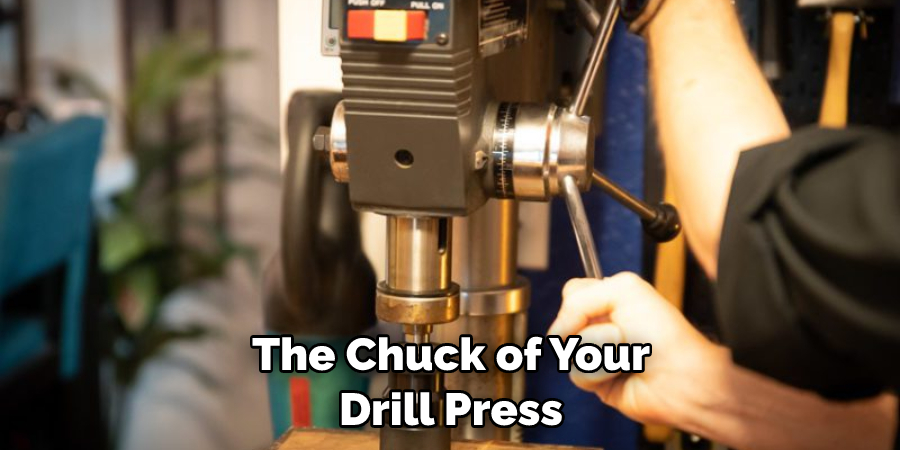

3. Assemble the correct-sized drill bit onto the chuck of your drill press. Use a sharp bit designed for metalworking, such as an HSS (High-Speed Steel) bit or a carbide-tipped one.
4. Set the right speed for your drill bit. Use a slow speed for larger-diameter bits and a faster speed for smaller ones. Start at the lowest available speed or slower if necessary.
5. Drill slowly and evenly in short bursts until you reach the desired depth. Remember to back off from time to time to prevent overheating of the bit, and use cutting oil or coolant to keep it from getting too hot.
6. If you need to bore a hole that’s larger than your drill bit, try using an adjustable boring bar or a reamer. The former is useful for creating small-diameter holes, while the latter can be used to enlarge existing ones.
7. Lastly, it’s important to keep your drill press clean and well-maintained in order to ensure the best results. After every use, wipe down the table and bit, and check for worn or damaged parts that need replacing or repairing. This will help ensure a smooth cut each time you bore into the material.
With these tips and tricks, boring a cylinder with a drill press will be easier than ever before! Remember to take your time, use the correct tools and supplies, and maintain your drill press for optimal performance each time you bore.
Things You Should Consider While Boring a Cylinder With a Drill Press
1. Choose the right drill press for your particular project. It’s important to select a heavy-duty model that can handle the material you are boring into, as well as its thickness and diameter.
2. Make sure the drill press is properly set up before beginning your project. This includes ensuring that all safety guards are in place and your work area is free of debris or materials that could get caught up in the drill bits.
3. Use a center punch to make an indentation at the exact location you would like to bore in the cylinder. This will help guide the bit while drilling and minimize any errors.
4. Choose a drill bit with the correct size and shape for the hole you intend to make. Make sure it is securely mounted in the chuck of your drill press before beginning.
5. Begin drilling slowly, using a steady pressure that gradually increases as the bit cuts into the material.
6. Feed the workpiece slowly into the bit to avoid jamming, and use the center punch as a guide.
7. Once you have reached the desired depth of your hole, stop drilling and remove any debris or burrs from the surface with a file.
8. Finally, inspect your work carefully to make sure that it meets your specifications and that there are no defects in the finished product.
With these considerations in mind, you can ensure that your work is done correctly and safely when boring a cylinder with a drill press. Take the time to prepare properly and use the right tools for the job to get great results. With practice, you will soon become an expert at this task!
Frequently Asked Questions
What is the Best Way to Bore a Cylinder With a Drill Press?
The best way to bore a cylinder with a drill press is to first measure the size of the cylinder and then select the appropriate drill bit for that size. Once you’ve selected the correct drill bit, secure the workpiece in your drill press with a vise or clamps.
Then, set the depth of the drill bit to match the length of the cylinder and use cutting oil to lubricate the bit as it drills. Finally, start drilling at a slow speed and gradually increase it until you’ve bored through the entire cylinder.
What are Some Tips for Boring a Cylinder With a Drill Press?
Make sure to use the right drill bit for your job, as using the wrong bit can result in inaccurate holes and damage to the workpiece. Additionally, you should always use cutting oil when drilling to ensure smooth operation and prevent overheating of the drill bit.
It’s also important to keep the drill bit at a constant depth and speed; if you have to stop and start again, it’s best to reset the drill bit before continuing. Finally, be sure to wear safety glasses when using a drill press, as chips and other debris can fly during operation.
What are Some Common Mistakes When Boring a Cylinder With a Drill Press?
One of the most common mistakes when boring a cylinder with a drill press is using the wrong drill bit. If you use the wrong drill bit, it can either result in an incorrectly sized hole or cause damage to the workpiece.
Another common mistake is not using enough cutting oil during operation, which can lead to the drill bit overheating. Additionally, failing to reset the drill bit to the correct depth before starting again can lead to an inaccurate bore. Finally, forgetting to wear safety glasses while drilling can put you at risk of injury from flying debris.
Conclusion
Knowing how to bore a cylinder with a drill press is an important skill for anyone who works with metal and other hard materials. To ensure a successful bore, it’s essential to select the right drill bit, use cutting oil during operation, keep the drill bit at a constant speed and depth, and always wear safety glasses while drilling.
Keeping these tips in mind will help you avoid common mistakes such as using the wrong drill bit or forgetting to wear safety glasses while drilling. With practice, you’ll soon become an expert at boring cylinders with a drill press.
